DIMENSIONS ARE IN MM
☺
2
4
9
5
6
7
1
3
8
154.5
1872.0
425.0
WHERE USED
7000TL
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
C
REPLACED 5900008 WITH 5900263, AND
5905693 WITH 5905824, ADDED 5905756,
UPDATED TITLE TO REFLECT MARKETING,
UPDATED BOM REVISION
12/23/2020
CA
01237
D
UPDATED BOM REVISION
01/20/2021
TM
01265
OBSO
REPLACED WITH 5216101
11/11/2021
TM
01362
E
UNOBSOLETE FOR PRODUCTION, REPLACED
LABELS WITH COLORS & GRAPHICS NOTE,
UPDATED BOM REVISIONS
03/14/2022
CA
01402
ITEM NO
PART
NUMBER
DESCRIPTION
QTY
REV
1 5910009
7000TL PACKAGING BOTTOM BOX
1
C
2 5215919
7000TL FRAME ASSEMBLY, L.H.
1
E
3 5601108
QUICKJACK HANDLE WELDMENT
1
D
4 5930189
6000ELX/7000TL FRONT BOTTOM STYROFOAM
PACKAGING
1
C
5 5930188
6000ELX/7000TL REAR BOTTOM STYROFOAM
PACKAGING
1
B
6 5930191
6000ELX/7000TL TOP STYROFOAM PACKAGING
2
B
7 5910001
PACKAGING TOP BOX; 7000TL BOX 1-LEFT,
ENGLISH-FRENCH
1
C
8 5940059
PLYWOOD INSERT, 1832 x 345 x 6mm
2
B
9 5930575
.50" PLASTIC STRAPPING
10
-
-
5900263
QUICKJACK TL/TLX/ELX MANUAL, ENGLISH-FRENCH
1
-
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE

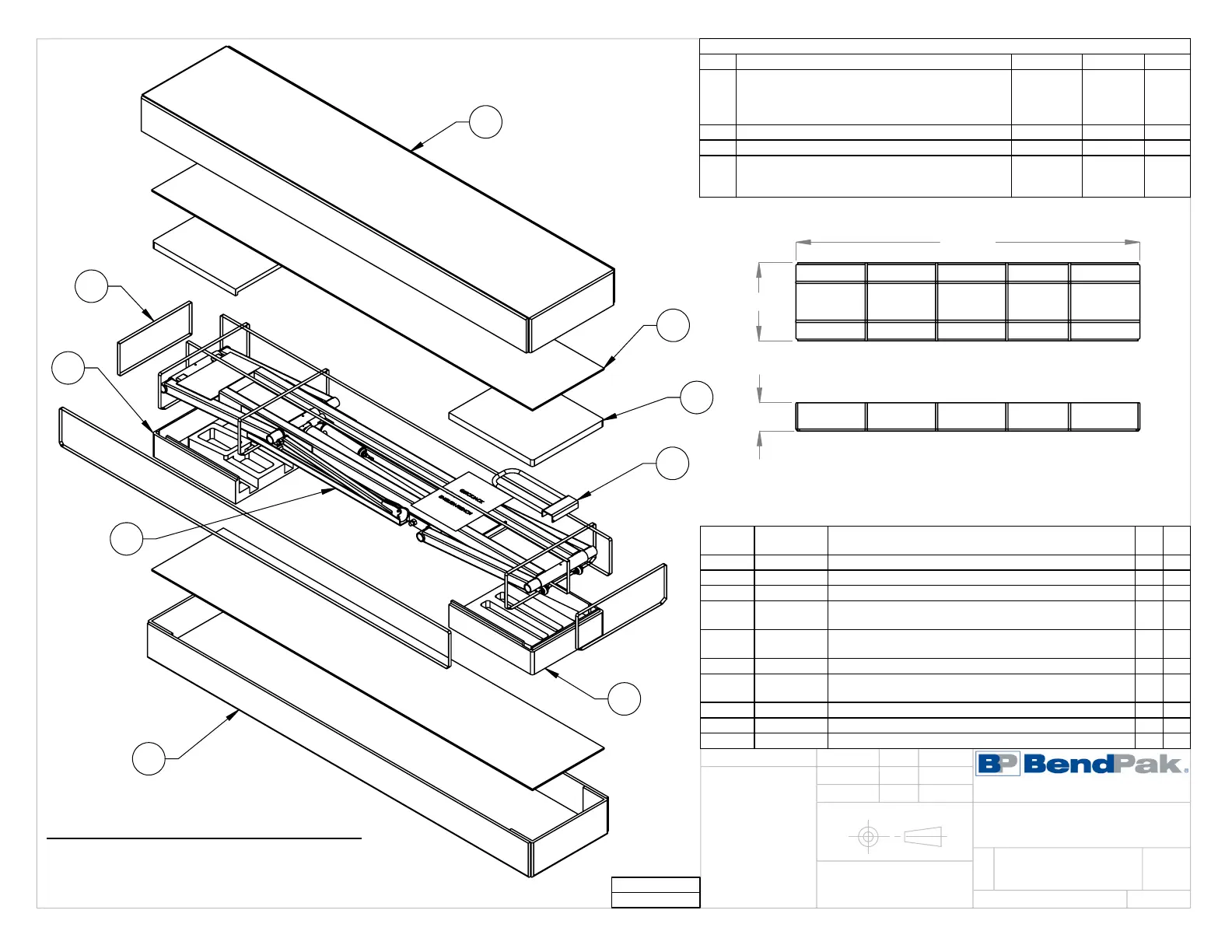

TITLE:
NAME
DATE
CHECKED
DRAWN
E
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
TM
5215929
7000TL VER E
PACKAGING, BOX 1
ENGLISH-FRENCH
04/17/2020
DO NOT SCALE DRAWING
1:15
SCALE:
THIRD ANGLE PROJECTION
REFER TO MODEL FOR ADDITIONAL INFORMATION
1.
SEE COLORS & GRAPHICS FOR LABEL PLACEMENT
2.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
3.
ASSEMBLE ITEMS AS SHOWN
4.
