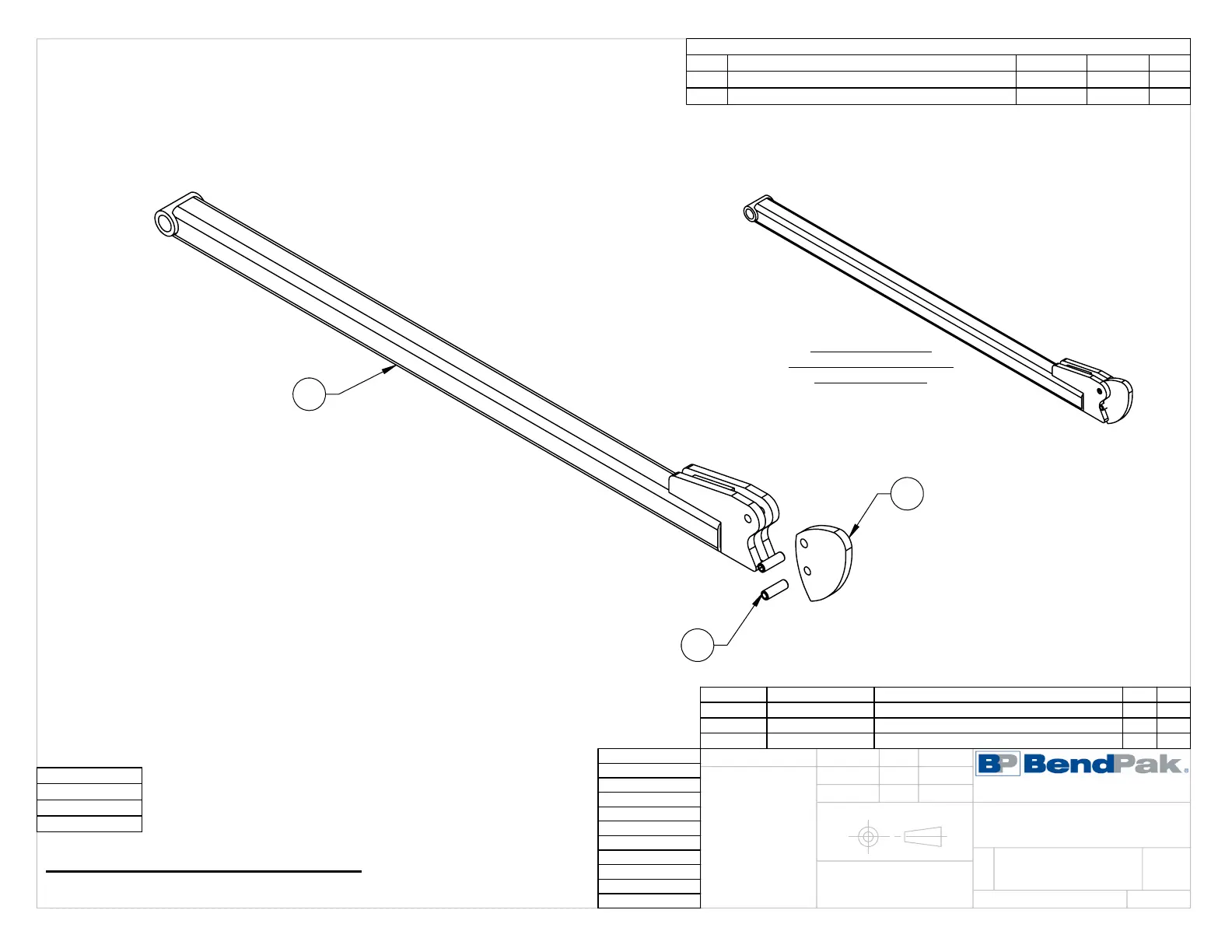

QuickJack 7000TL - 5215918; Sheet1; Drawing View1; Drawing View2

DIMENSIONS ARE IN MM
☺
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
1
2
3
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE, DERIVED FROM 5215244 04/06/2020 TM 01159
B UPDATED BOM REVISION 10/26/2020 TM 01222
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5601476 QUICKJACK SAFETY ARM WELDMENT 1 B
2 5736887 QUICKJACK SAFETY LATCH 1 B
3 5505028 SPRING PIN M6 x 20 2 -
WHERE USED
5000TL SERIES
6000ELX
7000TL SERIES
NEXT ASSEMBLY
5215919
5215920
5215921
5215922
5215923
5215924
5215925
5215926
5215937
5215950
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
B
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5215918
QUICKJACK SAFETY
BAR ASSEMBLY
04/06/2020
DO NOT SCALE DRAWING
1:3
SCALE:
THIRD ANGLE PROJECTION
OR 11/06/2020
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
ASSEMBLE ITEMS AS SHOWN 2.
