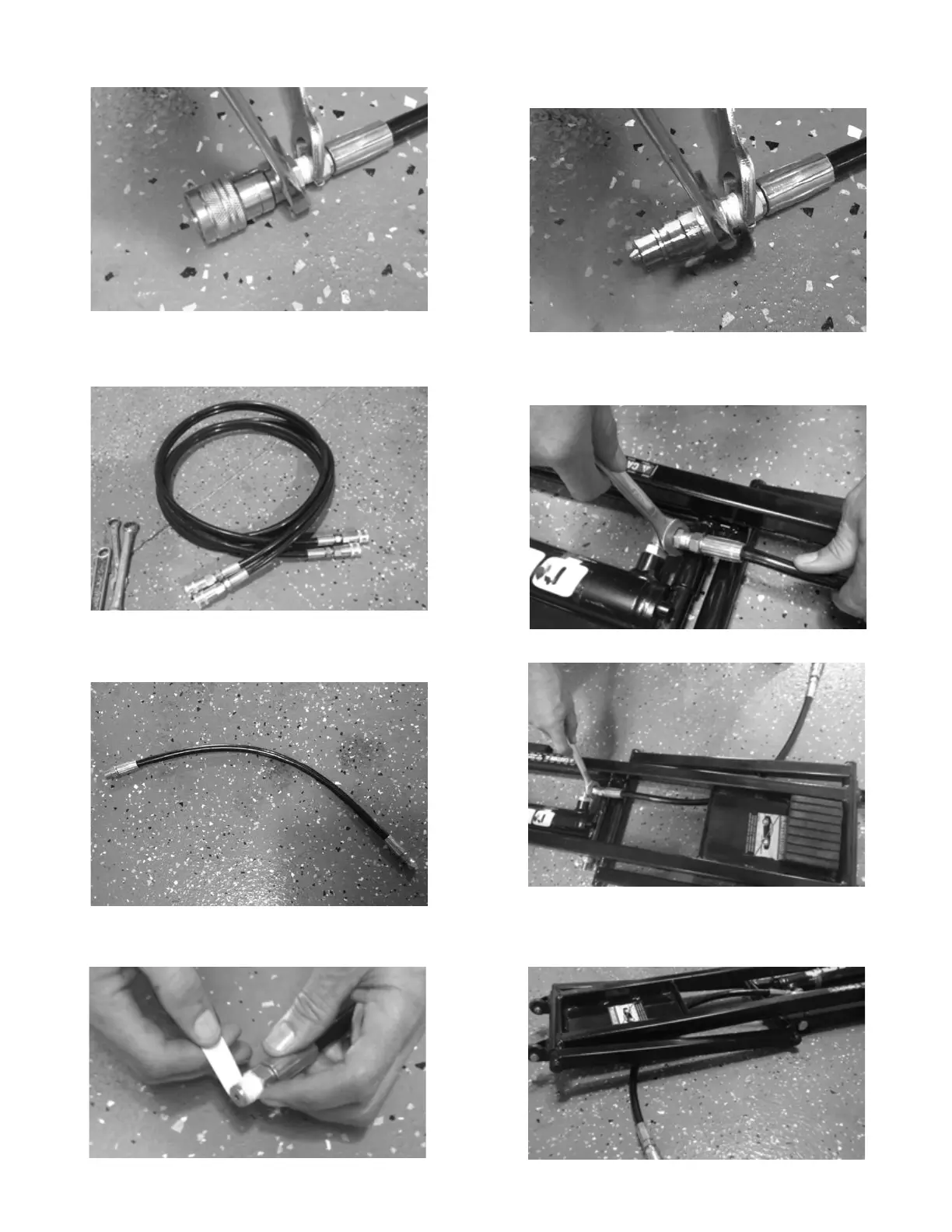

4. Securely tighten female fitting as shown below.
5. Repeat same procedure for ALL four hose ends, as
shown in the image below.
6. Locate both Short Leader Hoses and remove
protective caps from threaded fittings.
7. Wrap threaded ends with Teflon tape at least three
times. Tape should be wrapped in direction shown below.
8. Locate the two remaining male quick-connect fittings
and attach to Short Leader Hoses as shown below.
9. Connect both Short Leader Hoses to each hydraulic
cylinder.
10. Route Short Leader Hoses under frame ends making
sure they are clear from any pinch points.
