QuickJack BL-3500 - Parts Inventory; Specifications

7
MODEL BL-3500 BL-5000
Lifting Capacity per Pair 3,500 Lbs. / 1588 Kg. 5,000 Lbs. / 2268 Kg.
Frame Length (Overall): 61.5" / 1562 mm. 69" / 1753mm
Frame Width: 10.5" / 267 mm. 11.25" / 286 mm.
Rubber Lift Block Position Min.: 28.75" / 730 mm. 35.5" / 902 mm.
Rubber Lift Block Position Max.: 43.75" / 1111 mm. 50.5" / 1283 mm.
Platform Lifting Height (Frame Only): 16.75” / 425 mm. 18.5” / 470 mm.
Platform Lifting Height (with Rubber Lift Blocks): 20” / 508 mm. 22” / 559 mm.
Minimum Collapsed Height: 3” / 76 mm. 3” / 76 mm.
Standard Motor(*) 110VAC / 60 Hz 1Ph 110VAC / 60 Hz 1Ph
* Optional 12-Volt DC Motor available.
The design, material and specications are subject to change without notice.
BL-3500 & BL-5000 PARTS INVENTORY
Be sure to take a complete inventory of parts prior to beginning installation.
DESCRIPTION QTY
Frame Assemblies 2
Power Unit with Carrier 1
Quick Connect Twin Hose Assembly 1
Quick Connect Hoses 2
Rubber Lift Blocks 8
Frame Handles 2
Parts Box (Packing List Enclosed) 1

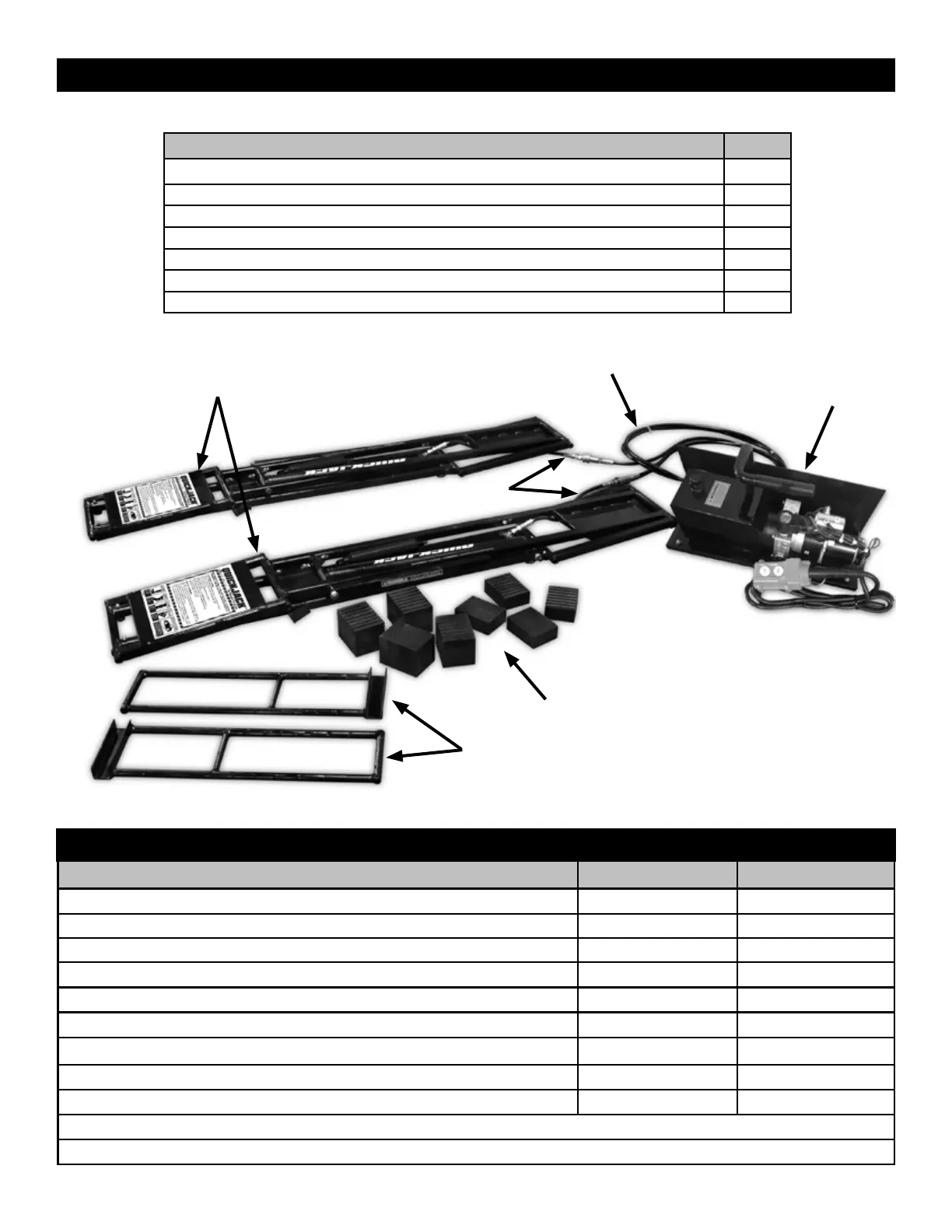

Frame
Assemblies
Power Unit with
Carrier
Twin Hose Assembly
Short Leader
Hoses
Rubber Lift Blocks
Quick Frame
Handles
SPECIFICATIONS
