BL-5000XL PARTS INVENTORY
Be sure to take a complete inventory of parts prior to beginning installation.
DESCRIPTION QTY
Frame Assemblies 2
Power Unit with Carrier 1
Quick Connect Twin Hose Assembly 1
Quick Connect Hoses 2
Rubber Lift Blocks 8
Frame Handles 2
Parts Box (Packing List Enclosed) 1
MODEL BL-5000XL
Lifting Capacity per Pair: 5,000 Lbs. / 2268 Kgs.
Frame Length (Overall): 71.5” / 1816 mm.
Frame Width: 11.25” / 286 mm.
Rubber Lift Block Position Min: 34” / 862 mm.
Rubber Lift Block Position Max: 60” / 1523 mm.
Platform Lifting Height (Frame Only): 17.5” / 447 mm.
Platform Lifting Height (w/ Lift Blocks): 21” / 533 mm.
Minimum Collapsed Height: 3” / 76 mm.
Standard Motor(*) 110VAC / 60 Hz 1 Ph
* Optional 12-Volt DC Motor available.
The design, material and specications are subject to change without notice.

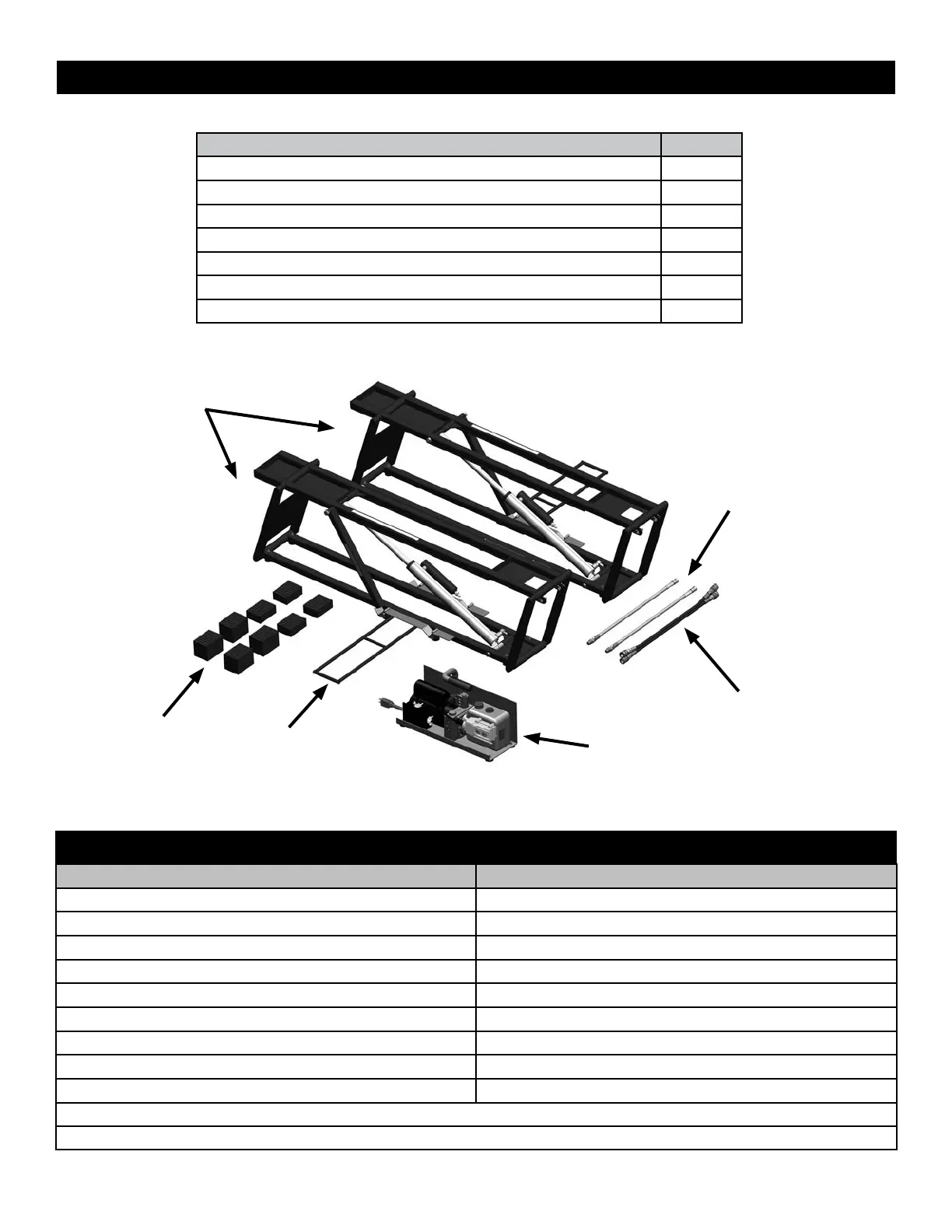

Rubber Lift Blocks
Power Unit with
Carrier
Twin Hose
Assembly
Quick Frame
Handles
Frame
Assemblies
Short Leader
Hoses
SPECIFICATIONS
