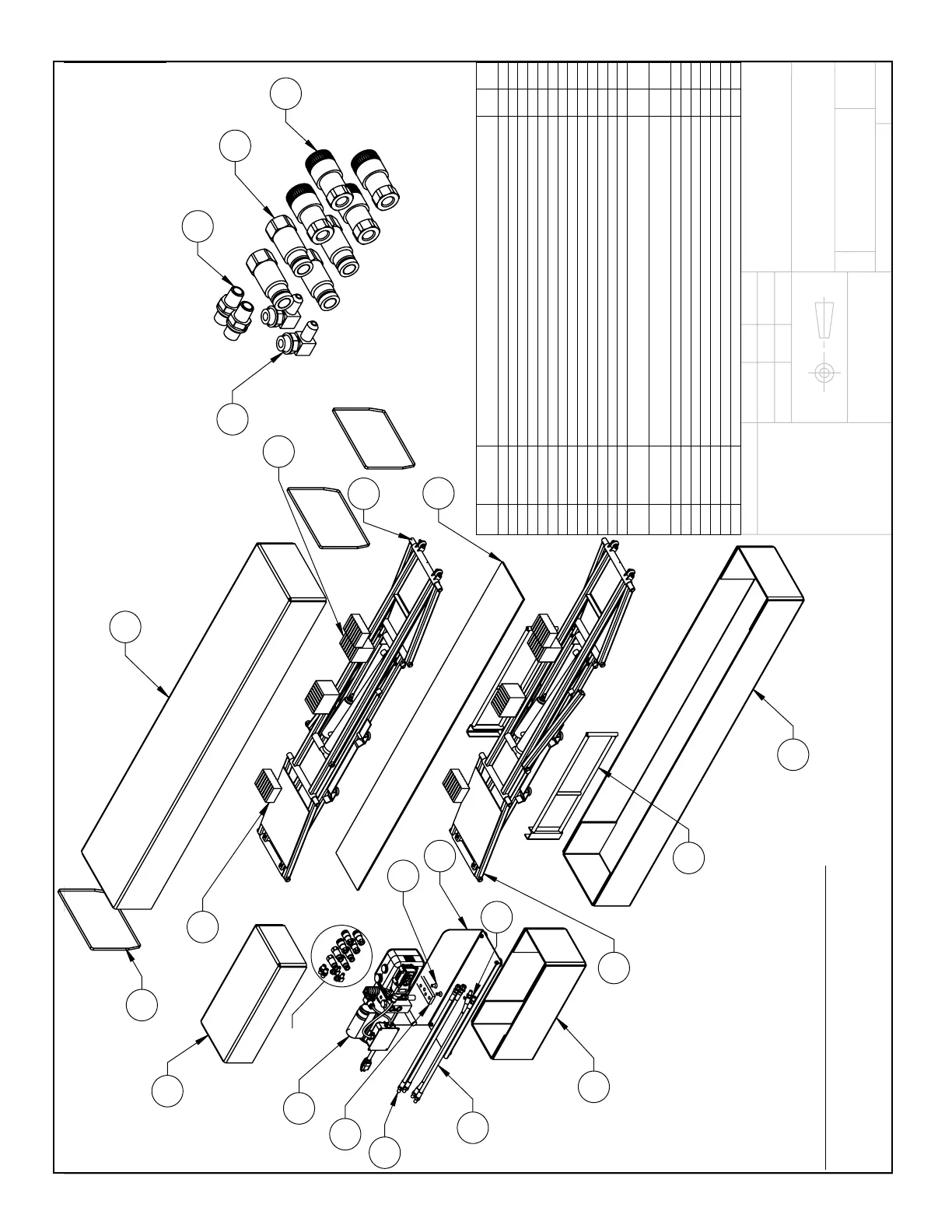

DIMENSIONS ARE IN MM
☺
A
6
7
2
4
1
8
10
9
11
5
3
12
13
17
20
18
22
21
DETAIL A
SCALE 1 : 4
15
14
16
19
ITEM
NO
PART
NUMBER
DESCRIPTION
QTY
REV
1 5781288
BL-3500 BOX BOTTOM
1
B
2 5215651
BL-3500 FRAME ASSEMBLY, R.H.
1
B
3 5215652
BL-3500 FRAME ASSEMBLY, L.H.
1
B
4 5781290
BL-3500 BOX MIDDLE SHEET
1
A
5 5781289
BL-3500 BOX TOP
1
B
6 5300860
BL SERIES 38mm (1.5") RUBBER PAD
4
B
7 5300865
BL SERIES 75mm (3") RUBBER PAD
4
B
8 5600725
BL SERIES HANDLE WELDMENT
2
C
9 5215578
BL SERIES PUMP CARRIER ASSEMBLY
1
E
10 5781291
BL-3500 POWER UNIT CARRIER, BOTTOM
1
B
11 5781292
BL-3500 POWER UNIT CARRIER, TOP
1
B
12 5570203
BL SERIES TWIN HOSE ASSEMBLY Ø6.4 x 3810mm
1
C
13 5570202
BL SERIES HOSE ASSEMBLY Ø6.4 x 603mm
2
B
14 5550031
FTG NPL-04 NPT F x 1/4 QUICK-CONNECTOR COUPLER
FEMALE; NON SPILL DESIGN
4
-
15 5550032
FTG NPL-04 NPT FX1/4 QUICK-CONNECTOR COUPLER
MALE; NON SPILL DESIGN
4
-
16 5550103
FTG ELB -04 JIC -06 ORB
2
-
17 5585426
110V AC POWER UNIT
1
-
18 5530262
HHB 3/8-16 x 1/2"
2
-
19 5550093
FTG NPL -06 ORB x -04 NPT
2
-
20 5930575
.50" PLASTIC STRAPPING
3
-
21 5736018
WUXI POWER UNIT ADAPTER; BL SERIES
1
-
22 5530783
FHPS 3/8-16 x .75
2
-
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
B
REPLACED 5215575 WITH 5215651, REPLACED
5215577 WITH 5215652, UPDATED BOM REVISION
02/12/2014
TM
00633
C
UPDATED BOM REVISION
03/06/2014
DB
00644
D
REPLACED 5550065 WITH 5550032, 5550075 WITH
5550031, ADDED 5736018 & 5530783, UPDATED
BOM REVISIONS
10/22/2014
TM
00655
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
D
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
TM
5215626
BL-3500 PACKAGING
07/15/2013
DO NOT SCALE DRAWING
1:16
SCALE:
THIRD ANGLE PROJECTION
TM
10/22/2014
ASSEMBLE ITEMS AS SHOWN
1.
HOSES SHOWN IN REPRESENTATIONAL FORM
2.
COIL HOSES INSIDE 5215578
3.
ADD FITTINGS TO PLASTIC BAG AND SECURE INSIDE 5215578
4.
