Quicksilver 88688A23 User Manual

Port Side Control
Module Cable Installation
(Outboard Models
250 HP
3.4 Litre and Above)
The control cables in the starboard side module are
installed differently than those in the port side module,
therefore, the back cover of each control has been
stamped “PORT” or “STBD.”
ACAUTI~N
Before tightening cable fastener locknut, be sure that
pin (on end of cable fastener) is completely thru cable
end and shift/throttle lever. A pin, which is partially
thru cable and lever, may cause fastener to bend when
locknut is tightened.

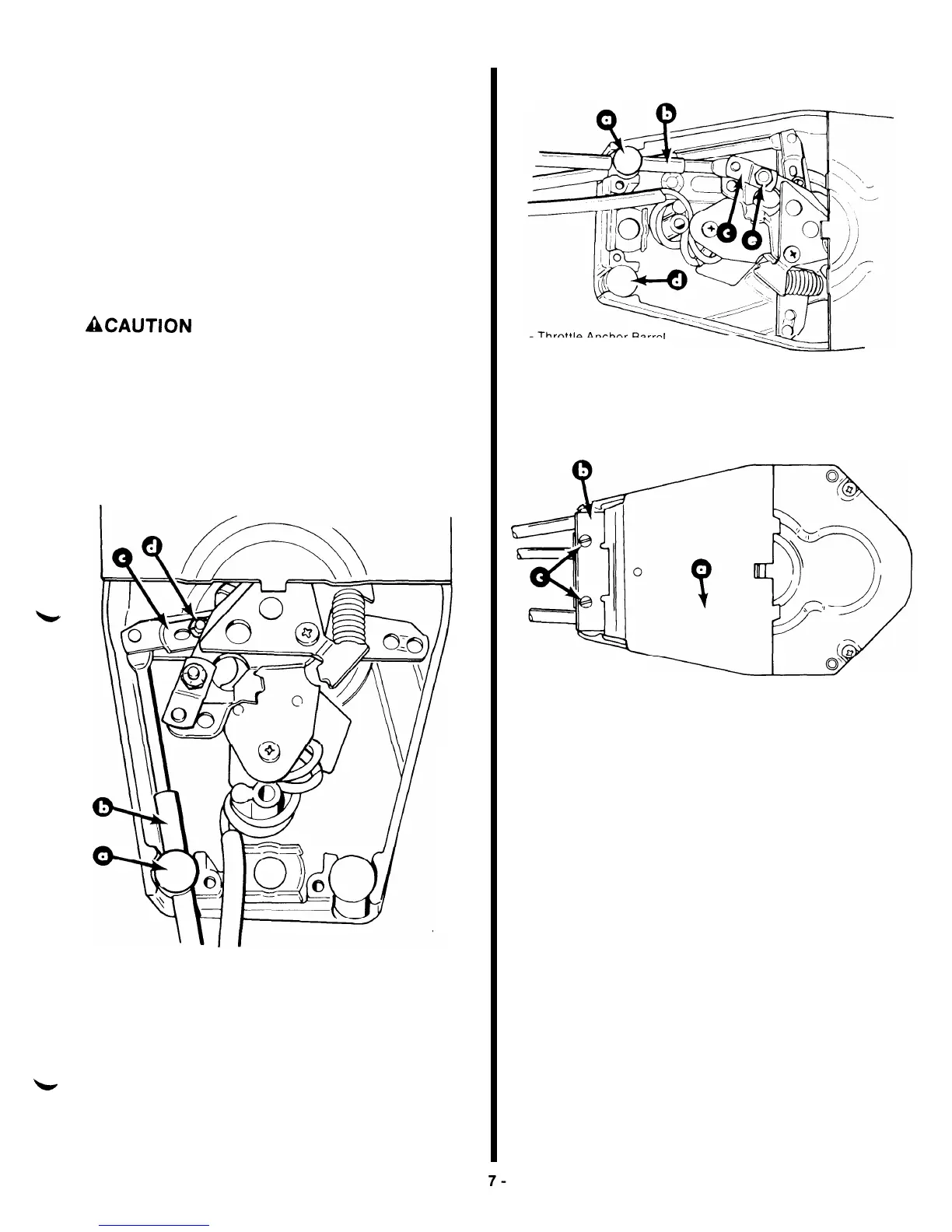

Shift Cable
50120
a - Shift Anchor Barrel
b
- Shift Cable
c
- Cable Fastener
d
- Cable Fastener Locknut
IMPORTANT: Cable fastener (c) must be relocated to
position as shown.
Torque shift cable fastener locknut to 20 to 25 Ibs. in.
(2.3 to 2.8 N.m.)
Throttle Cable
a- Throttle Anchor
Barrel
b
- Throttle Cable
c
- Cable Fastener
d
- Spacers (From Parts Bag)
e - Cable Fastener Locknut
50092
Torque throttle cable fastener locknut to 20 to 25 Ibs.
in. (2.3 to 2.8
N.m.)
a - Access Cover
b
- Cable Retainer
c - Screws
50030
Position access cover and cable retainer onto back
side of control and secure both to control with 2
screws. Torque access cover and cable retainer screws
to 60 Ibs. in. (7 N.m.)
