Quicksilver 675OP— Electrical Systems
32

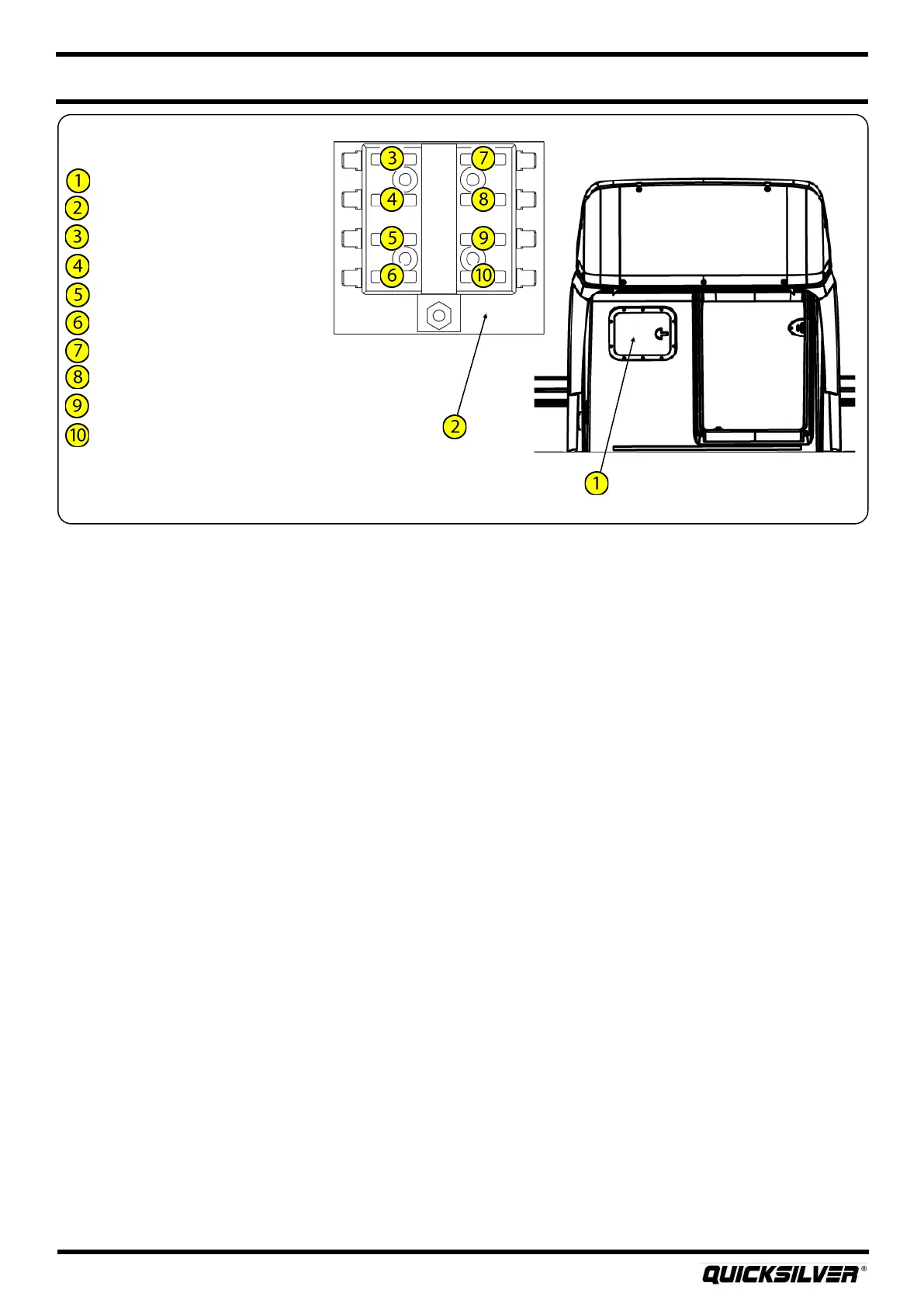

Helm Fuse Panel
Dash closeout panel
Helm fuse panel
Navigaon Lights — 5 Amp
Bilge Pump — 3 Amp
CO Monitor — 5 Amp
12V Receptacle — 10 Amp
GPS/Electronics — 5 Amp
Stereo — 10 Amp
Water Pump — 10 amp
Open/Spare — 5 Amp
6. Electrical Schemacs
This owner’s manual contains electrical schemacs and wiring harness illustraons for your boat.
These electrical schemacs were generated by the Electrical Engineering Department for technical
reference and service technicians. Quicksilver® does not recommend that you aempt to work on the
boat’s electrical system yourself. Instead, we recommend that you take your boat to your local
authorized Quicksilver® dealer for service. Quicksilver® reserves the right to change or update the
electrical system on any model at any me without noce to the consumer and is not obligated to
make any updates to units built prior to the change.
