WING FABRIC
ROOT END OF WING

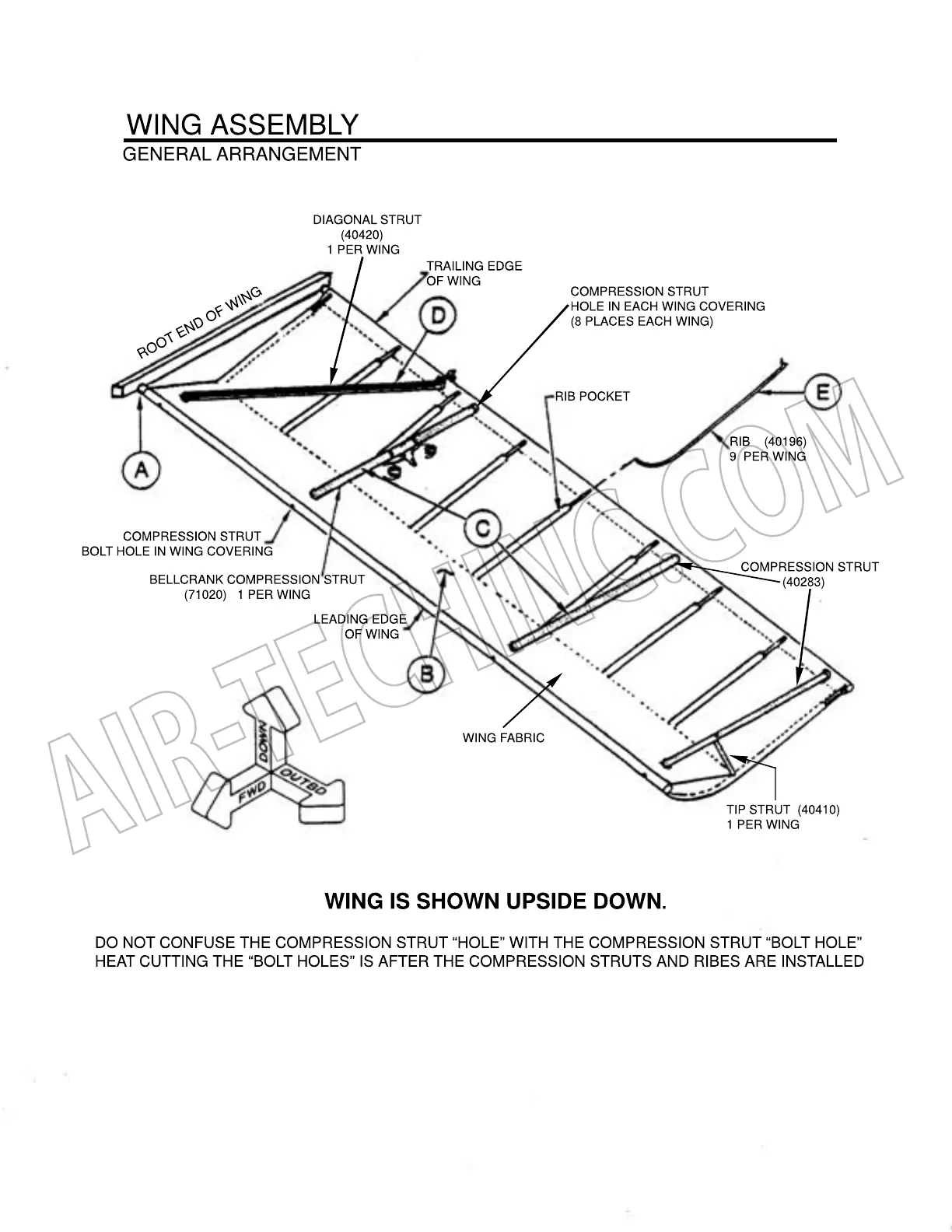

WING ASSEMBLY
RIB (40196)
9 PER WING
TIP STRUT (40410)
1 PER WING
COMPRESSION STRUT
(40283)
COMPRESSION STRUT
BOLT HOLE IN WING COVERING
RIB POCKET
BELLCRANK COMPRESSION STRUT
(71020) 1 PER WING
TRAILING EDGE
OF WING
DIAGONAL STRUT
(40420)
1 PER WING
WING IS SHOWN UPSIDE DOWN .
DO NOT CONFUSE THE COMPRESSION STRUT “HOLE” WITH THE COMPRESSION STRUT “BOLT HOLE”
HEAT CUTTING THE “BOLT HOLES” IS AFTER THE COMPRESSION STRUTS AND RIBES ARE INSTALLED
GENERAL ARRANGEMENT
COMPRESSION STRUT
HOLE IN EACH WING COVERING
(8 PLACES EACH WING)
LEADING EDGE
OF WING
Section 4
7
