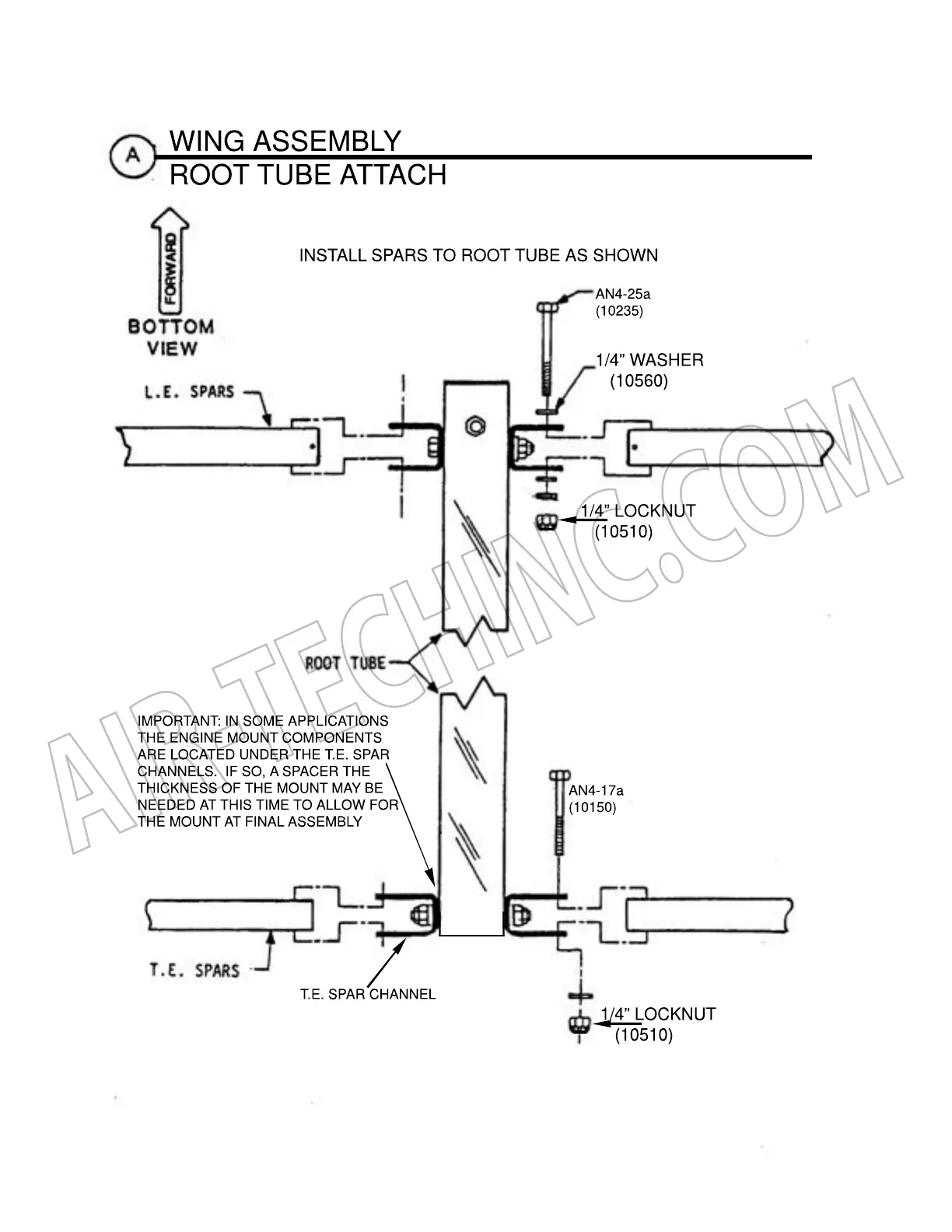

WING ASSEMBLY

ROOT TUBE ATTACH

T.E. SPAR CHANNEL

IMPORTANT: IN SOME APPLICATIONS

THE ENGINE MOUNT COMPONENTS

ARE LOCATED UNDER THE T.E. SPAR

CHANNELS. IF SO, A SPACER THE

THICKNESS OF THE MOUNT MAY BE

NEEDED AT THIS TIME TO ALLOW FOR

THE MOUN

THE MOUNT AT FINAL ASSEMBLY

1/4” LOCKNUT

(10510)

1/4” LOCKNUT

(10510)

INSTALL SPARS TO ROOT TUBE AS SHOWN

1/4” WASHER

(10560)

AN4-17a

(10150)

AN4-25a

(10235)

Section 4
