TRAILING EDGE
LEADING EDGE
CENTER THE LOCATOR HOLE OVER THE SCRIBES LINE. ALIGN THE ZIG-ZAG LINES
ON THE TEMPLATE OVER THE ZIG-ZAG SEWING ON THE COVER
MARK THE HOLE WITH A PENCIL
SCRIBE LINE
Locator Hole in Template
COMPRESSION STRUT
CUT OUT TEMPLATE
Hidden hole under
fabric. Do Not cut
out at this time !!

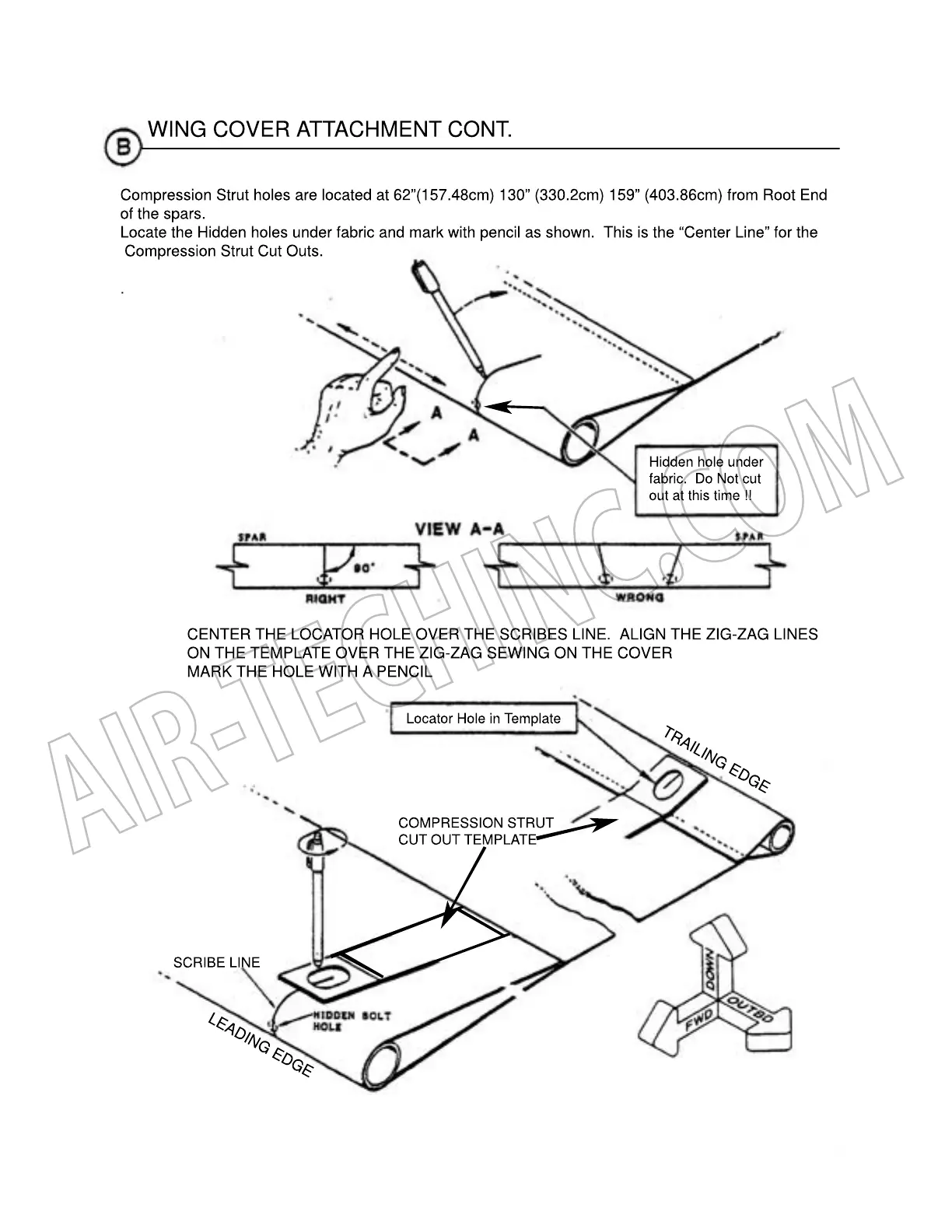

Compression Strut holes are located at 62”(157.48cm) 130” (330.2cm) 159” (403.86cm) from Root End
of the spars.
Locate the Hidden holes under fabric and mark with pencil as shown. This is the “Center Line” for the
Compression Strut Cut Outs.
.
WING COVER ATTACHMENT CONT.
