Quicksilver MX Sprint User Manual

Name: Quicksilver MX Sprint
Brand: Quicksilver
Rating: 4 (1 reviews)

124 pages

To Next Page

To Previous Page

3“

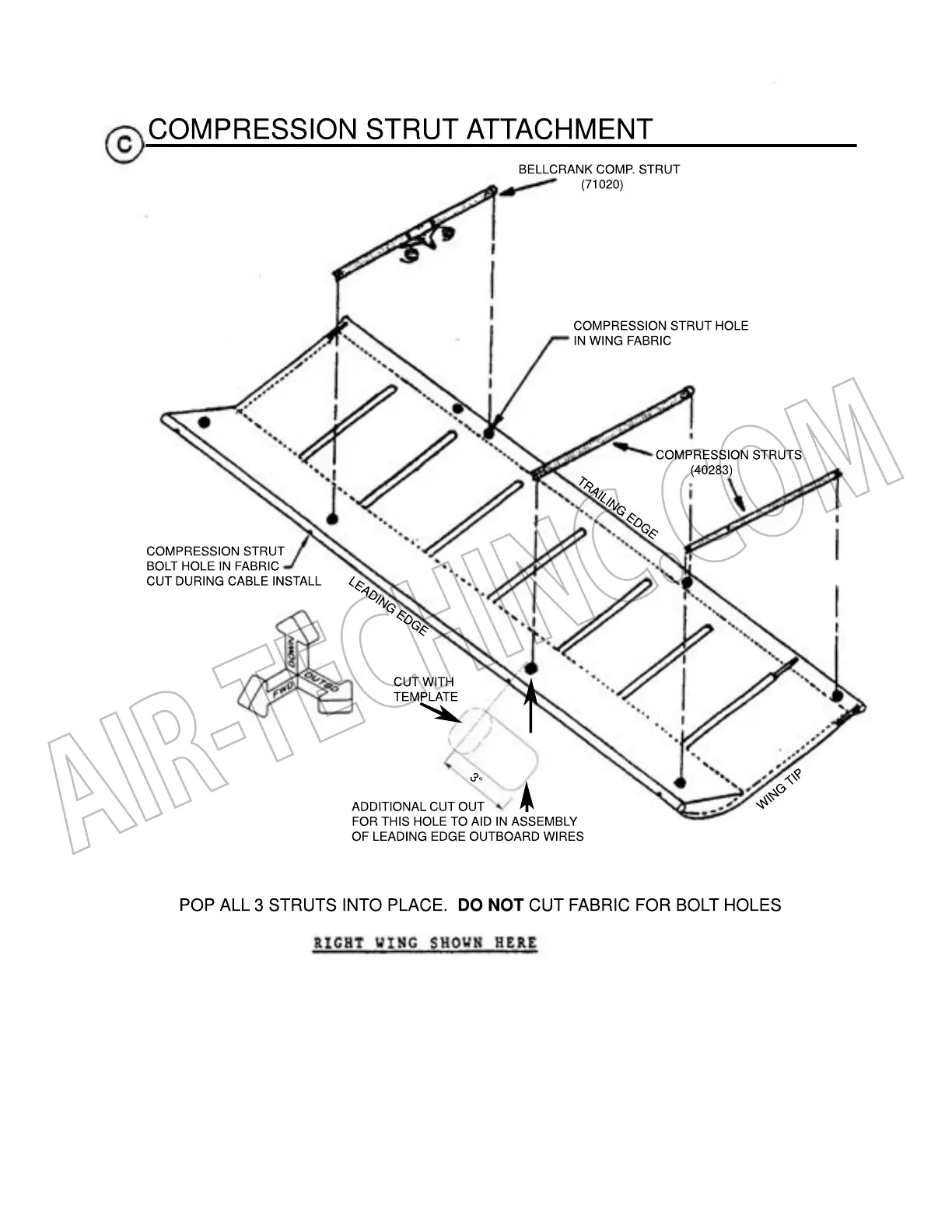

COMPRESSION STRUTS

(40283)

TRAILING EDGE

WING TIP

ADDITIONAL CUT OUT

FOR THIS HOLE TO AID IN ASSEMBLY

OF LEADING EDGE OUTBOARD WIRES

CUT WITH

TEMPLATE

POP ALL 3 STRUTS INTO PLACE. DO NOT CUT FABRIC FOR BOLT HOLES

LEADING EDGE

COMPRESSION STRUT

BOLT HOLE IN FABRIC

CUT DURING CABLE INSTALL

COMPRESSION STRUT HOLE

IN WING FABRIC

BELLCRANK COMP. STRUT

(71020)

COMPRESSION STRUT ATTACHMENT

Section 4

Air-Tech, Inc
