11
1-888-QUIETCOOL
5. Then, tie the black wire from the power source to the black wire from the timer.
6. Lastly, tie the copper ground wire from the power source to the copper ground wire from the timer.
4. SYSTEM OPERATING INSTRUCTIONS
4.1 QuietCool Smart Attic Fan
QuietCool Attic Fans work almost everywhere, almost anytime. During the summer, an attic can be 40-50
degrees hotter than the outside temperature, which in turn heats up the house much faster. With an attic fan,
you can cool the attic to the same temperature as it is outside, greatly reducing the house from heating as
quickly.
With the QuietCool Smart Attic Fan, gone are the days of having to adjust the thermostat for your attic fan.
Featuring a built-in thermostat and humidistat, the self-adjusting, 10-speed ECM motor is always reading the
temperature and humidity in the attic.
When the fan detects temperature over 80 degrees, or humidity over 60%, the Smart Attic Fan comes on at the
lowest speed. As the attic starts to heat up, the Smart Attic Fan automatically adjusts it’s speed.
Temp. 80° 85° 90° 95° 100° 105° 110° 115° 120° 125°+
Humidity 60%+ N/A N/A N/A N/A N/A N/A N/A N/A N/A
Speed 1 2 3 4 5 6 7 8 9 10
CFM 963 1343 1513 1641 1841 2014 2119 2356 2500 2830
Watts 15 18 25 34 49 60 79 99 117 145
*All specs are approximate. For the most up-to-date specs, please visit QuietCoolSystems.com

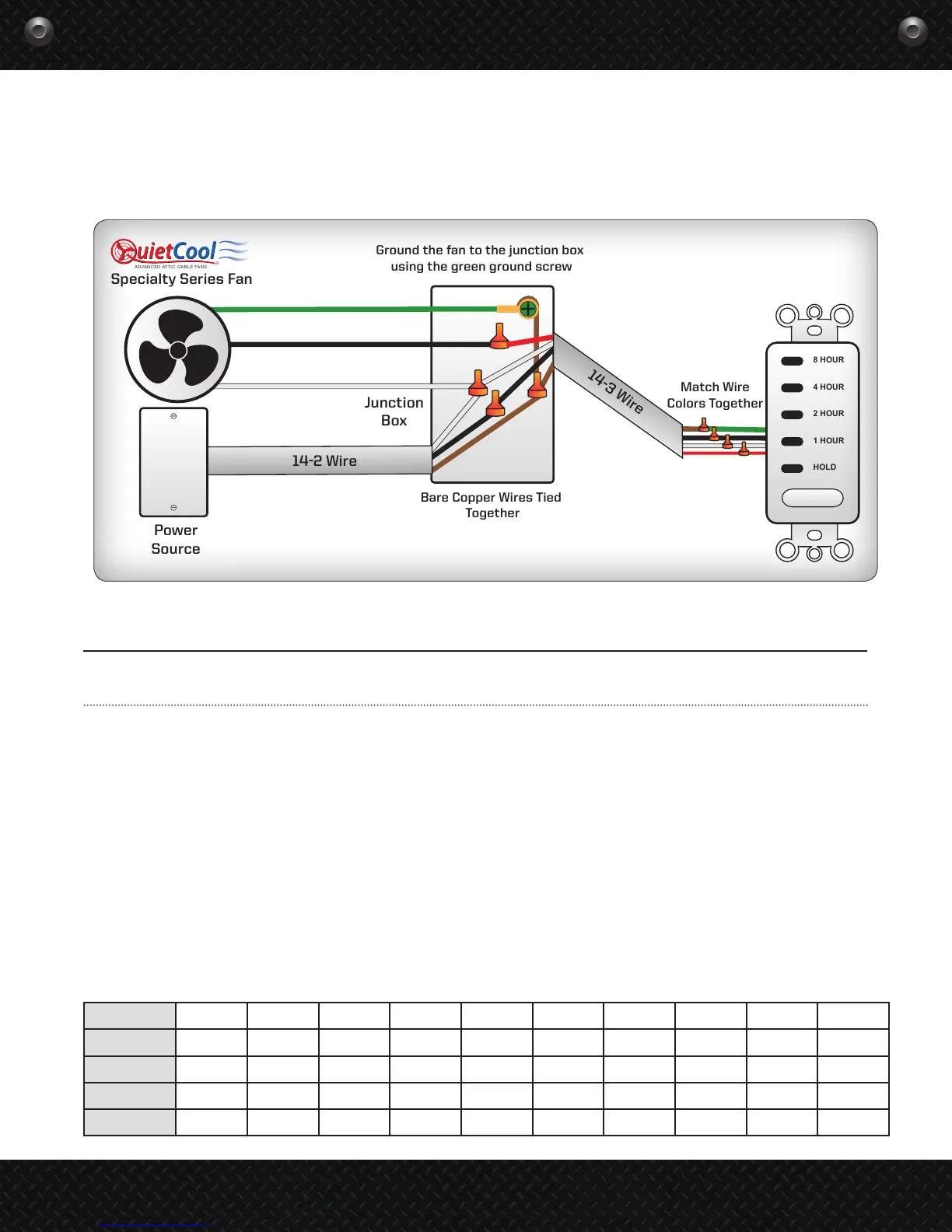

Figure 3.3A
Ground the fan to the junction box
using the green ground screw
Specialty Series Fan
Junction
Box
Power
Source
14-2 Wire
14-2 Wire
8 HOUR
4 HOUR
2 HOUR
1 HOUR
HOLD
Bare Copper Wires Tied
Together
Match Wire
Colors Together
14-3 Wire
ADVANCED ATTIC GABLE FANS
®
Ground the fan to the junction box
using the green ground screw
Specialty Series Fan
Junction
Box
Power
Source
14-2 Wire
14-2 Wire
8 HOUR
4 HOUR
2 HOUR
1 HOUR
HOLD
Bare Copper Wires Tied
Together
Match Wire
Colors Together
14-3 Wire
ADVANCED ATTIC GABLE FANS
®
