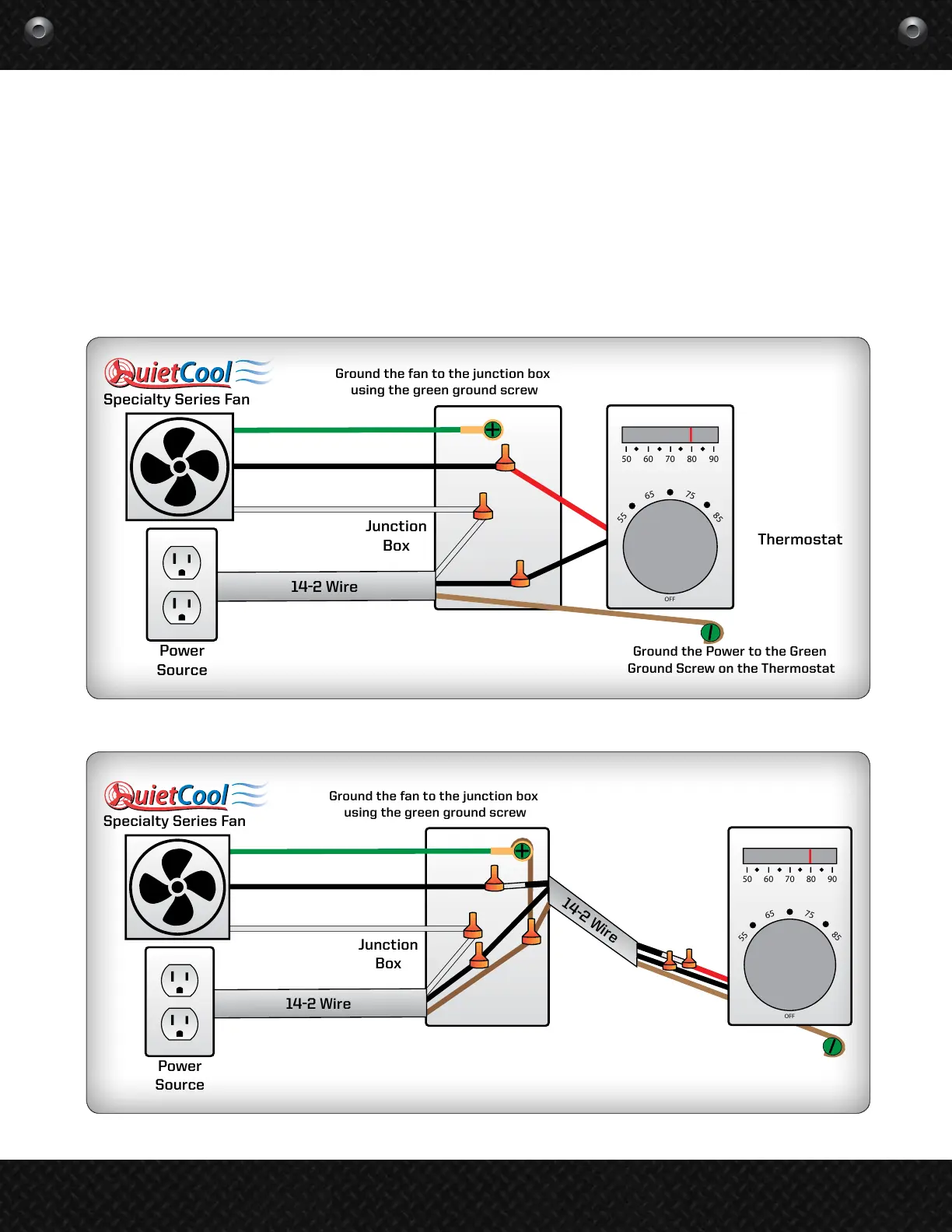

Figure 3.1A: Thermostat Wiring at the Junction Box
Ground the fan to the junction box
using the green ground screw
Specialty Series Fan
Junction
Box
Thermostat
Power
Source
Ground the Power to the Green
Ground Screw on the Thermostat
14-2 Wire
OFF
55
65
75
85
50 60 70 80 90
14-2 Wire
Ground the fan to the junction box
using the green ground screw
Specialty Series Fan
Junction
Box
Thermostat
Power
Source
Ground the Power to the Green
Ground Screw on the Thermostat
14-2 Wire
OFF
55
65
75
85
50 60 70 80 90
14-2 Wire
Figure 3.1B: Thermostat Wiring in a Remote Location
Ground the fan to the junction box
using the green ground screw
Specialty Series Fan
Junction
Box
Power
Source
14-2 Wire
OFF
55
65
75
85
50 60 70 80 90
14-2 Wire
14-2 Wire
Ground the fan to the junction box
using the green ground screw
Specialty Series Fan
Junction
Box
Power
Source
14-2 Wire
OFF
55
65
75
85
50 60 70 80 90
14-2 Wire
14-2 Wire
11. Attach the ground wire to the ground screw on the timer.
12. In the fan’s junction box, tie the black wire from the fan to the taped white wire.
13. Tie the two remaining black wires together. Then, tie the remaining copper wires together.
