QuietCool CL-1500 User Manual

11
1-888-QUIETCOOL
Power Source
Black Tied
Together with Black
Red Switch Leg
Off On
OnOff

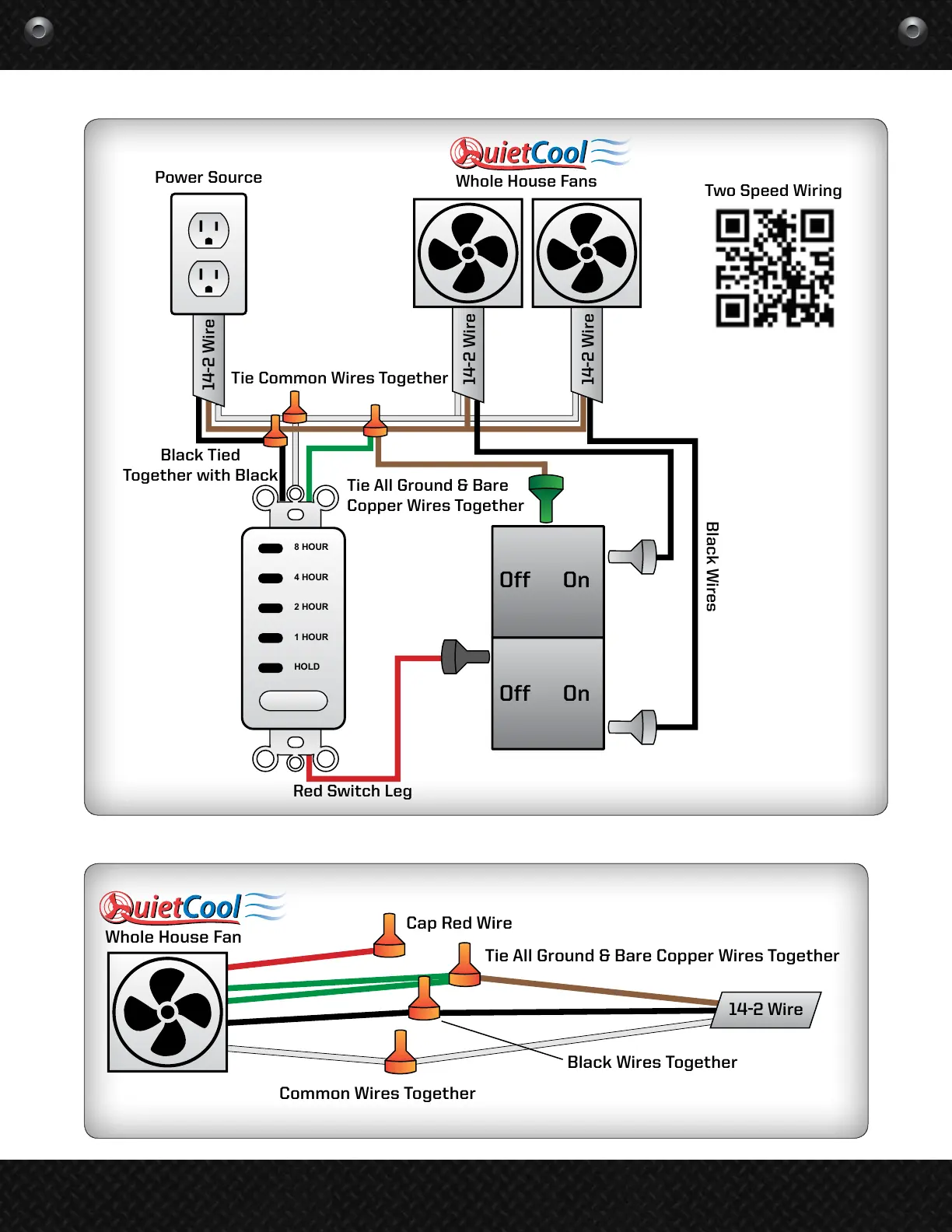

Two Speed Wiring
Tie Common Wires Together
Black Wires
Whole House Fans
Tie All Ground & Bare
Copper Wires Together
14-2 Wire
8 HOUR
4 HOUR
2 HOUR
1 HOUR
HOLD
14-2 Wire 14-2 Wire
Power Source
Black Tied
Together with Black
Red Switch Leg
Off On
OnOff
Two Speed Wiring
Tie Common Wires Together
Black Wires
Whole House Fans
Tie All Ground & Bare
Copper Wires Together
14-2 Wire
8 HOUR
4 HOUR
2 HOUR
1 HOUR
HOLD
14-2 Wire 14-2 Wire
Figure 3.3A
Tie All Ground & Bare Copper Wires Together
Cap Red Wire
Black Wires Together
Common Wires Together
Whole House Fan
14-2 Wire
Tie All Ground & Bare Copper Wires Together
Cap Red Wire
Black Wires Together
Common Wires Together
Whole House Fan
14-2 Wire
Figure 3.3B
