QuietCool IT-36002 User Manual

1-888-QUIETCOOL
5
Single Speed Wiring (for all 1500/1.5 models) (see Figure A)
1. Using a wire nut, connect the black wire from the power cord to the black wire
from the Hub.
2. Connect the white wire from the power cord and the white wire on the fan to the
white wire from the Hub.
3. Connect the black wire from the fan to the blue wire on the Hub
4. Cap the yellow and red wires from the Hub.
5. Ground the green wire from the fan and the green wire from the power cord to
the ground screw in the Hub.
6. Set the dip switch positions inside the Hub as shown in the diagram below.
7. Power-on the Hub. The Power LED indicator will be lit.
8. Press the Test button to make sure the fan works. The Test LED indicator will
blink once every two seconds indicating 1-speed and the fan will be on. Press
the Test button again and the fan should shut off and the LED will be off.
9. If the fan doesn’t operate as described in step 8, please check the dip switch
postion.
Power
Cord
Attach green ground wires to ground screw
All White Common Wires Together
POWER TIMER
PAIR TEST
Set dip switches:
1 - ON
2 - OFF
3 - OFF
ON
1 2 3
Whole House Fan
Power
Cord
Attach green ground wires to ground screw
All White Common Wires Together
POWER TIMER
PAIR TEST
Set dip switches:
1 - ON
2 - OFF
3 - OFF
ON
1 2 3
Whole House Fan

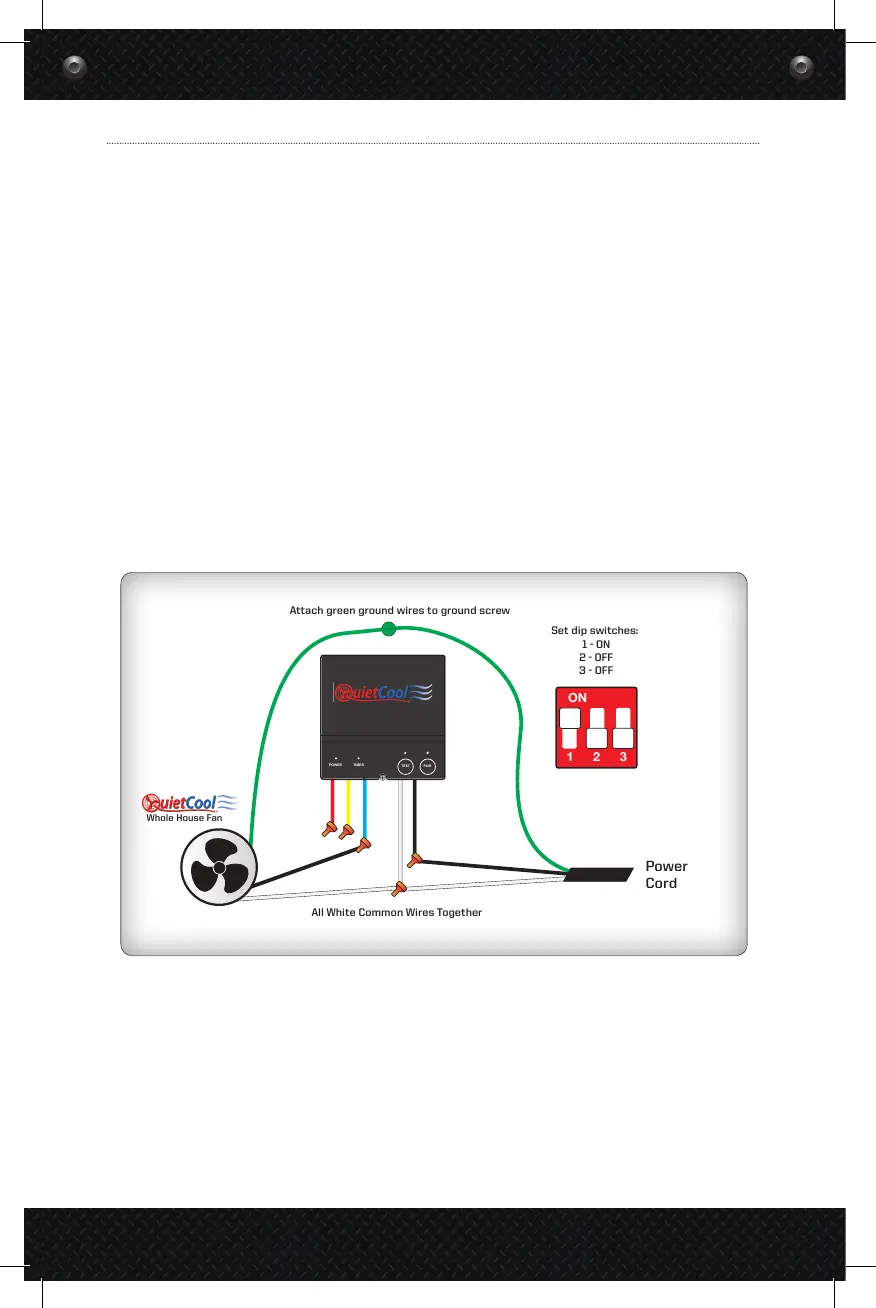

Figure A
