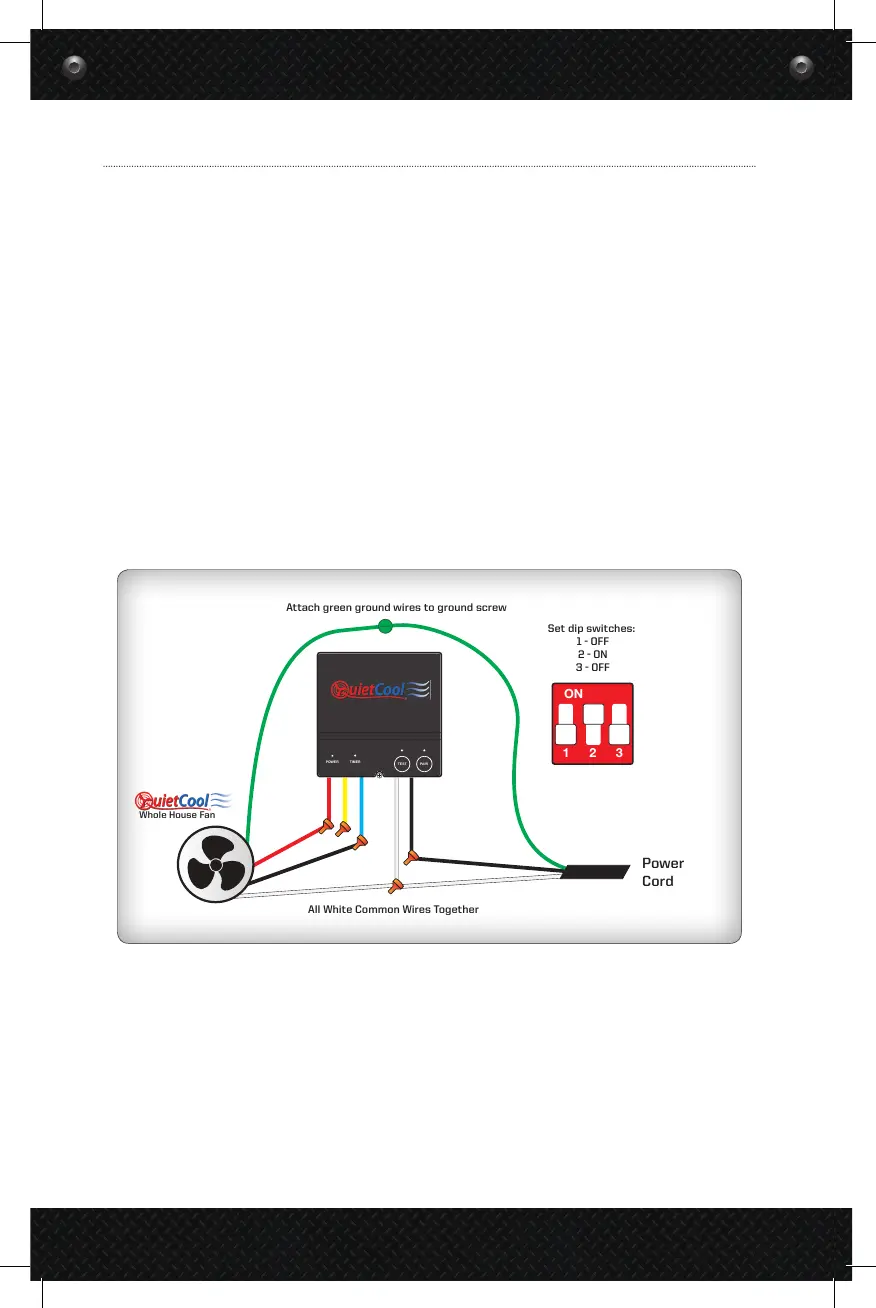

Two Speed Wiring (for CL-2250 to 7000 and TRI PRO-2.5 to 7.0) (see Figure B)
1. Using a wire nut, connect the black wire from the power cord to the black wire
from the Hub.
2. Connect the white wire from the power cord and the white wire on the fan to the
white wire from the Hub.
3. Connect the black wire from the fan to the blue wire on the Hub
4. Connect the red wire from the fan to the red wire on the Hub
5. Cap the yellow wire from the Hub.
6. Ground the green wire from the fan and the green wire from the power cord to
the ground screw in the Hub.
7. Set the dip switch positions inside the Hub as shown in the diagram below.
8. Power-on the Hub. The Power LED indicator will be lit.
9. Press the Test button to make sure the fan works. The Test LED indicator will
blink twice every two seconds indicating 2-speed and the fan will be on high.
Press the Test button again and the fan will switch to low speed. Press the Test
button again and the fan should shut off and the LED will be off.
10. If the fan doesn’t operate as described in step 9, please check the dip switch
postion.
Power
Cord
Attach green ground wires to ground screw
All White Common Wires Together
POWER TIMER
PAIR TEST
Set dip switches:
1 - OFF
2 - ON
3 - OFF
Whole House Fan
ON
1 2 3
Power
Cord
Attach green ground wires to ground screw
All White Common Wires Together
POWER TIMER
PAIR TEST
Set dip switches:
1 - OFF
2 - ON
3 - OFF
Whole House Fan
ON
1 2 3
Figure B
