Installation
In-wall Switch:

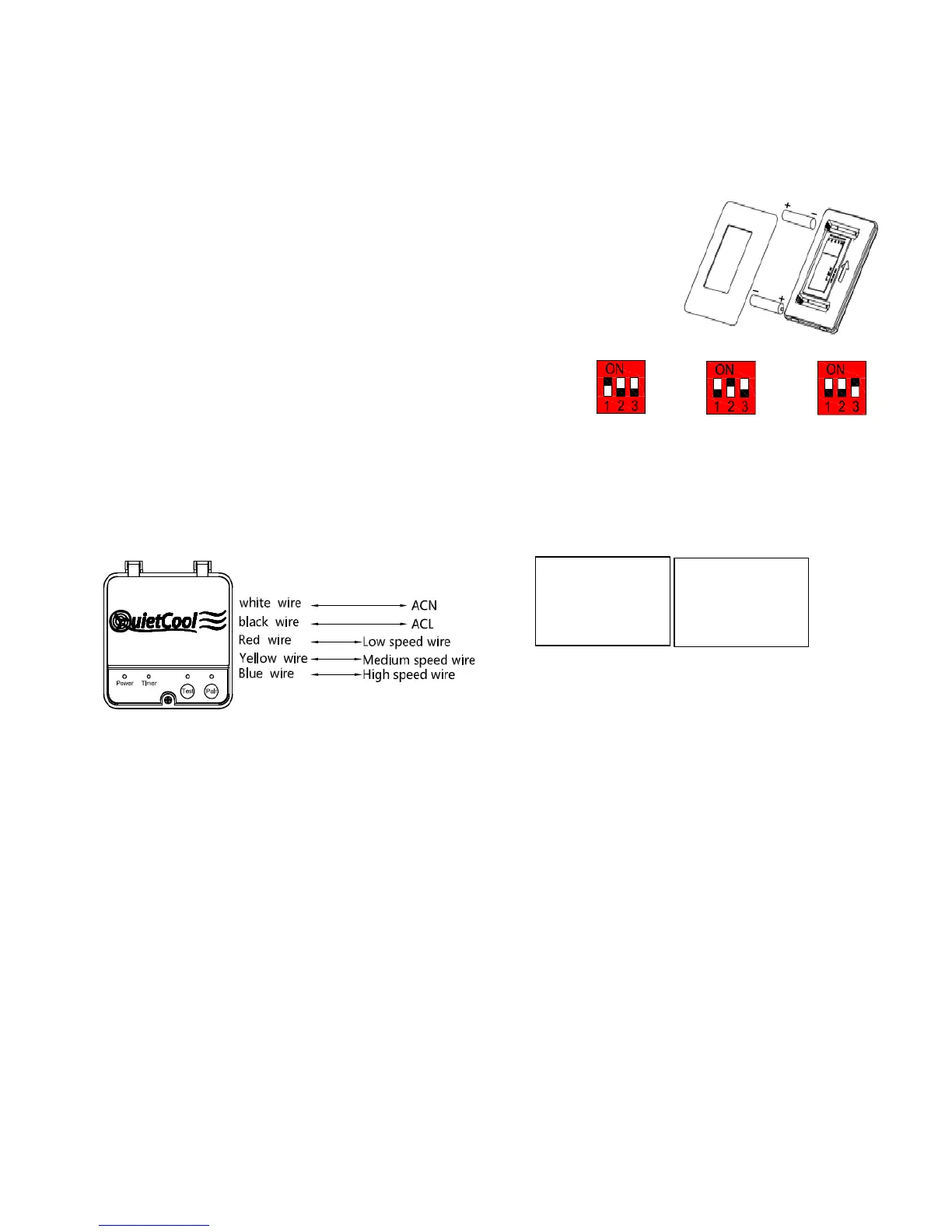

Fig. 1 Install Battery onto In—wall Switch
The in-wall switch is a standard decora style wall switch which can be fitted into a standard wall box or onto a wall-
mount base plate that comes with the switch.
As shown in Fig. 1, remove the front panel of in-wall switch, then install 2 pcs of AAA batteries into the holders.
Please make sure the battery polarity is correct. All the LED lights on the in-wall switch will be on for 3 seconds
and then go out, which means the in-wall switch operates properly. Install the front panel back onto the switch.
If LED lights are not on after batteries are installed, please check the battery status and try again.
IT-RFHUB-01 Hub:
(
Please switch off main power before wiring. The installation should be done by qualified
personnel only)
The hub (with a curved bottom) should be attached to the cylindrical fan housing and is wired to
the fan motor.
Remove the screw that holds down the hub cover and flip it up. Once the cover is open, a three
digit dip switch is available for fan speed configuration, as shown in Fig. 2.
Fig. 2 Dip Switch for Fan Speed Configuration
1 speed fan: Dial 1 to "ON”;
2 speed fan: Dial 2 to "ON”; and
3 speed fan: Dial 3 to "ON”
Once wiring is completed, close the hub cover and ti
ghten the screw.
Fig. 3 Connection Wires of IT-RFHUB-01
Input wires:
Black: Line voltage, ACL
White: Neutral, CAN
Output wires:
Red: Low speed
Yellow: Medium speed
Blue: High speed
