Page 13 (Wiring Diagrams)

QuietCool QC48B2 - Wiring Diagrams

QuietCool QC48B2

14 pages

Save Page as PDF

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

13

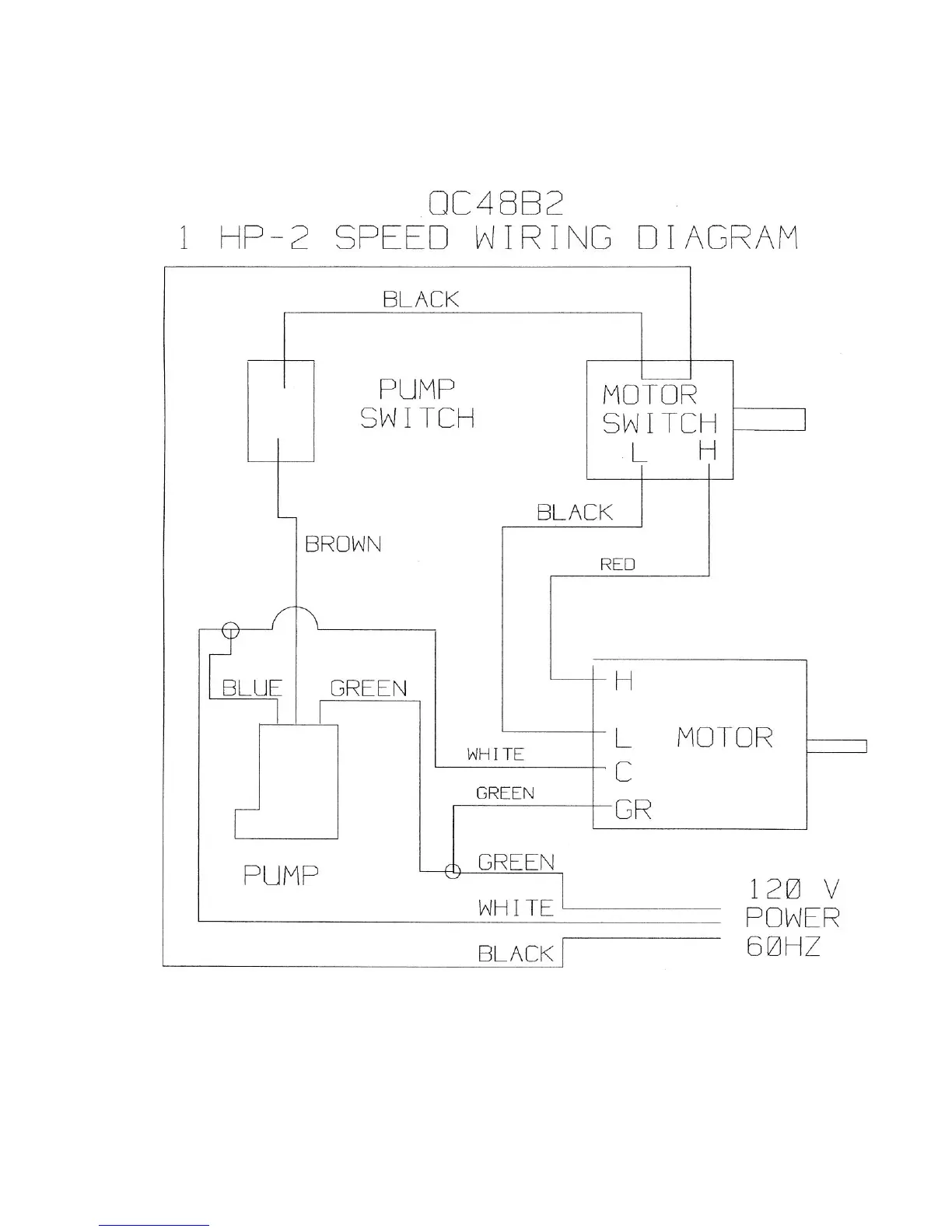

12.0 Wiring Diagrams for the 48” unit
