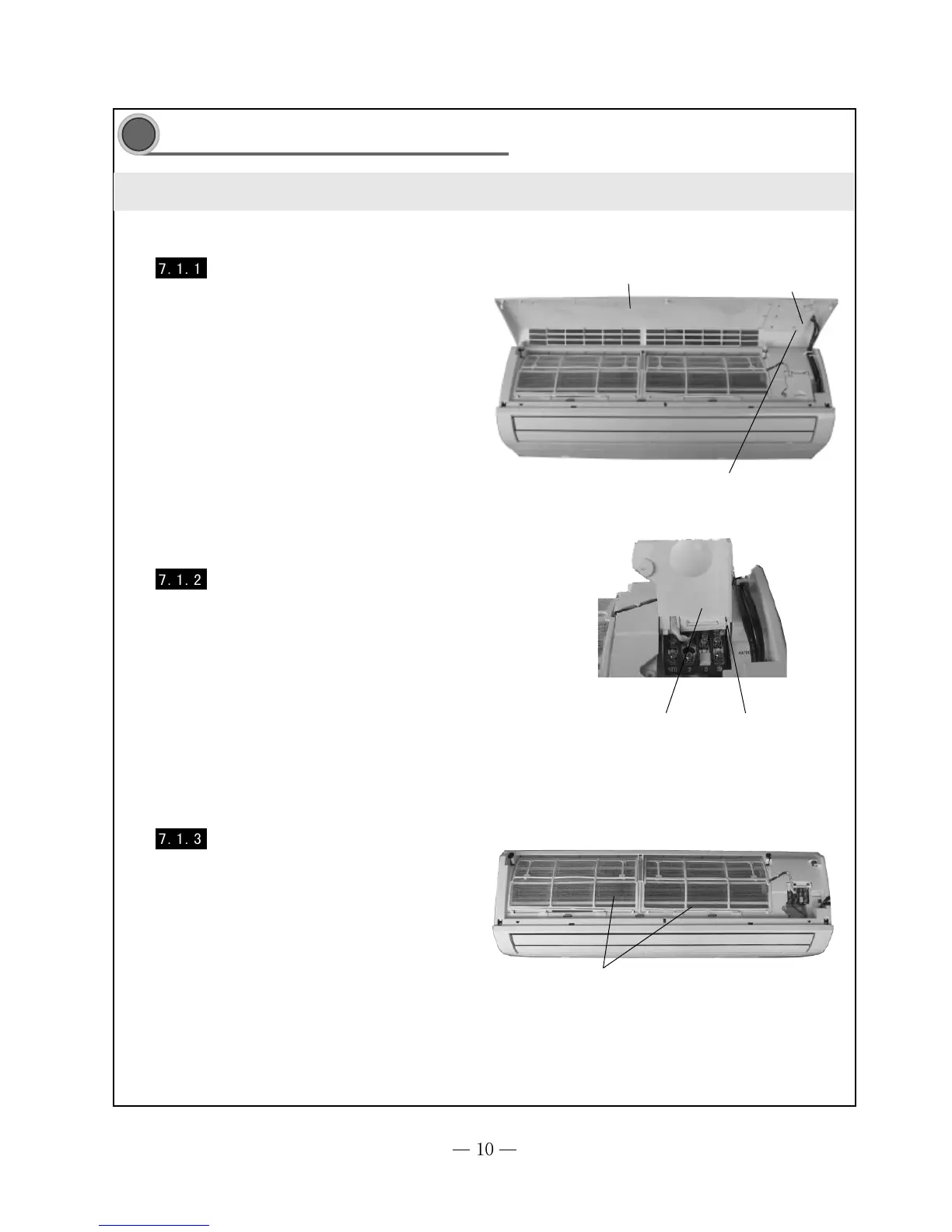

Disassemble Front Panel
Lift the front panel upward. Firstly, screw off a screw
fixing the upper protection plate at the receiving
window and remove the protection plate. Then, pull
away the connection terminal. Pull the panel outward
with force along the groove fixing the panel of the
panel body to remove the panel
Disassemble Cope of Electric Box
Firstly, screw off the screw fixing the cope of electric box,
open the cope of electric box, loose the clasp and remove
the cope of electric box.
Disassemble Filter
Push the filter inward, and then pull it upward to
remove it.
Protection plate
Panel
the cope of electric box.
clasp
Filter
Screws
