Quincy Compressor QOF 30 User Manual

Section II - Description
Quincy Compressor7

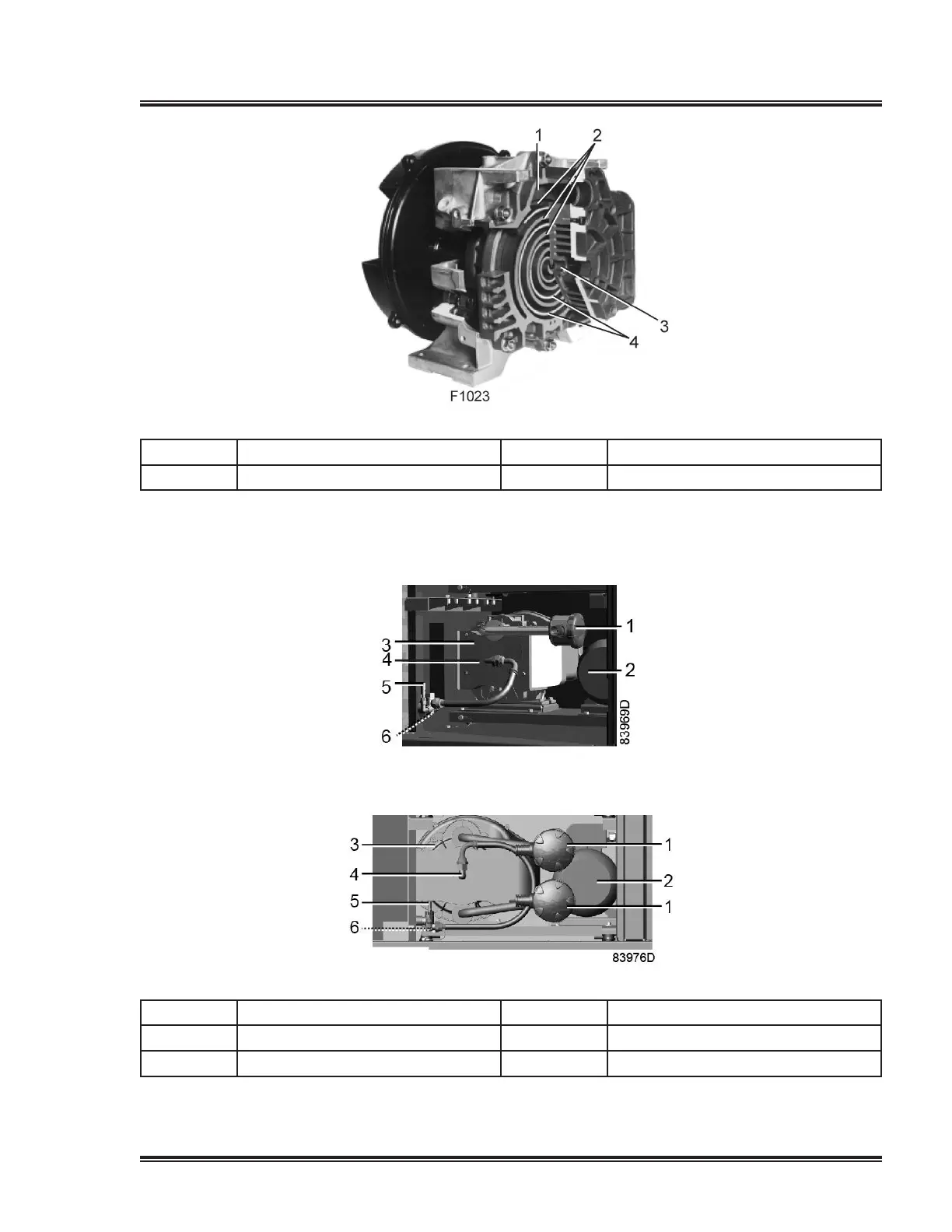

Compressor element, typical
1 Airinlet 3 Airoutlet
2 Fixedscroll 4 Orbiting scroll
Compressor module
TheQOF20hasfour3.7kWmodules,whiletheQOF22andtheQOF30respectively
havethreeorfour5.5kWmodules.
3.7 kW compressor module
5.5 kW compressor module
1 Airlter 4 Compressor element air outlet
2 Motor 5 Safety valve
3 Compressor element 6
Temperaturesensor
