Quincy Compressor QPNC 10 User Manual

Pub. No. 2200772355 — October 2006
7
Reference Conditions:
Ambient temperature: + 100 °F (+ 38 °C)
Inlet air temperature: + 100 °F (+ 38 °C)
Working pressure: 102 psi (7 bar)
Dew point in pressure: + 39 °F (+ 4 °C)
Limit Conditions:
Max. ambient temperature: + 115 °F (+ 46 °C)
Min. ambient temperature: + 40 °F (+ 4.5 °C)
Max. inlet air temperature: + 131 °F (+ 55 °C)
Max. working pressure: 232 psi (16 bar)

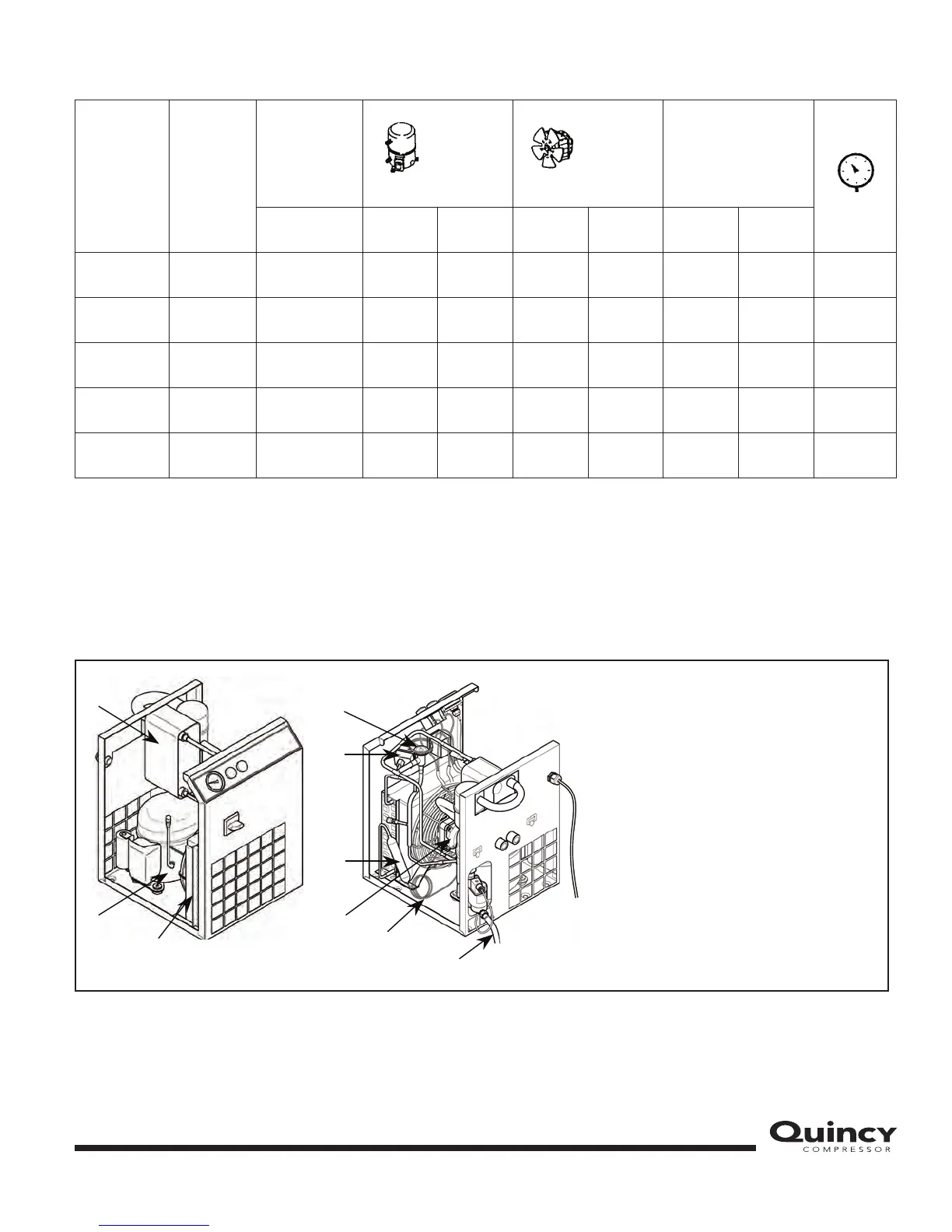

FIGURE 9 — GENERAL LAYOUT
Table 1 — Specifications
TYPE
Net
Weight
lb. (kg.)
Refrigerant
R134a
lb. (kg.)
Nomin
al
Power
HP (W)
Nomin
al
Power
HP (W)
Nominal
Power
HP (W)
MAX
psi (bar)
V230/115-
60Hz
V230-
60Hz
V115-
60Hz
V230-
60Hz
V115-
60Hz
V230-
60Hz
V115-
60Hz
QPNC 10 41.9 (19) 0.397
(0.180)
0.161
(120)
0.164
(122)
0.040
(30)
0.040
(30)
0.201
(150)
0.204
(152)
232 (16)
QPNC 15 44.1 (20) 0.463
(0.210)
0.205
(153)
0.212
(158)
0.040
(30)
0.040
(30)
0.245
(183)
0.252
(188)
232 (16)
QPNC 25 55.1 (25) 0.639
(0.290)
0.312
(233)
0.306
(228)
0.040
(30)
0.040
(30)
0.353
(263)
0.346
(258)
232 (16)
QPNC 35 59.5 (27) 0.970
(0.440)
0.390
(291)
0.386
(288)
0.040
(30)
0.040
(30)
0.430
(321)
0.426
(318)
232 (16)
QPNC 50 59.5 (27)
1.047
(0.475)
0.417
(311)
0.441
(329)
0.040
(30)
0.040
(30)
0.457
(341)
0.481
(359)
232 (16)
1
2
4
3
5
6
7
8
9
1. Refrigerant compressor
2. Condenser
3. Motor fan
4. Evaporator
5. Condensate drain
6. Hot gas bypass valve
7. Refrigerant filter-dryer
8. Expansion capillary tube
9. Pressure switch (only QPNC25 - 50)
