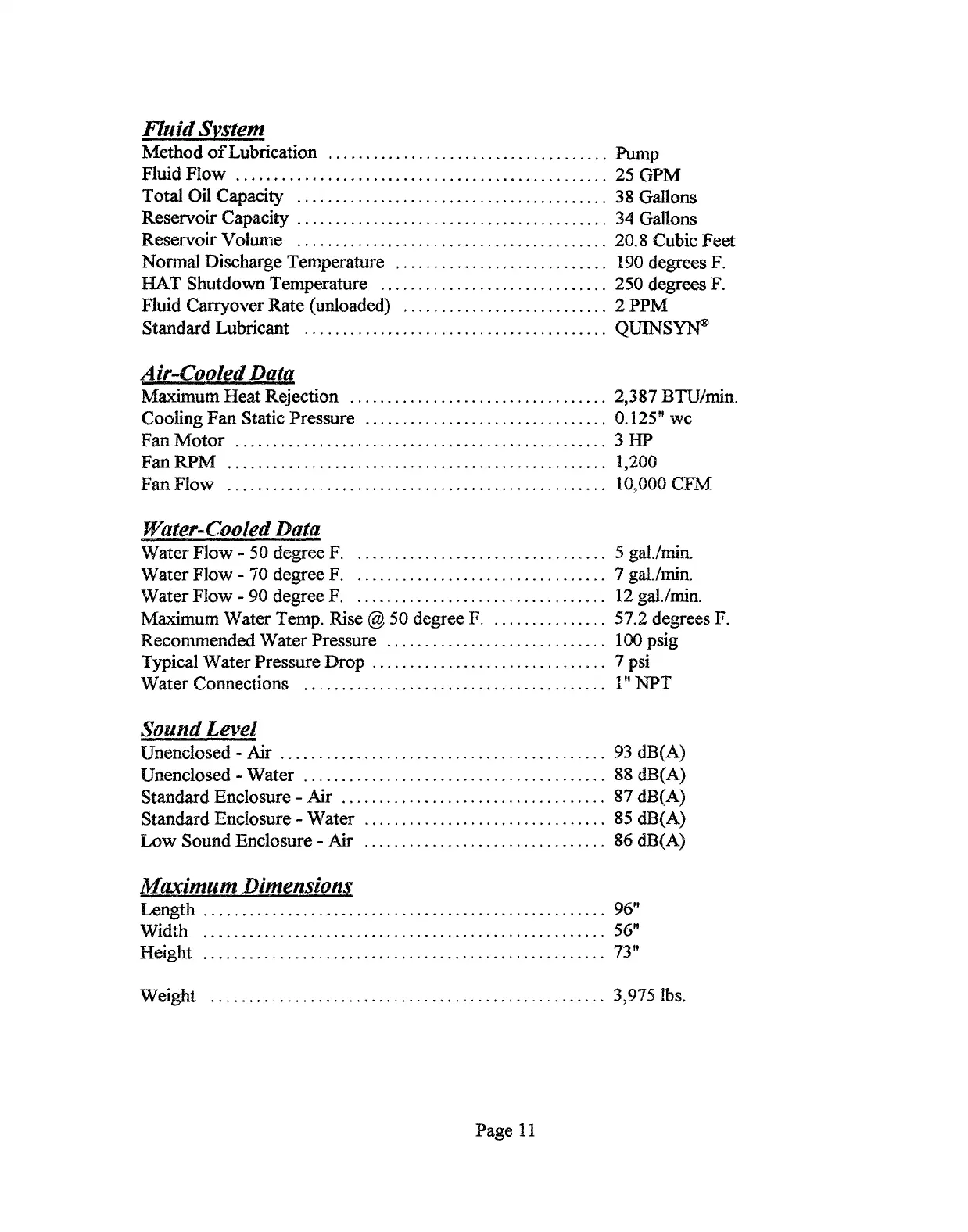

Page #15 background image
Fluid 5’vs@m
Method of Lubrication . .. ... .... .. . . . . . . . . . . .. . . . . . . . . . . . . .
Pump
Fluid Flow
. .. ... . . . . . . . . . . . . . ..... . . . . . . .. . . . . . . . . . . . . .. .. .
25
(3PM
Total Oil Capacity . . . . . . . . ...... . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Gallons
Resemoir Capaci~ . . . . . . . . . . .... . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Gallons
Reservoir Volume . . . . .. . . . . .. ... .. . . . . ..... . . . . . . . . . . . . . . . 20.8 Cubic Feet
Normal Discharge Temperature . . . . . . . . . . . . . ... . . . . .. .. . . . . 190degrees F.
HAT Slmtdown Temperature ., . . . . . . . . . . . . . . . . . . .. . . . . . ...250 degreesF.
Fluid Carryover Rate (unloaded) , . . . . . . . . . . . . . . . . . . . . . . . ...2PPM
Standard Lubricant . . . . . .. . .. . ... .. . . . . . . . . . . . .. .. . . . . . . . . .
QUINSW
Air-CooledData
Nfaximum Heat Rejection . . . . .. . . . .. . . . . .. . . . .. . . . . . . . . . ...2.387 l3TU/rnin.
Cooling Fan Static-Pressure ..... .. . . . . . . . . . . . .. . . . . . . . . . .. . 0.125”WC
FmMotor . . . . .. . . . . . . . . . . . . ..... . . . . . . . . . . .. . . . . . . . . . .. ...3~
Fan RPNl . . . . . . . . . . . . . . . . .. . .. . . . .. . . . . . .. .. . . . . . . . . . . . . . . . 1,200
FanFlow . . . . .. . . . . . . . . . . . . . ... ... . . . . . ... .. . . . . .. . . . . . . . . . I0,000CFM
Water-Cooled Data
Water Flow -50degree F. . ... .. . . . . . . . . . . . . . . . . . . . . . . . . . . . 5gal./min.
Water Flow -70degree F. . . . . . . . . . . . . . . . .. . . . . . . . . . . . .. . . 7gal./min.
Water FIow-90degree F. . . .. . . . . . . . . . . . . . . . . .. . . . . . . . .... 12gaMnin.
Nfaximum Water Temp. Rise@ 50degree F. .... . . . . . . . .. . . 57.2 degrees F.
Recommended Water Pressure . .. . . . . . . . . . .. . . . . . .. .. . . . . . .
100 psig
T~ical Water Pressure Drop ........ .. . . . . . . . . . .. . . .. . . . . .. 7psi
Water Connections . . . . . .. . . . ... . . . . . . . . . . . . . . . . . . . . . . . . . . . I“NPT
Sound Level
Unenclosed -Air . . . . . . . . . ... .. . . . .. . . . . . . . . . . . .. . . . . . .. . . . .
93 dB(A)
Unenclosed-Water . . .. . . . .. . . . . . . . . . . . . .. . . . . . . . . . . . . . . .. .
88 d13(A)
Standard Enclosure-Air .... . ... .. . . . . . . . . . . . .. . . . . . .. . . . . .
87 d13(A)
Standard Enclosure-Water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
85 dB(A)
Low Sound Enclosure-Air .. . . . . . . . . .. . . . . . . . . . . . . . . . . . . . .
86 dB(A)
Maximum Dimensions
Len~h . . . .. . . . . . . . . .. .. . . . .... .. . . .. . . . . . . . . . . . . . . . . . . . . . . . 96”
Width .. . . . . . . . . . . . . . . . .. . . .. . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . 56”
Height .. . . . . . . . . .. . . . . .. . . . .. . .. ... . . . . . . .. .. . . . . . . . . . .....73''
Weight .. . . . . . . . . . . . . . . . . . . . . .. .. . . . . . . ... . . . . . . . . . . . .. . . . . 3,9751bs.
Page 11
