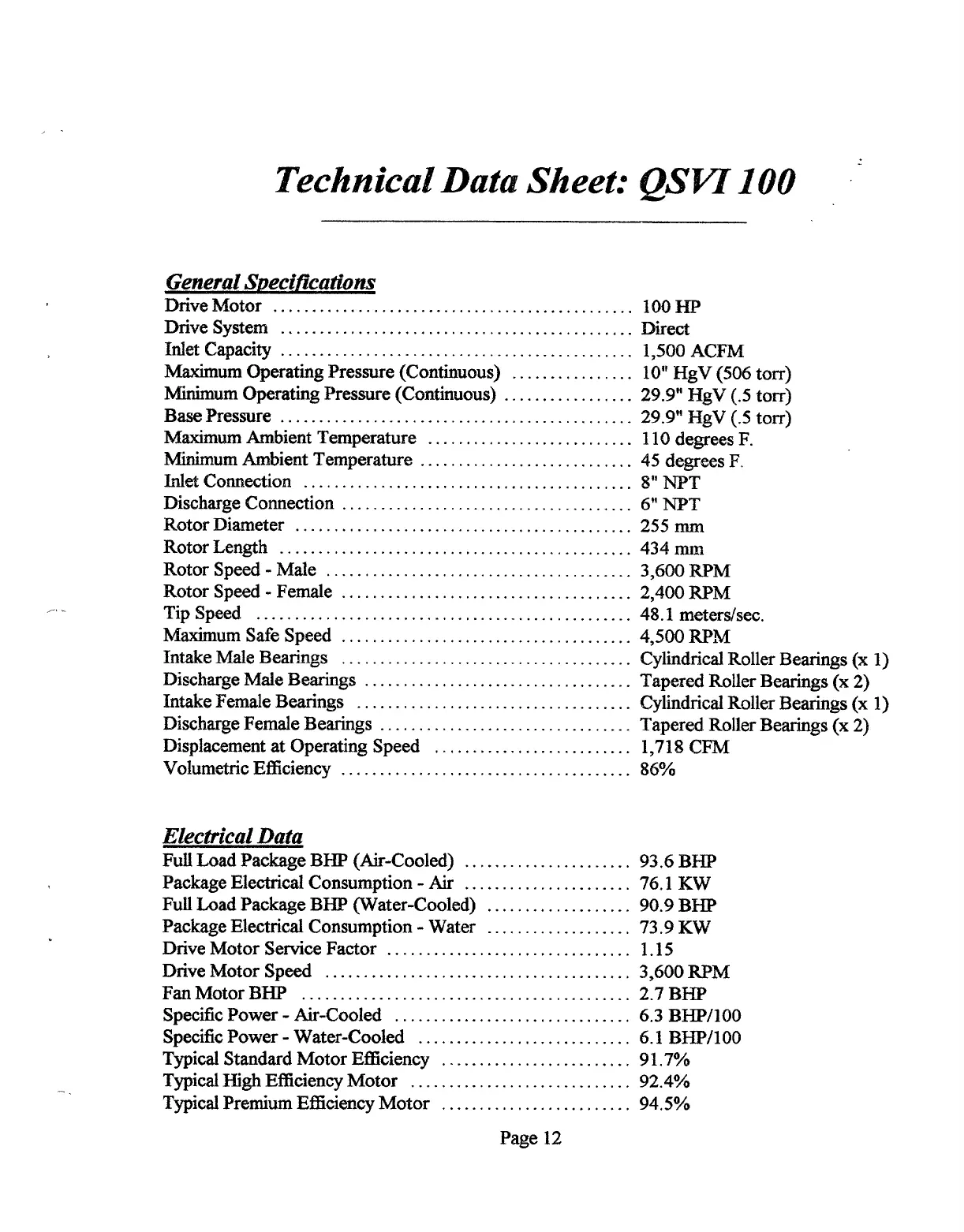

TechnicalDataSheet: QSVZ100
General Specifications
DriveMotor . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . ... . .
Drive System
.. . . . . . . . . . . . . . . . . . .. . . . . . . .. ... . . . . . . . . . . . . . .
Met Capaci& . . . . . . . . . . . . . . . . . . . . . ... . . . . . . .. . . . . . . . . . . . . ..
Maximum Operating Pressure (Continuous) ..... . . . . . . . . . . .
Minimum Operating Pressure (Continuous) .. .. . . . . . . . . . . . . .
Bme Presmre ... . .. . . . . . . . . . . . . . . .. . .. . . . . . . . . . . . . . . . . . .. . .
MaximumAmbientTemperature . . . . . . . . . . . . . . . . . . . . . . . . . . .
Minimum Ambient Temperature .. . . . .. . . . . . .. . . . . . . . . .. .. . .
Inlet Connection . . . . . . . . . . . . . . . . . . . . . . .. . . .. . . . . . .. . . .. ... .
Discharge Connection . .. .. . . .. . . . . . . . . . ........ . . . . . . .. . .. .
Rotor Diameter . . . .. . . . . . . . . . . . . . . .. . . . . .. . .. . . . . . . .. . . . .. .
Rotor Length . . . . . . . .. . . . . . . . . . . .. . . . . ..... .... .. . . .. .. . . . .
Rotor Speed-Male . . . . . . . . . . . . . . . . . . .......... . . . . .. . .. . . .
Rotor Speed -Female . . .. . . . . . . . . . . . . ... . .. .. . . . . . . . . . ... . .
,, -
Tip Speed . . . . . . . . . . . . . . . . . .. . . .. . . .. ... . .... . . . . . . . . . . . . . .
Maximum Safe Speed . . . . . . . . .. . . . . . . . .. . ..... . . . . . . . . . . . ..
Intake Male Bearings .. . . . . . . . . . . ... .. ... ..... . . . . . . . .. .. . .
DkchargeMaleBearings . . . . . . . . . . . . . ..... ...... . . . ... . .. . .
Intake Female Bearings .. . . .. . . .. . . . . . ..... . . . . . . . . . ... .. . .
Discharge Female Bearings . . . . . . . . . . .. . ..... . .. . . . .. . . . . . . .
Displacement at Operating Speed .. . . . . ....... . . . . . . . . . . . . .
Volumetric Efficiency . .. . . . . .. . . . .. . ... .. . .. .. . . . . . . . .. . . . .
Electrical Data
Full Load Package BHl?(Air-Cooled) .. ... .. . . . . . .. . . . . . .. .
Package Electrical Consumption-Air . . . . . ... . . . . . . . . . .. . . .
Full Load Package BHP (Water-Cooled) . . . . . .. . . .. . . . . . .. .
Package Electrical Consumption - Water . . . . . . . . . . . . . . .. . . .
Drive Motor Service Factor . . . . . . .. . . .. . . . . . . . . . . . . . . . . . . . .
Drive Motor Speed . . .... . . . . . . . . . . . . .. . . . .. . . . . . . . . . . . . . . .
Fan Motor BHP . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . ... . . ... . .
Specific Power-Air-Cooled .. . . . . . . . ..... . . . .. .. . . . .. . . . . .
Specific Power-Water-Cooled . ... .. ... .. . . . .. . . . . . .. .. . . .
Typical Standard Motor Efficiency . . . ... . . . . . .. . . . . . .. . . . . .
Typical High EfficiencyMotor . . . . . .. .. . . . . . . .. . . . . . . . . . . . .
Typical Premium Efficiency Motor
. .. . .. . . .. ... . . . . . . . . . . . .
Page 12
100HP
Direct
1,500 ACFNI
10” HgV (506 torr)
29.9” HgV (.5 torr)
29.9” HgV (.5 torr)
110 degrees F.
45 degrees l?.
8“ NPT
6“ NPT
255 mm
434 mm
3,600 RPM
2,400 RPM
48.1 meters/see.
4,500 RPM
Cylindrical Roller Bearings (x 1)
Tapered Roller Bearings (x 2)
Cylindrical Roller Bearings (x 1)
Tapered Roller Bearings (x 2)
1,718 CFM
86%
93,6
BHP
76.1 KW
90.9 BHP
73.9 KW
1.15
3,600 RPM
2.7 BHP
6.3 BHP/100
6.1 BHP/100
91.7%
92.4V0
94.5%
..—. .. ——. ———
