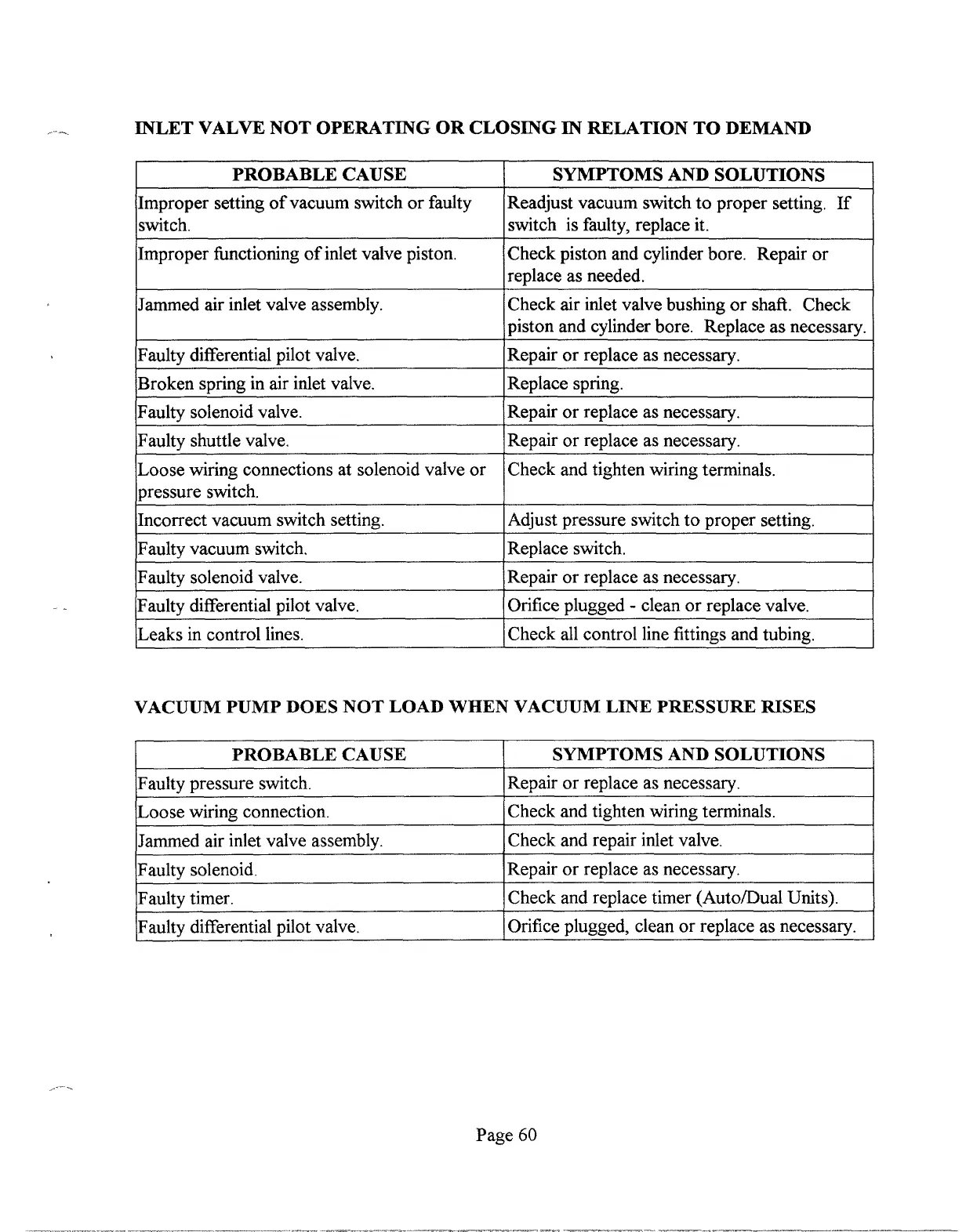

INLET VALVE NOT OPERATING OR CLOSING IN RELATION TO DEMAND
I
PROBABLE CAUSE
I
SYMPTOMS AND SOLUTIONS
‘-1
Improper setting of vacuum switch or faulty
Readjust vacuum switch to proper setting. If
switch.
switch is faultv. retiace it.
Improper functioning of inlet valve piston. Check piston and cylinder bore. Repair or
replace as needed.
Jammed air inlet valve assembly. Check air inlet valve bushing or shafi. Check
piston and cylinder bore. Replace as necessary.
Faulty differential pilot valve. Repair or replace as necessary.
Broken spring in air inlet valve.
Replace spring.
lFaulty solenoid valve.
\Repair or replace as necessary.
I
Faulty shuttle valve. Repair or replace as necessary.
Loose wiring connections at solenoid valve or Check and tighten wiring terminals.
pressure switch.
Incorrect vacuum switch setting. IAdjust pressure switch to proper setting.
lFaulty vacuum switch.
lReplace switch.
I
Faulty solenoid valve. Repair or replace as necessary.
Faulty differential pilot valve. Orifice plugged - clean or replace valve.
Leaks in control lines. Check all control line fittings and tubing.
VACUUM PUMP DOES NOT LOAD WHEN VACUUM LINE PRESSURE RISES
PROBABLE CAUSE
SYMPTOMS AND SOLUTIONS
Faulty pressure switch.
Repair or replace as necessary.
Loose wiring connection.
Check and tighten wiring terminals.
Jammed air inlet valve assembly.
Check and repair inlet valve.
Faulty solenoid.
Repair or replace as necessary.
Faulty timer.
Check and replace timer (Auto/Dual Units).
Faulty differential pilot valve.
Orifice plugged, clean or replace as necessary.
