QUORION QTouch2 User Manual

11

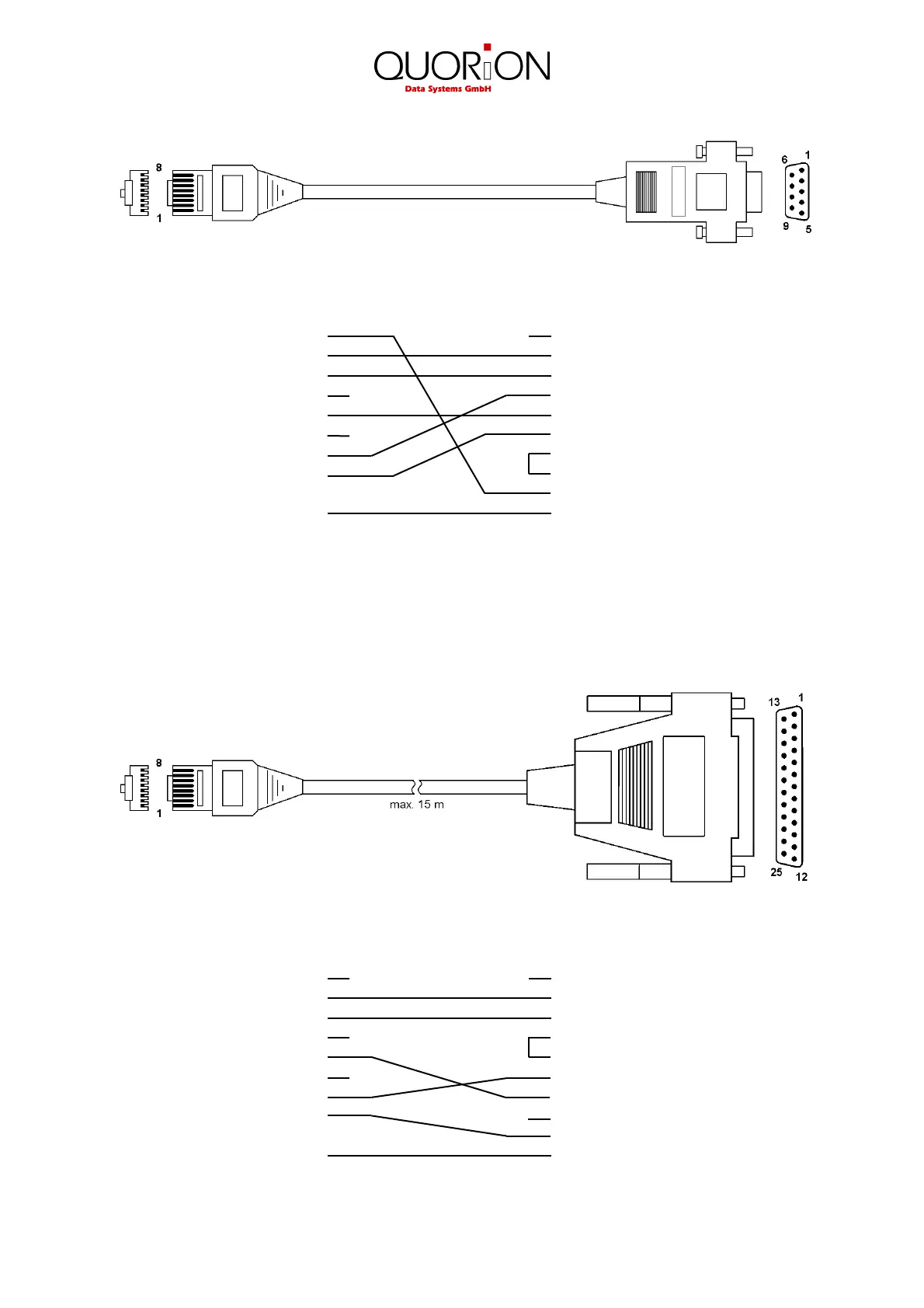

Adapter cable, type DTR/DSR (grey)
CON-M 08Pin/RJ45 CON-M 09Pin/DSUB
VCC Pin 1 Pin 1 --
RxD Pin 2 Pin 2 RxD
TxD Pin 3 Pin 3 TxD
DTR Pin 4 Pin 4 DTR
GND Pin 5 Pin 5 GND
DSR Pin 6 Pin 6 DSR
RTS Pin 7 Pin 7 RTS
CTS Pin 8 Pin 8 CTS
-- -- Pin 9 VCC
SHLD SHLD SHLD SHLD
Recommended for: - PC
- External Printer
- External Display
- Mobile Ordering System (Handy)
- Card Terminal
- Scanner
- Scale
Kitchen printer cable for direct connection
CON-M 08Pin/RJ45 CON-M 25Pin/DSUB
VCC Pin 1 Pin 1 --
RxD Pin 2 Pin 2 TxD
TxD Pin 3 Pin 3 RxD
DTR Pin 4 Pin 4 RTS
GND Pin 5 Pin 5 CTS
DSR Pin 6 Pin 6 DSR
RTS Pin 7 Pin 7 GND
CTS Pin 8 Pin 8 --
-- -- Pin 20 DTR
SHLD SHLD SHLD SHLD
