7. ELECTRICAL CONNECTIONS
REMEMBER -Turn off the power! NOTE - Control must be installed within 30 feet of fan.
Use the wire nuts supplied with your fan
when making connections. Secure the
connectors with electrical tape and make
sure there are no loose connections or wire
strands.
1. Spread the wires apart so that the black
wire from the fan is on one side of the
mounting bracket and the white wire and
green ground wire are on the other side.
2. (Fig. 17) Connect the BLACK building
supply wire to the BLACK fan wires.
Connect the WHITE building neutral wire
to the WHITE fan neutral wire. Connect
the COPPER building ground wire to the
GREEN fan ground wire.
Carefully tuck the connected wires inside
the junction box. Secure the transmitter
with the two screws provided. Attach the
face plate over the transmitter with the two
screws provided.
Use ONLY remote controls approved
by Quorum. Use of unapproved remote
controls will cause unacceptable
humming noise, and avoids the fan
warranty.

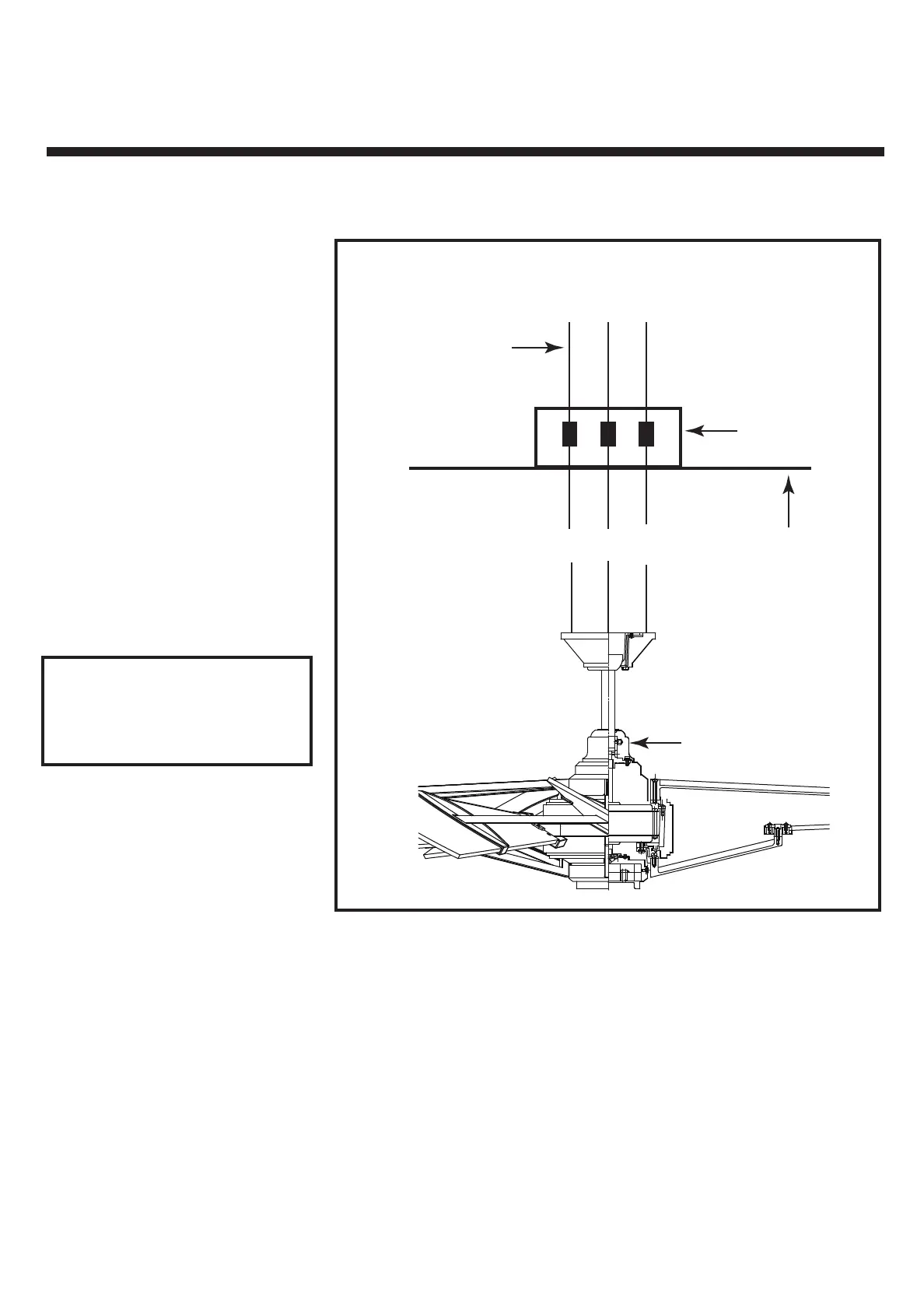

Fig. 17
Fan
Outlet box
Ceiling
WH WH
BLK BLK
House
supply
wires
GRN
GROUND
