HDMI 2CH/5.1CH Audio Extractor
４
5.0 CONNECTION AND OPERATION
1) Connect the input of this product to HDMI Source.
2) Connect the output of this product to HDMI Display.
3) Connect SPDIF or Stereo port to Amplifier Receiver
4) Insert the DC side of 5V power supply into the unit and then connect the AC
side of the power supply into the wall outlet.
5) Select the Audio output you want through pressing “2CH/5.1CH” button.

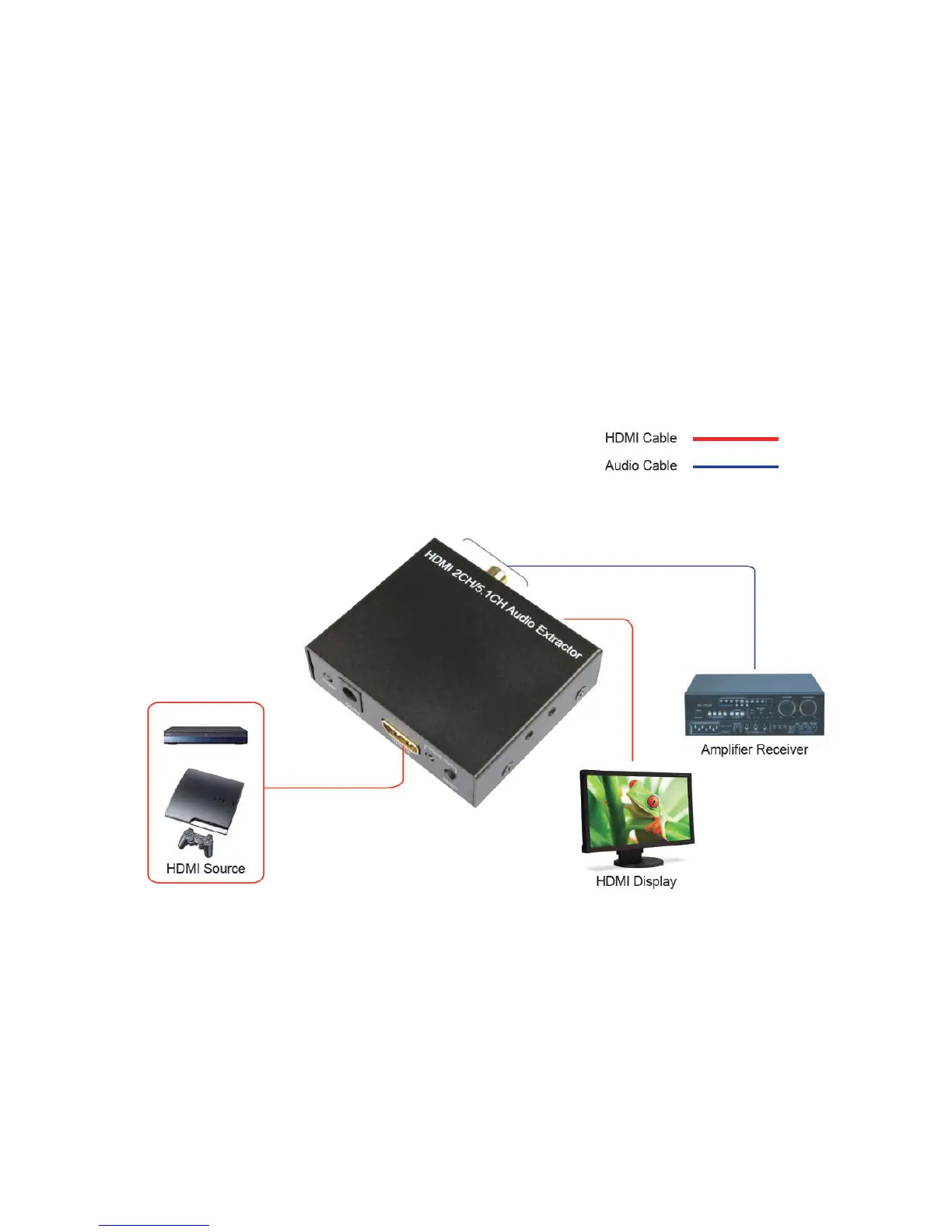

5.2 CONNECTION DIAGRAM
