Mounting instruction
Small tray on Stingray

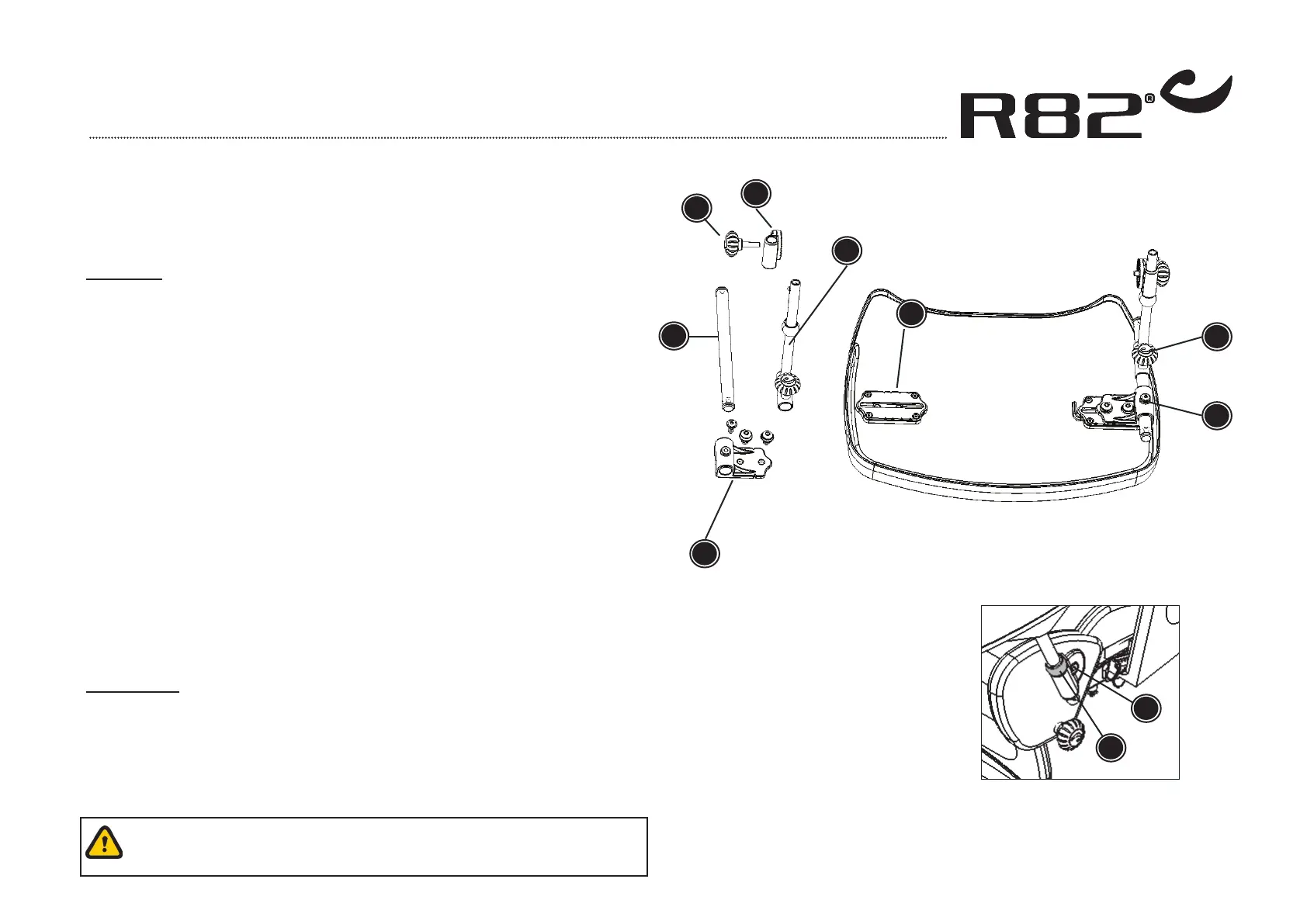

Follow the instructions below to assemble the tray (the enclosed
5 mm Allen key can be used on all bolts):
Mounting:
* The holders (A) are mounted at each side of the seat with the
finger screw (B) - remove first the protection cap in the fitting at
the seat.
* The fitting (C) is mounted in (D) with the enclosed bolts and wa-
shers. Please note the orientation of mounting bracket (C) as per
the drawing. There are 4 positional markers in plate (D) and 1 on
the mounting bracket (C). For Stingray Sz. 1 please line up the
marker on bracket (C) with marker No. 4 (counting from the outside
edge of the tray) on plate (D). For Stingray Sz. 2 use marker No.
2 on (D).
* Assemble the tray rods (E) and (F) by means of the finger screw
and mount them in the fitting (C) by means of the bolt (G).
* The tray is mounted in the holders (A) at each side of the seat.
Adjustment:
* Adjust the depth of the tray by either loosening the bolt (G) or the
finger screw (H) under the tray.
* Loosen the screws (I) at both sides to adjust the angle of the tray.
* Move the screw (J) up or down to height adjust the tray.
Any adjustments and addition of accessories must be placed
and fitted correctly and checked before every use.
