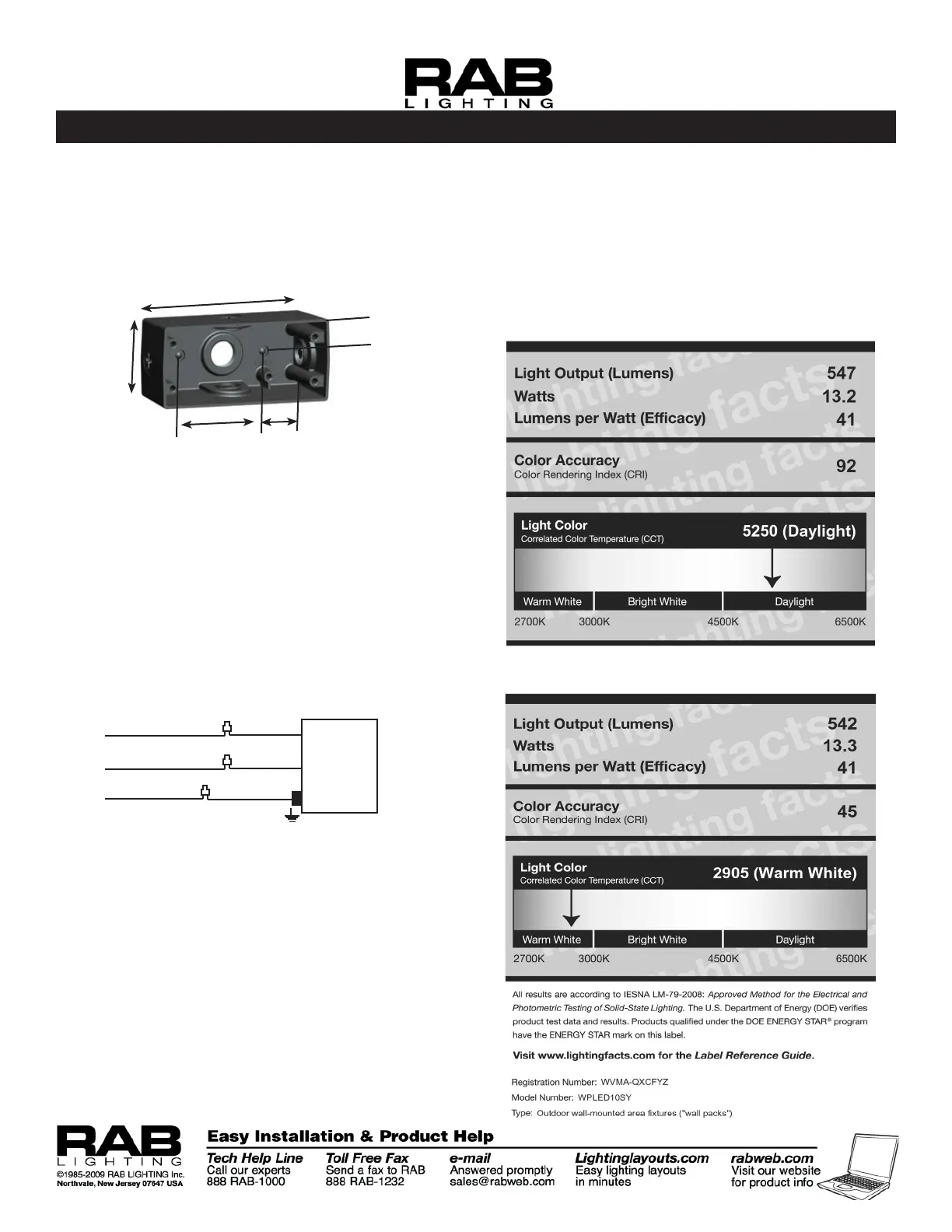

10W LED WALLPACK INSTALLATION INSTRUCTIONS
TROUbLESHOOTING
Check that the line voltage at xture is correct.
Refer to wiring directions.
Is the xture is grounded properly?
Is the photocell is functioning properly (if used)?
1.
2.
3.
WPLED10-IN-1009
CLEANING & MAINTENANCE
CAUTION: Be sure xture temperature is cool
enough to touch. Do not clean or maintain while
xture is energized.
Clean glass lens with non-abrasive glass cleaning
solution.
1.
-*()5
'*9563&
-*/& #-"$,
$0..0/ 8)*5&
(306/%
(306/%
WIRING
All units are factory wired for 120V.
Connect the black xture lead to the (+) LINE
supply lead.
Connect the white xture lead to the (-) COMMON
supply lead.
Connect the bare copper Ground wire from xture to
supply ground.
1.
2.
3.
JUNCTION bOx
The Junction box has (4) conduit entry points
on the center of each side and (1) in the center
back.
Mounting points are dimensioned below.
1.
2.
Patent pending
Note: These instructions do not cover all details or variations
in equipment nor do they provide for every possible situation
during installation, operation or maintenance.
4 3/4”
2 3/16”
3 1/2”
1 1/8”
1 1/8”
Lighting Facts - 5200K
Lighting Facts - 2800K
