Rabbit P455SM - Wiring Diagram

20

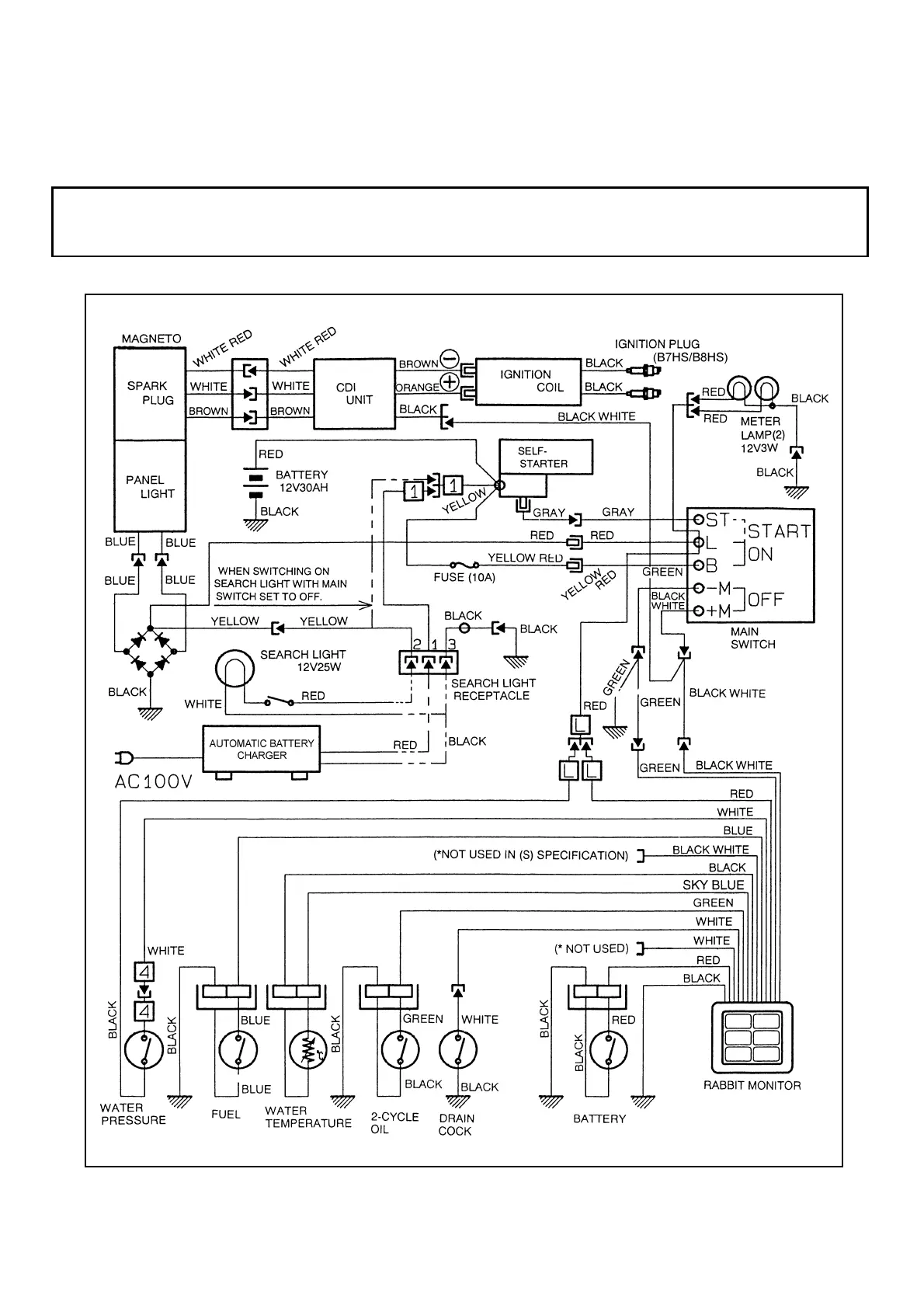

WIRING DIAGRAM
(S) WIRING DIAGRAM
Notes : 1. This pump is equipped the fuse, but pay attention to correct connection with (+) and (-) terminals of battery.
2. In connection with the battery, start with (+). In disconnection, start with (-) terminal.
