Race Face Aeffect R - Page 6

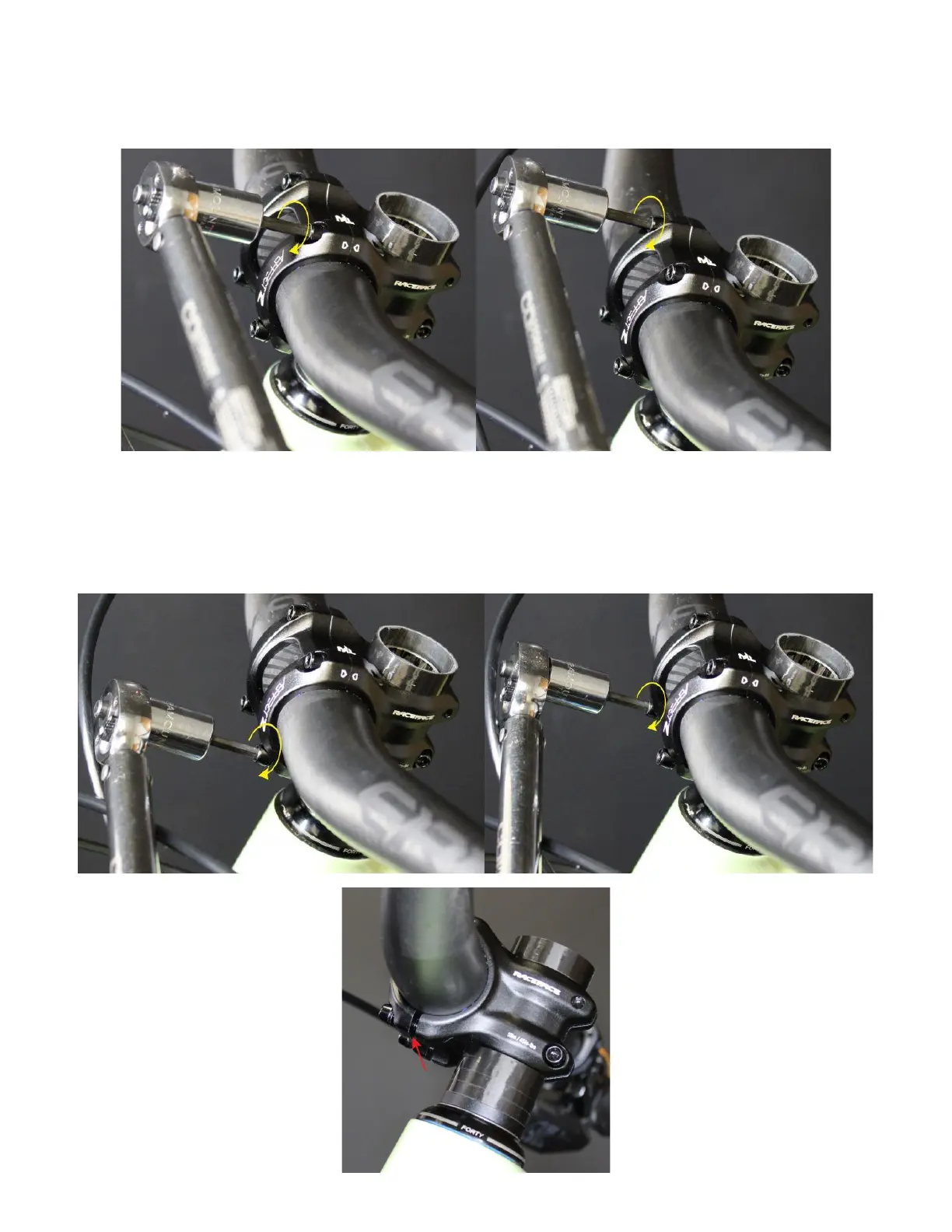

Step 6
Tighten the top two handlebar clamp bolts to the recommended torque specification. Ensure there is no gap (0 mm)
between the upper surface of the stem and faceplate after tightening.
Step 7
Rotate and position the handlebar to the desired riding position. Then tighten the bottom two handlebar clamp bolts to
the recommended torque specification. There will be a gap between the bottom of the faceplate and the stem body.
