3.12 Installation with accessories of “Rack-mount” types:

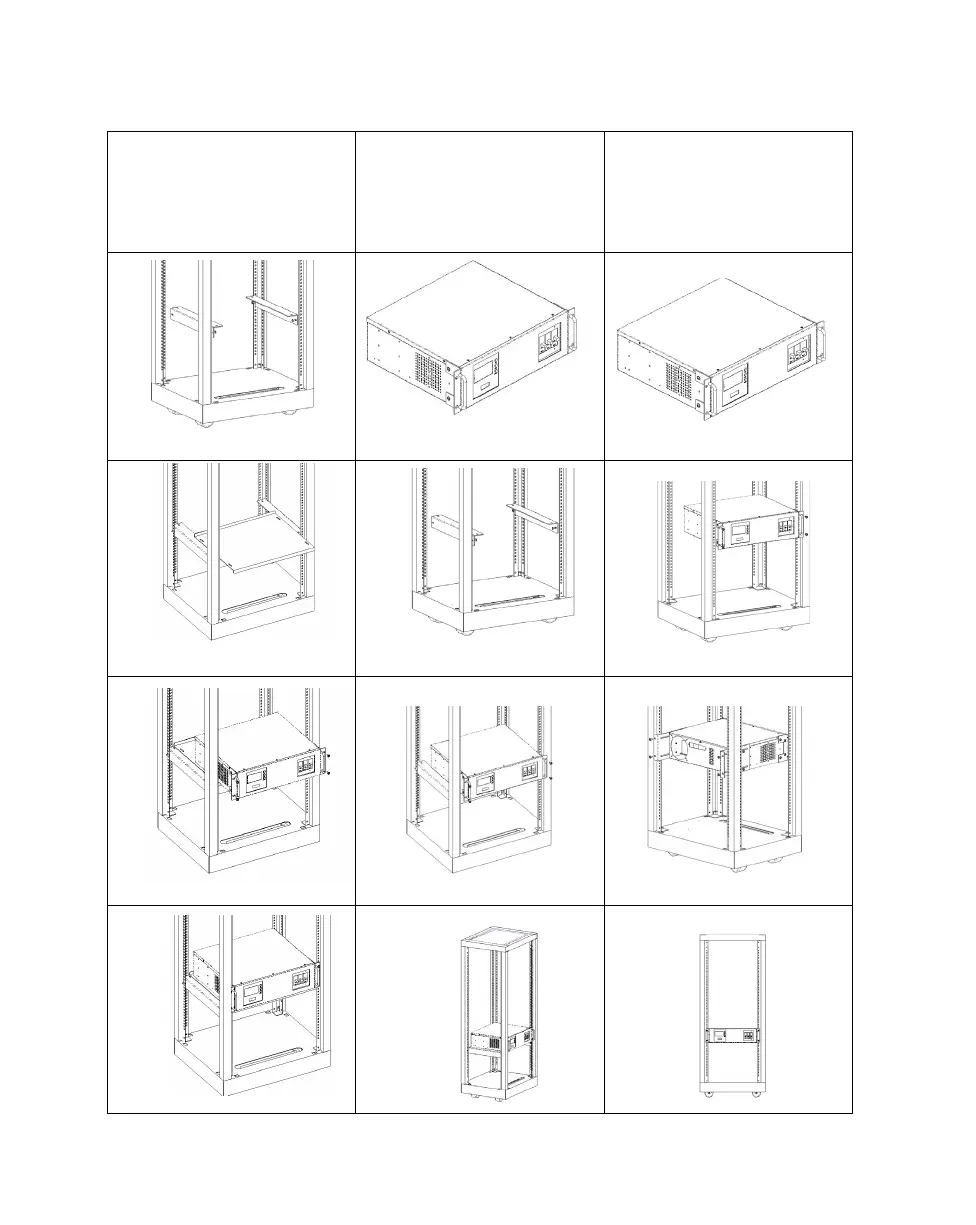

Please install the rack-mount type units according to the following illustration.

Installation with bottom

plate.

Part

RMB-05

1 SET.

Installation with bottom

bracket.

Part

RMB-06 (1U)

RMB-07(2U~4U).

2 PCS.

Installation with rear

bracket

Part

RMB-01(1U),-02(2U),

-03(3U),-04(4U)

2 PCS.

Step 1

Step 2

Step 3

Step 4
