19
1300905-W2-A

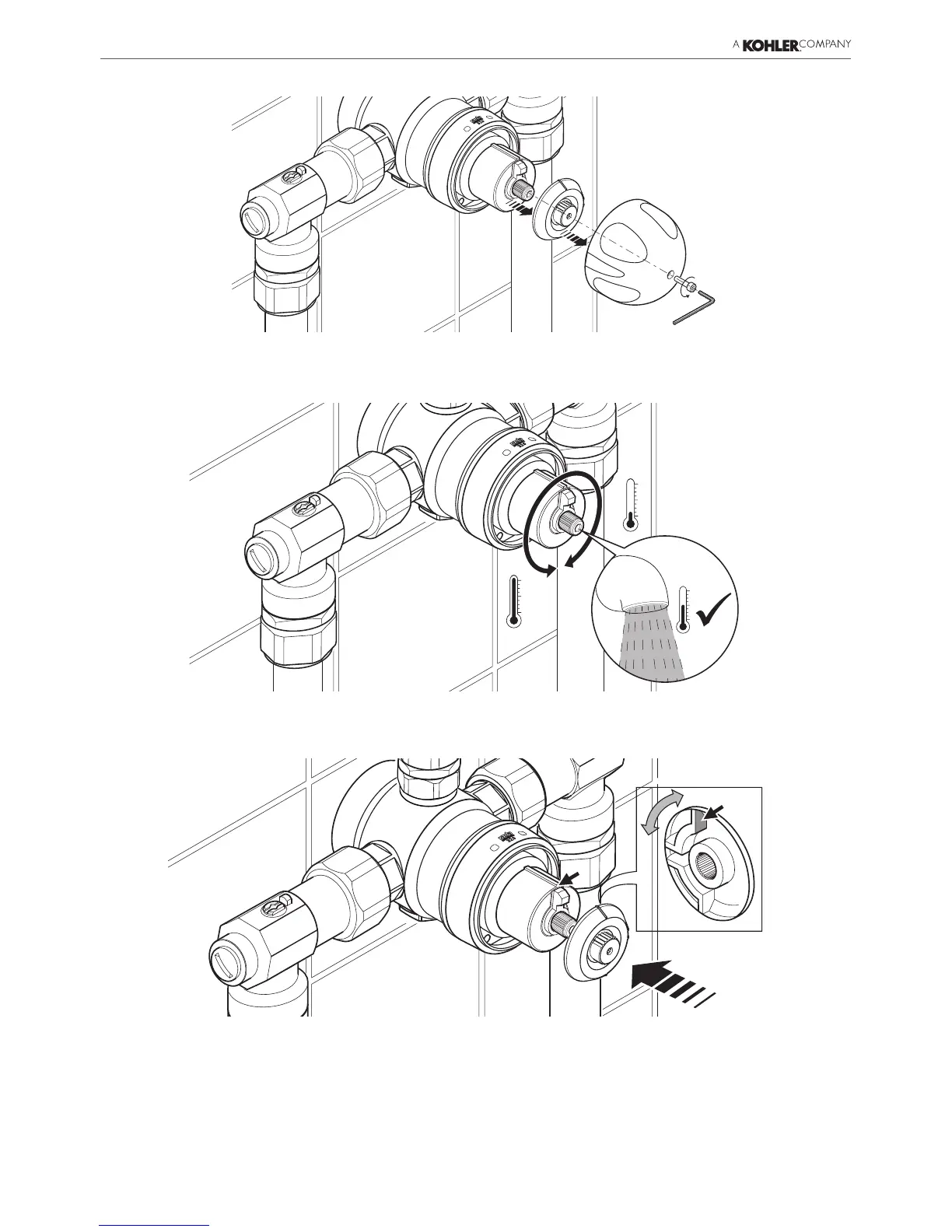

2. Rotate the spindle until required blend temperature is obtained at outlet point (clockwise
= decrease temperature, anticlockwise = increase temperature).
3. Once the desired maximum blend temperature is achieved, re-t the hub without
disturbing the spindle: Position the hub so that the hub stop comes up against the
cartridge stop preventing any further rotation in an anti-clockwise direction. Check that
blend temperature has not altered.
4. Ret the temperature knob. Make sure that the indicator points to 9 o'clock.
For Adjustable Temperature
1. Remove the concealing cap, temperature knob and then the screw using the 3 mm
hexagonal wrench (supplied). Remove the temperature knob and the hub.
