For Locked Temperature

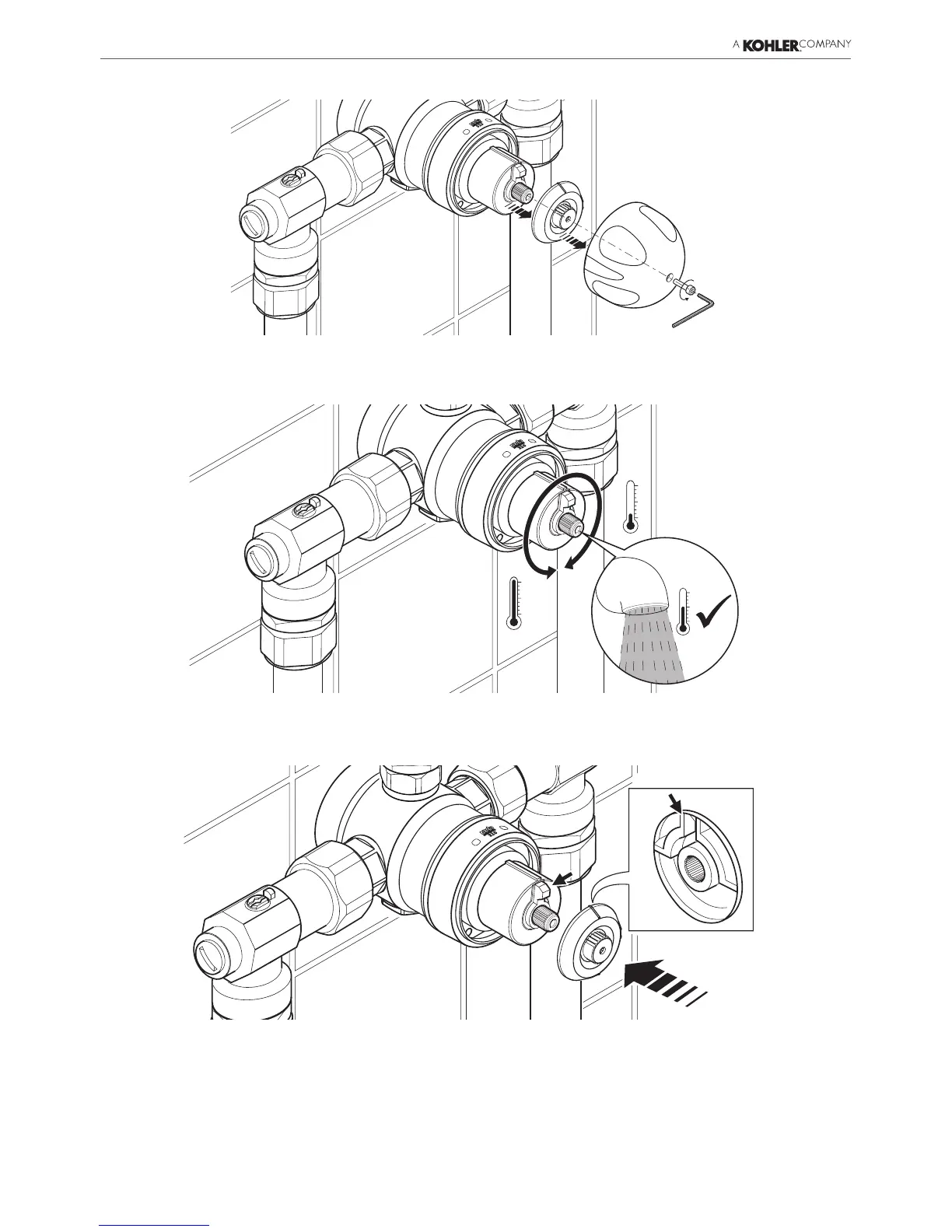

1. Remove the concealing cap, temperature knob and then the screw using the 3 mm
hexagonal wrench (supplied). Remove the temperature knob and the hub.
3. Once the desired maximum blend temperature is achieved, re-t the hub without disturbing
the spindle, positioning it so that the centre stop slot in the hub ts over the top of the
cartridge stop, preventing any further rotation in either direction. Check that the blend
temperature has not altered.
4. Ret the temperature knob. Make sure that the indicator points to 6 o'clock.
2. Rotate the spindle until required blend temperature is obtained at outlet point (clockwise
= decrease temperature, anticlockwise = increase temperature).
