Radial Engineering Ltd.
BT-Pro™ Bluetooth DI
True to the Music
®

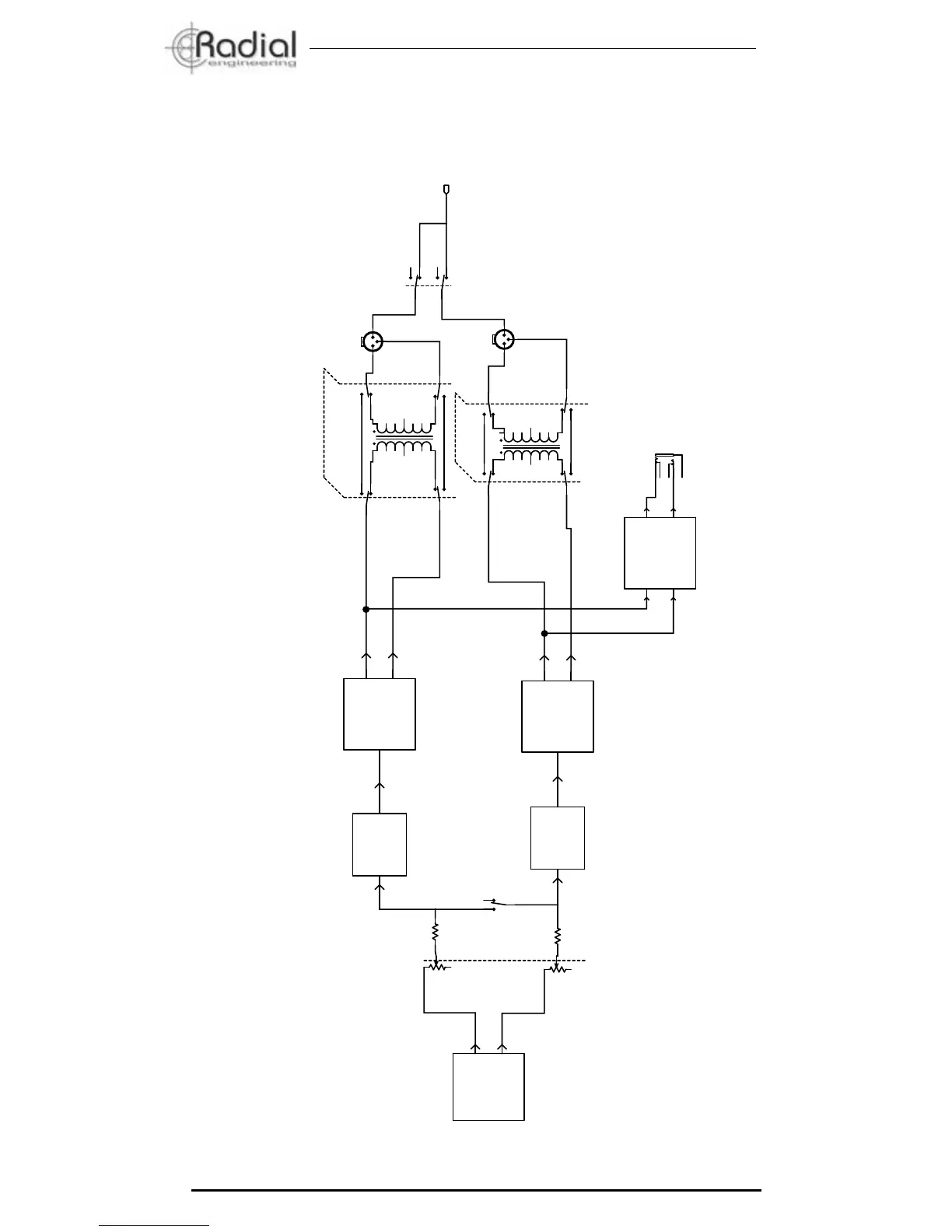

BLOCK DIAGRAM*
7
* Subject to change without notice.
MONO
LEFT
RIGHT
OUTPUT
LEVEL
BLUE
RECEIVER
FILTER
FILTER
H/P
AMPLIFIER
TRANSFORMER FULL BYPASS SWITCHES
OUTPUT
OUTPUT
GROUND LIFT
HEADPHONE OUTPUT
PHASE
SPLITTER
/BUFFER
PHASE
SPLITTER
/BUFFER
TOOTH
CHASSIS_GND
L_OUT
R_OUT
