Radial Engineering Ltd. JX44 V2™ Owner’s Manual
2

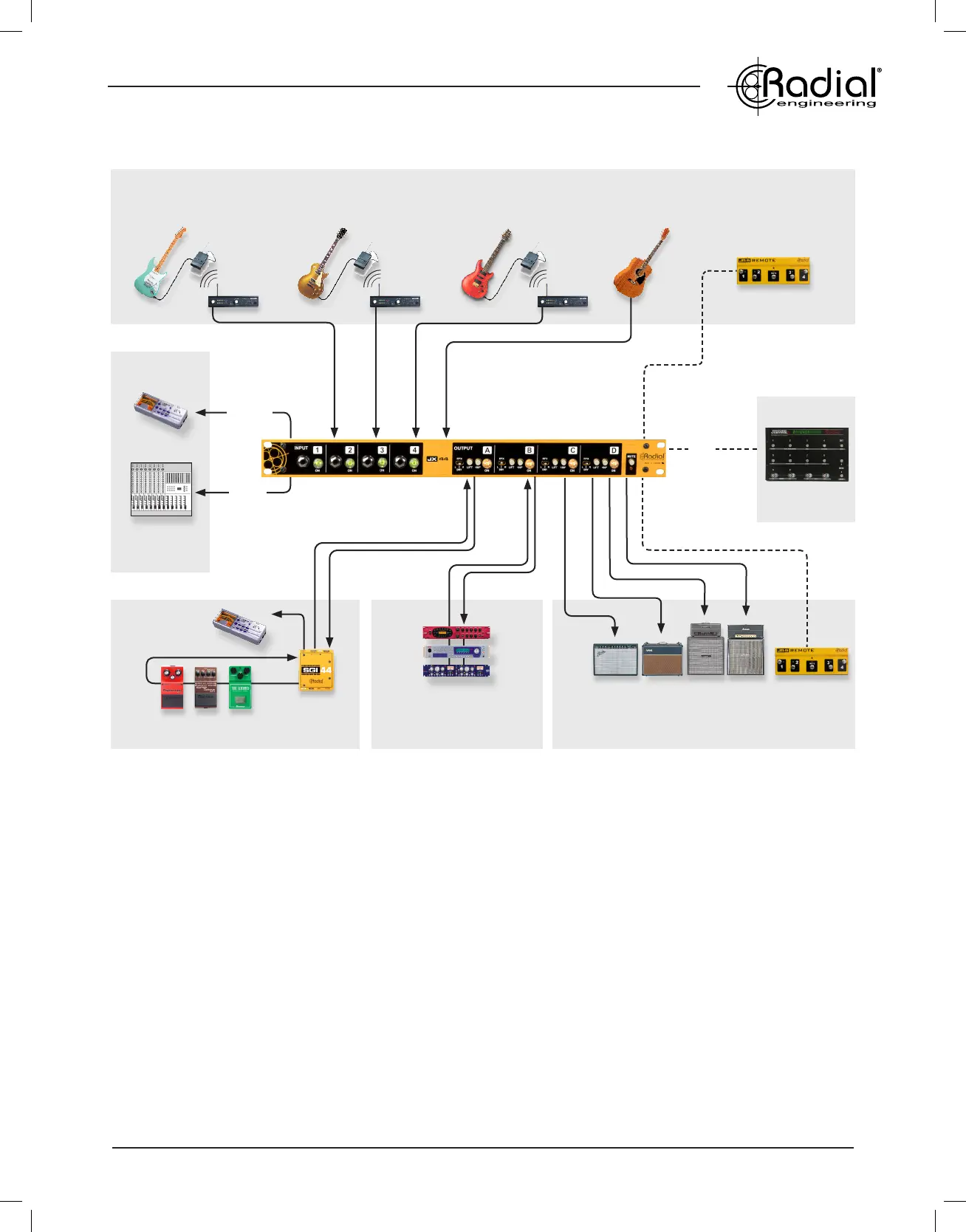

OVERVIEW
1. INSTRUMENT INPUTS:
2. AMPLIFIER OUTPUTS:
3. STEREO EFX LOOP:
4. SGI-44 LOOP:
5. DIRECT OUTPUT:
6. TUNER OUTPUT:
7. MIDI INPUT:
5. DIRECT
INPUT-1 INPUT-2 INPUT-3 INPUT-4
Wireless Wireless Wireless
1. INSTRUMENT INPUTS
2. AMPLIFIER OUTPUTS
Remote
Tuner
4. SGI-44 LOOP
GUITAR SELECT
AMP SELECT
6. TUNER
DI OUT
3. STEREO EFX LOOP
Mixer
7. MIDI
Local Tuner
MIDI controller
OUT-A OUT-B OUT-C OUT-D
TUNER OUT
MIDI
