• Standard (30/80°C) / reduced (25-40°C) central h eating temperature
• Water hammer prevention function
• Central Heating timer - (adjustable from 0 to 7,5 minutes)
• Central Heating pump overrun timer
• Minimum Gas pressure setting
• Maximum Heating Load
• Heating output rising time
User settings
• On/Off
• Heating Temperature setting (30-80°C) – (25-40°C)
• Winter only mode
Operation/Functions display
• Lock-Out
• Water deficiency indicator
• Temperature display
When the boiler is switched off at the switch on the control panel, the word OFF appears on the
display. The central heating frost protection system, nevertheless, remain enabled. If the boiler was
previously on, it is switched off and the post-ventilation protection functions is enabled.
The remote control, where fitted, remains active and illuminated.

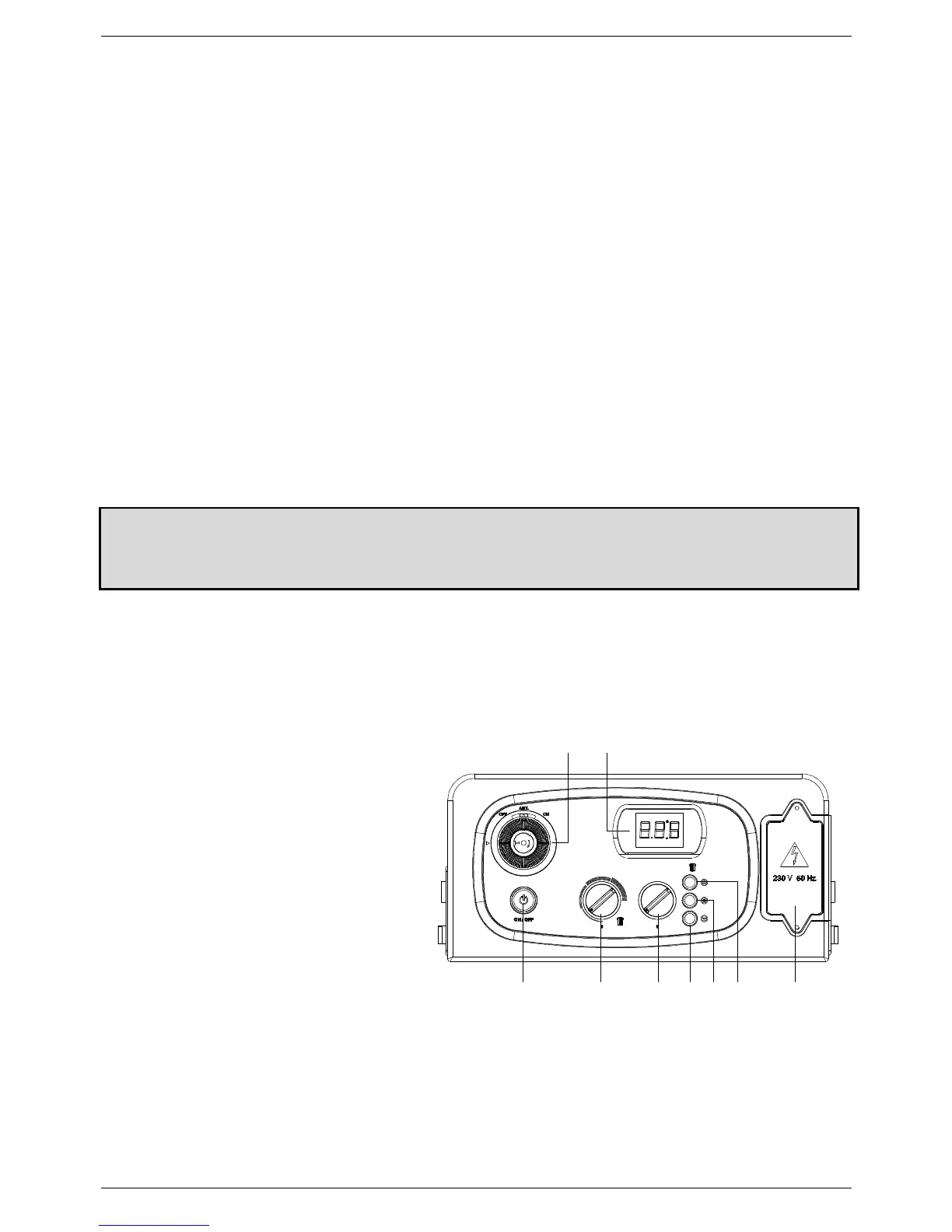

2.6 Control panel
LEGEND
1. ON/OFF BUTTON
2. HEATING TEMPERATURE CONTROL KNOB
3. NOT OPERATIVE KNOB.
4. OUTSIDE TEMPERATURE DISPLAY (ONLY IF
OPTIONAL OUTDOOR SENSOR IS FITTED).
5. SERVICE BUTTON.
6. WINTER MODE SELECTION BUTTON.
7. TERMINAL BOARD FOR EXTERNAL WIRING.
8. TEMPERATURE, ERROR CODE AND
OPERATING STATUS DISPLAY .
9. TIME CLOCK (optional)
7654321
89
