2. Control Panel

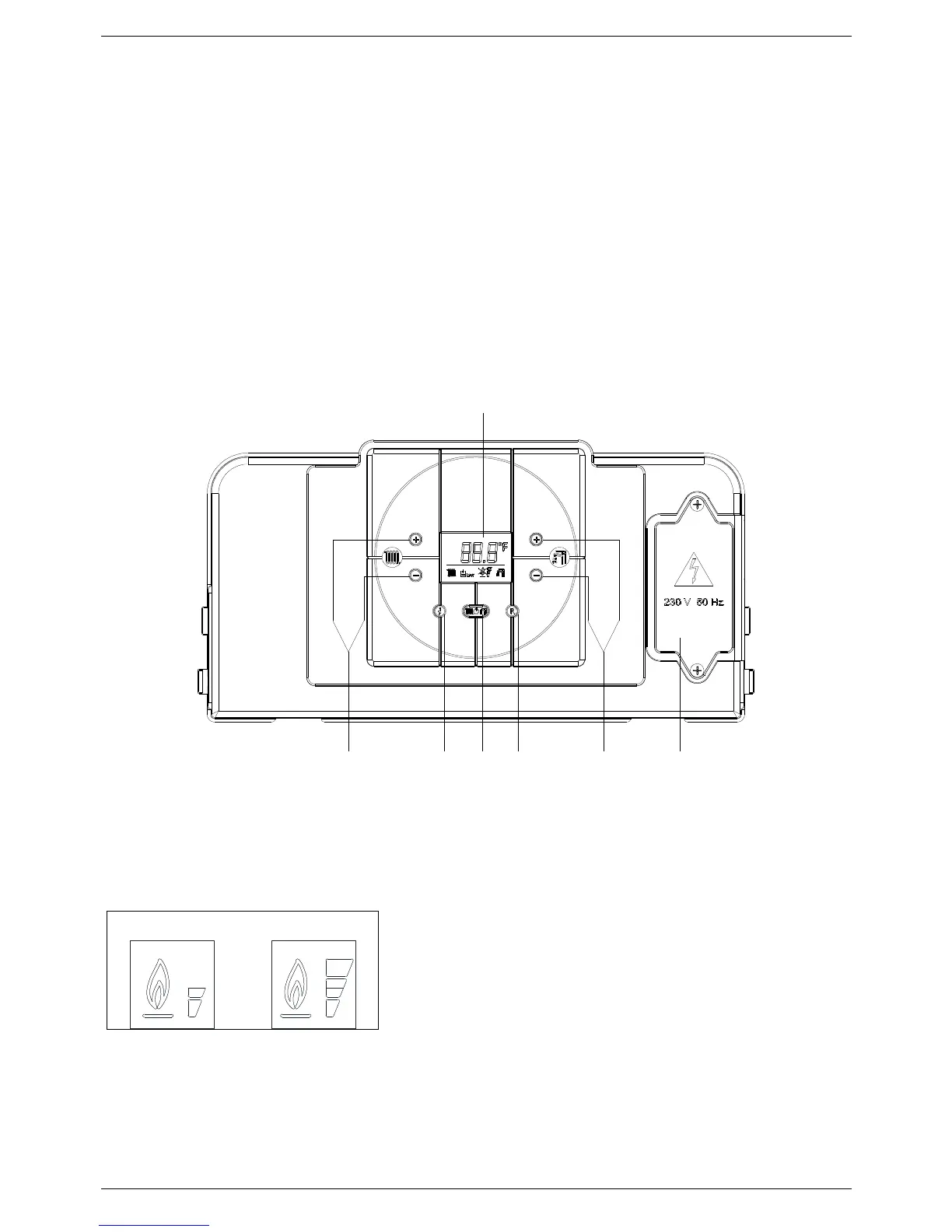

CONTROL PANEL KEY
1. HEATING TEMPERATURE SETTING BUTTONS
2. INFO BUTTON: PRESS ONCE TO DISPLAY TEMPERATURES AND INFO; KEEP IT PRESSED FOR 5
SECONDS (IN OFF MODE) TO DISPLAY THE LAST 5 ERRORS.
3. MODE SELECTION BUTTON: SUMMER ONLY / WINTER ONLY / SUMMER-WINTER / OFF.
4. RESET BUTTON: ERROR RESET – FLUE TEST FUNCTION ACTIVATION (CHIMNEY-SWEEPER - KEEP IT
PRESSED FOR 7 SECONDS).
5. DOMESTIC HOT WATER TEMPERATURE SETTING BUTTONS .
6. TERMINAL BLOCK FOR EXTERNAL WIRING.
7. LCD DISPLAY.
During the boiler operation the display can show 2 different power levels according to the flame
modulation of the boiler (see fig. 2)
50% 100%
Fig. 1
Fig. 2
