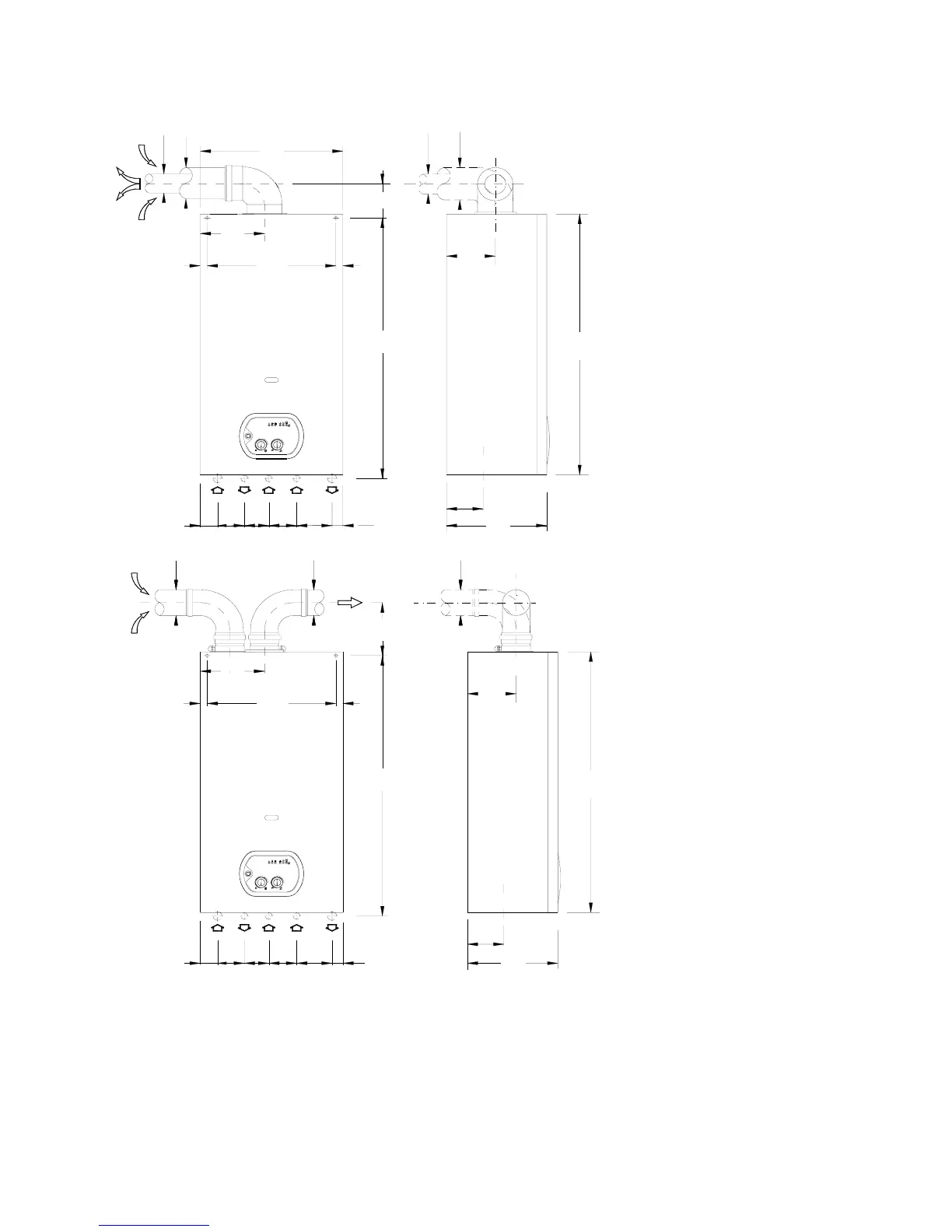

OVERALL DIMENSIONS - EXHAUST FLUE SYSTEM – mod. RSF 20 E
TYPE C WALL-MOUNTED BOILERS
31102807750 70
AF
G
R
C
95770166
ON 40
0.5
706050 80
807060
0.5
50ON 40
800
60
100
140
410
185
20
370
20
60
100
270
800
270
105
80 80
20
370
20
185
80
770
31102807750 70
CRGFA
140
105
SEALED COMBUSTION CIRCUIT:
Kit A
Horizontal coaxial exhaust flue
system with 360° rotation.
It allows the flue exhaust and the
air intake directly to an external
wall.
To insert a bend, reduce total flue
length by 0.8 m.
KEY
R RETURN ¾”
G GAS ½”
C HOT WATER ½”
F COLD WATER ½”
A HEATING FLOW ¾”
Kit B
Double exhaust/emission twin
flue system with 360° rotation.
It allows the flue exhaust into a flue
duct and the air intake directly from
an external wall.
To insert a bend, reduce total flue
length by 1.5 m.
NOTE: USE ORIGINAL RADIANT APPROVED FLUE KIT SYSTEMS, FLUE ACCESSORIES AND FLUE DIAPHRAGMS ONLY.
APPROVED RADIANT FLUE DIAPHRAGMS AND ADJUSTMENT TABLES ARE SUPPLIED WITH RADIANT ORIGINAL FLUE.
DOMESTIC HOT WATER WITH STORAGE CYLINDER – TA05A027.A0504
