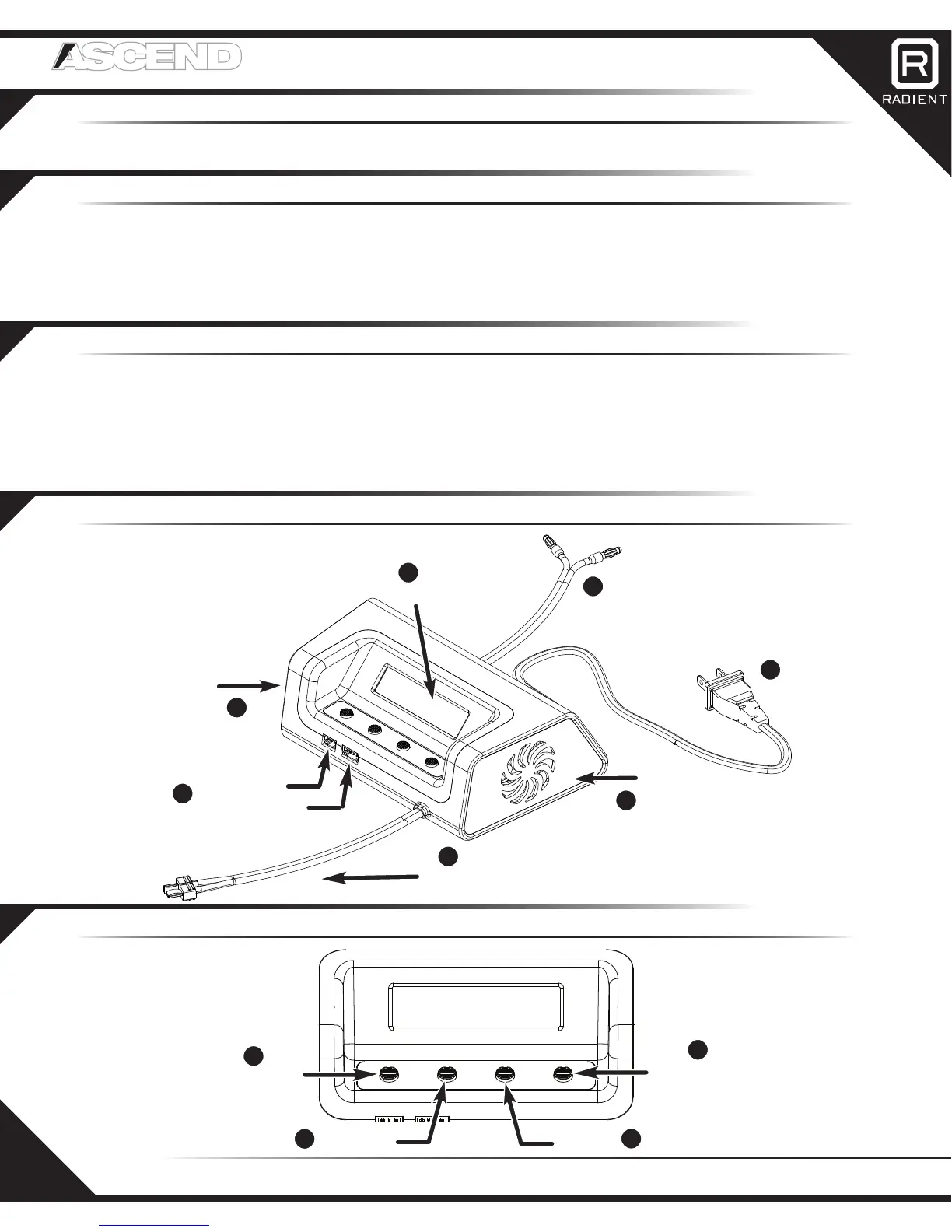

PACKAGE CONTENTS
COMPATIBLE BATTERY TYPES FOR USE WITH YOUR CHARGER
UNBOXING
INTRODUCING THE ASCEND CHARGER
THE CONTROL PANEL
2
MULTI-CHEMISTRY AC/DC PEAK DETECTION BALANCE CHARGER
1. Lithium Iron Phosphate (LiFe/LiFePO
4
/A123)
a. 2 (6.6V) - 3 (9.9V) cells
2. Lithium Ion (Li-Ion)
a. 2( 7.2V) - 3 (10.8V) cells
3. Lithium Polymer (LiPo)
a. 2 (7.4V) - 3 (11.1V) cells
1. Remove the charger from the box
2. Ensure the plug is compatible with your battery.
a. NOTE: There are many different types of battery plugs on the market. If yours does not fit the standard supplied plugs, please visit
your local hobby dealer to purchase the correct adapter.
3. Read charging instructions and understand all warnings and cautions before proceeding.
a. This product is not a toy and should not be charged, operated, or maintained without supervision of an adult.
b. Note: It is necessary to follow all manufacturer’s charging instructions per each battery type.
1. [1] Ascend Charger
2. [1] HCT-Plug to JST-Mini/Micro plug adapter
4. Nickle Cadmium (NiCd)
a. 1 (1.2V) - 8 (9.6V) cells
5. Nickle Metal-Hydride (NiMH)
a. 1 (1.2V) - 8 (9.6V) cells
3. [1] Documentation
BACKLIT LCD DISPLAY
LiPo/Fe JST-XH 2s
Balance Port
LiPo/Fe JST-XH 3s
Balance Port
COOLING FAN
(KEEP CLEAR)
AIR VENT (KEEP
CLEAR)
MAIN CHARGE LEADS
1
3
2
9
8
10
10
Back / Cancel
Scroll Down
Scroll Up
Enter / OK
6
5
4
7
To Next Page
