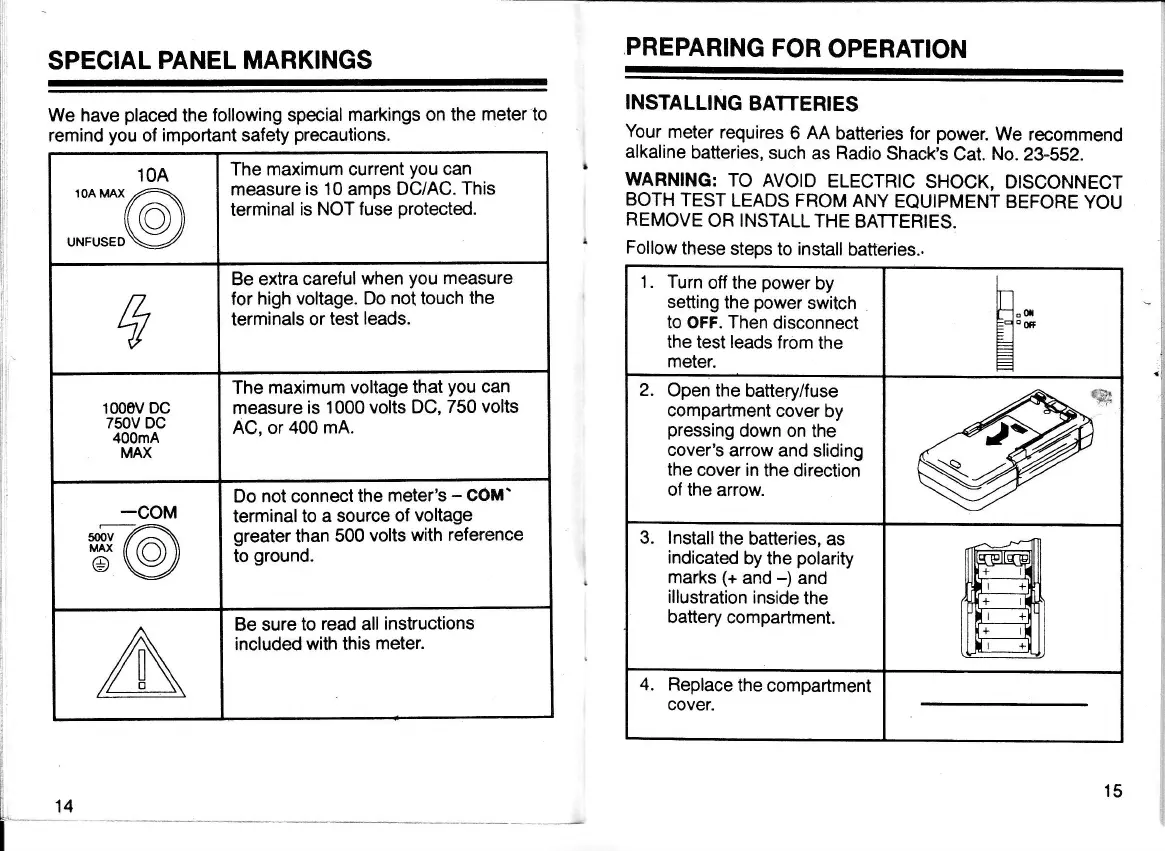

SPECIAL PANEL MARKINGS
PREPARING
FOR
OPERATION
Your
meter
requires
6
AA
batteries for
power.
We recommend
.
alkaline
batteries,
such
as Radio
Shack's
Cat.
No.
2g-552.
WARNING:
TO
AVOID
ELECTRIC
SHOCK, DTSCONNECT
BOTH
TEST
LEADS FROM
ANY
EQUIPMENT
BEFORE
YOU
REMOVE
OR INSTALL
THE
BATTERIES.
'
Follow
these
steps
to
install
batteries..
1. Turn
off the
power
by
setting
the
power
switch
to OFF. Then
disconnect
the
test
leads
from
the
meter.
E"*
EA'ffi
FI
=
Open the
battery/fuse
compartment
cover
by
pressing
down on
the
cover's
arrow and
sliding
the
cover in
the direction
of the arrow.
lnstall
the
batteries,
as
indicated
by the
polarity
marks
(+
and
-)
and
illuskation
inside
the
battery
compartment.
4. Replace
the
compartmenl
cover.
INSTALLING
BATTERIES
We
have
placed
the
following special
markings on the
meter to
remind
you
of important safety
precautions.
10A
1OAMAX,,^.
(o)
UNFUSED\:Z
The maximum current
you
can
measure
is 10
amps
DC/AC.
This
terminal
is NOT fuse
protected.
ry
Be extra
careful
when
you
measure
for
high voltage. Do not touch
the
terminals or
test
leads.
1000v Dc
750V DC
400mA
MAX
The
maximum voltage
that
you
can
measure
is 1000 volts
DC,
750 volts
AC, or 400
mA.
-coM
n@
Do not connect the
meter's
-
cOM'
terminal
to a
source
of voltage
greater
than
500
volts
with reference
to
ground.
Be sure
to
read
all
instructions
included with this
meter.
I
L
t14
I
15
