16
Connecting Your Amplifier

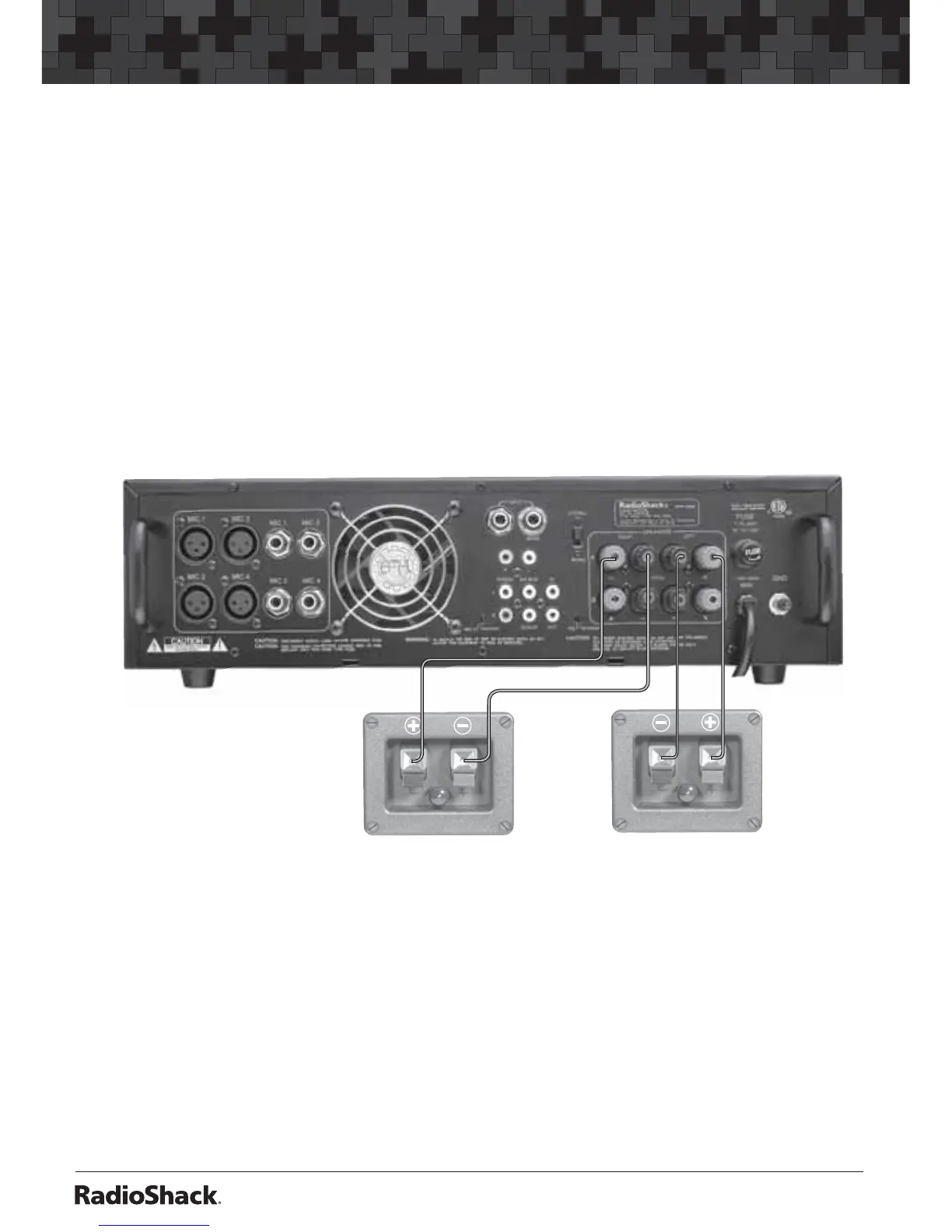

Unbridged Connection
Use this connection if you are connecting more than one speaker on the same
channel or if you do not have high power speakers.
1. Connect the speaker wires to the corresponding left and right positive (+)
and negative (–) speaker terminals.
2. Connect the other end of the left and right speaker’s positive (+) and
negative (–) wires to the amplifier’s corresponding SPEAKER LEFT and
SPEAKER RIGHT terminals for each channel. To connect speaker wires to
the amplifier, turn the knob on the terminal counterclockwise until it stops,
insert the bare wire inside the space between the knob and the amplifier,
and turn the knob clockwise until it stops, securing the wire.
3. Make sure the STEREO/MONO switch is set to STEREO.
Bridged Connection
Use this connection if you have high power speakers that can handle a power
output of 350 Watts.
Note: For a bridged connection, do not connect any speaker wire to the
black SPEAKER terminals.
1. Connect the speaker wires to the speaker’s positive (+) and negative (–)
terminals.
LEFT Speaker
RIGHT Speaker
To Next Page
