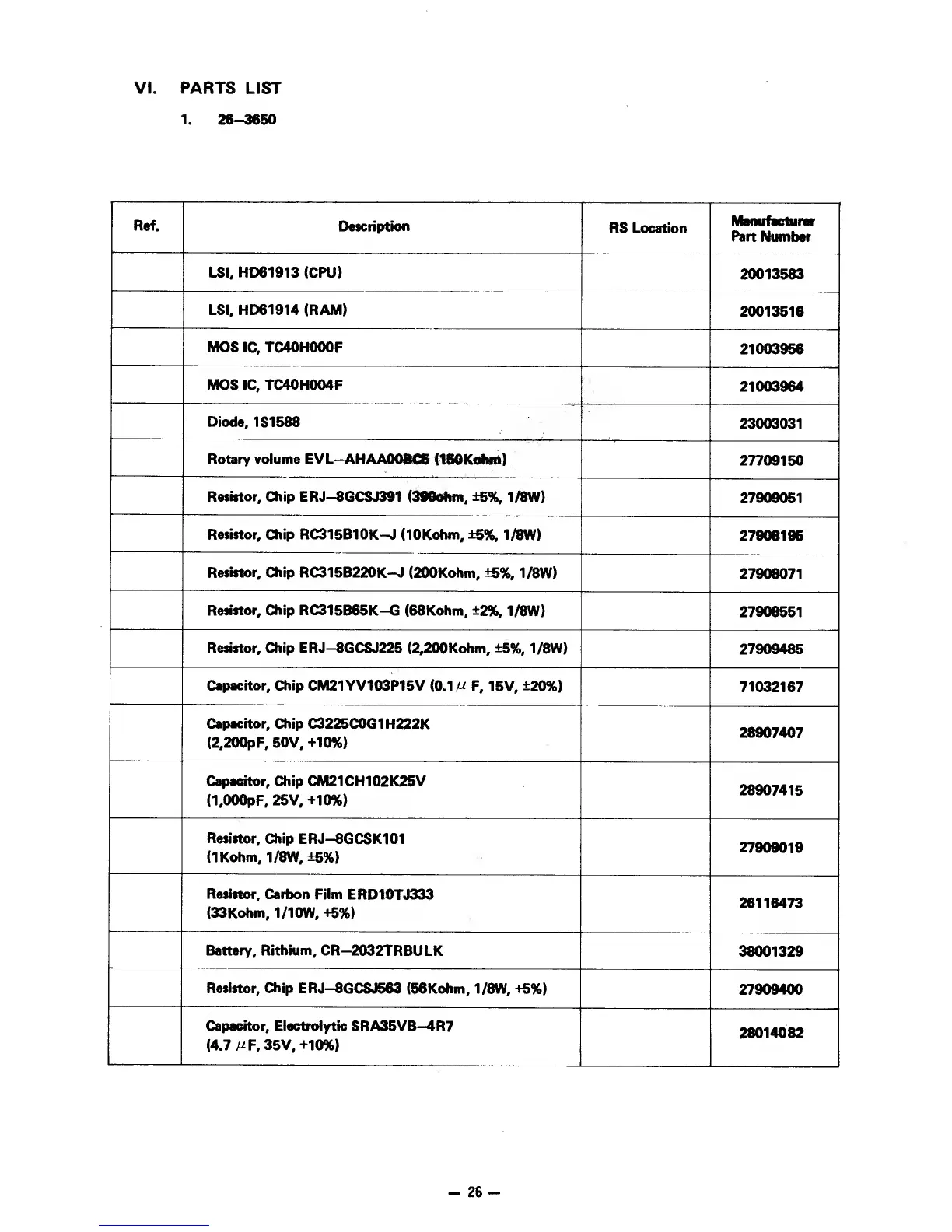

Radio Shack TRS-80 26-3650

VI. PARTS
LIST
1. 26-3650
Ref.
Description
RS
Location
Manufacturer
Part
Number
LSI, HD61913 (CPU)
20013583
LSI, HD61914 (RAM)
20013516
MOS
IC, TC40H000F
21003956
MOS
IC, TC40H004F
21003964
Diode,
1S1588
23003031
Rotary volume
EVL-AHAA00BC6
(160Kohm)
27709150
Resistor, Chip
ERJ-8GCSJ391 (390ohm,
±5%,
1/8W)
27909051
Resistor, Chip RC315B10K-J
(lOKohm,
±5%, 1/8W)
27908195
Resistor, Chip
RC315B220K-J
(200Kohm,
±5%, 1/8W)
27908071
Resistor, Chip RC315B65K-G
(68Kohm,
±2%, 1/8W)
27908551
Resistor, Chip ERJ-8GCSJ225
(2,200
Kohm,
+5%, 1/8W)
27909485
Capacitor, Chip
CM21YV103P15V
(0.1
M
F,
15V, ±20%)
71032167
Capacitor, Chip
C3225C0G1H222K
(2,200pF, 50V,
+10%)
28907407
Capacitor, Chip CM21CH102K25V
(1,000pF,
25V, +10%)
28907415
Resistor,
Chip
ERJ-8GCSK101
(IKohm,
1/8W, ±5%)
27909019
Resistor,
Carbon Film
ERD10TJ333
(33Kohm, 1/10W,
+5%)
26116473
Battery,
Rithium,
CR-2032TRBULK
38001329
Resistor, Chip ERJ-8GCSJ563
(56Kohm,
1/8W, +5%)
27909400
Capacitor,
Electrolytic
SRA35VB-4R7
(4.7 t*F,
35V,
+10%)
28014082
