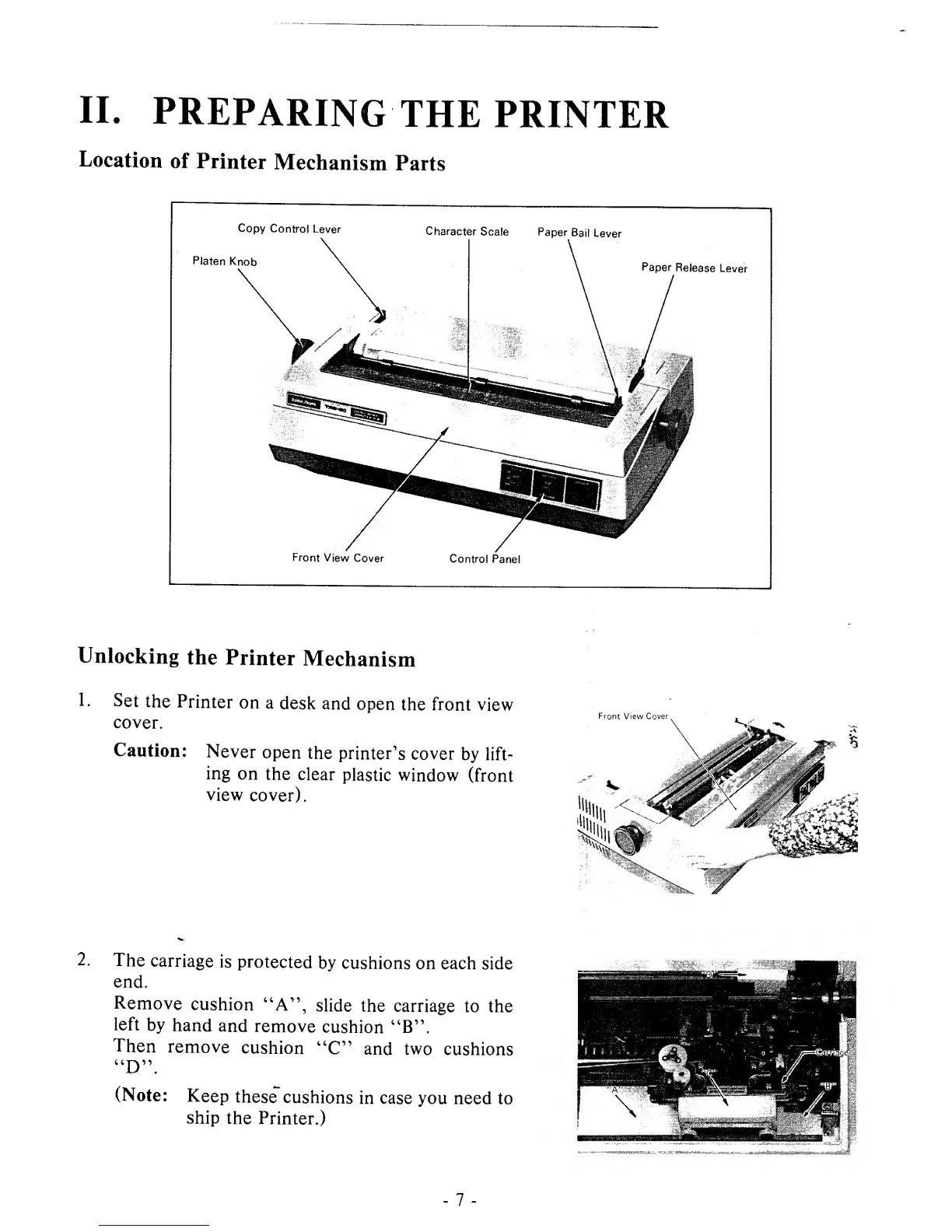

II.
PREPARING
THE
PRINTER
Location
of
Printer
Mechanism
Parts
Copy
Control
Lever
Platen
Knob
Character
Scale
Paper
Bail
Lever
Front
View
Cover
Control
Panel
Paper
Release
Lever
Unlocking
the
Printer
Mechanism
1.
Set
the
Printer
on
a
desk
and
open
the
front
view
cover.
Caution:
Never
open
the
printer's
cover
by lift-
ing
on
the
clear
plastic
window
(front
view
cover).
Front View Cover
The
carriage
is
protected
by cushions
on each
side
end.
Remove
cushion
"A",
slide
the carriage
to the
left
by
hand
and
remove
cushion "B".
Then
remove
cushion
"C"
and
two
cushions
"D".
(Note:
Keep
these
cushions
in
case
you need to
ship
the
Printer.)
