Radio Shack TRS-80 Model III User Manual

OPERATION

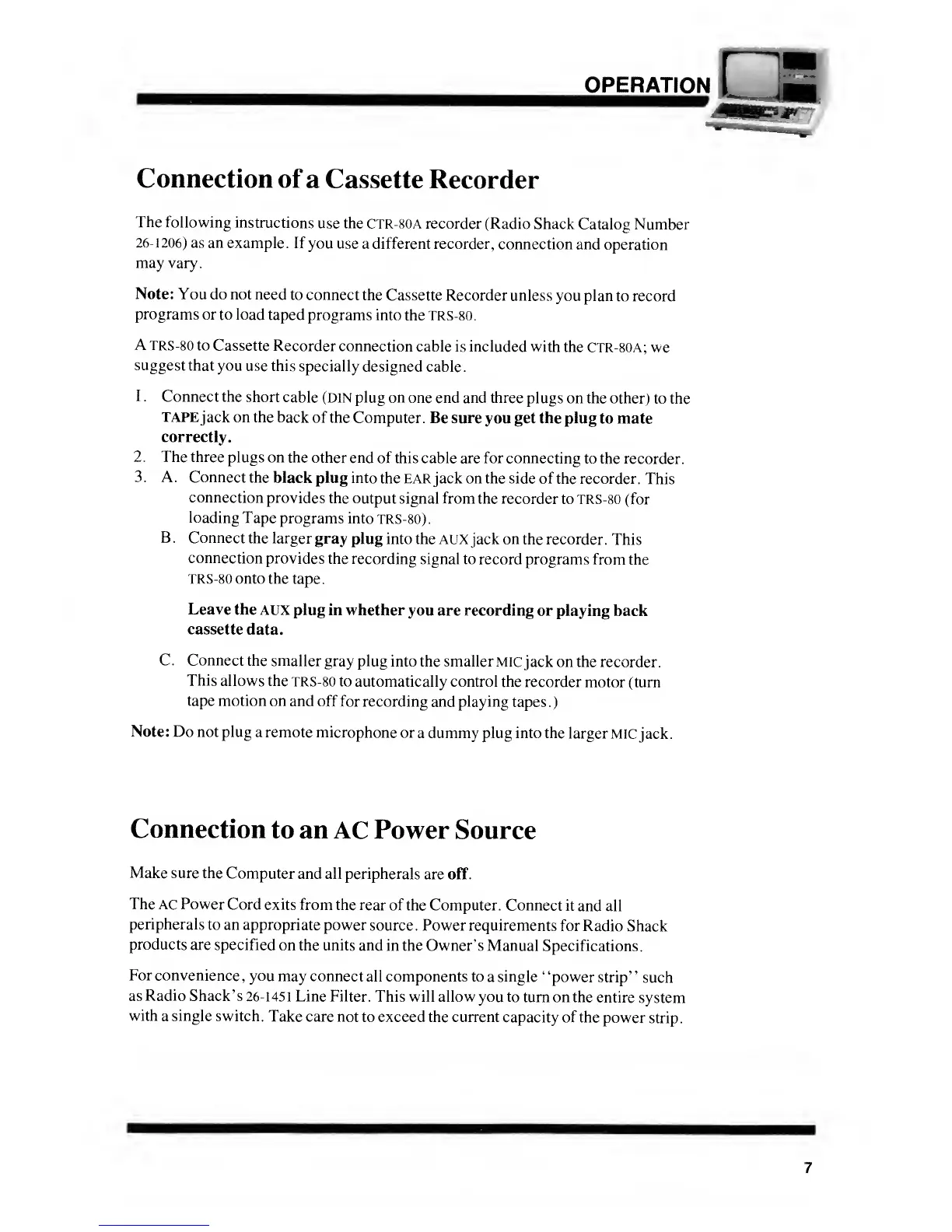

Connection
of
a Cassette
Recorder
The
following
instructions
use the
CTR-80A recorder
(Radio Shack
Catalog Number
26-
1
206)
as an
example
.
If you use
a different recorder,
connection and
operation
may
vary.
Note: You do not need
to connect
the
Cassette Recorder unless
you plan
to record
programs
or to load
taped
programs into
the
TRS-80.
A TRS-80
to
Cassette
Recorder connection
cable is included with
the
CTR-80A; we
suggest
that you
use this
specially designed
cable
.
1
.
Connect the
short
cable (DIN plug on
one end and three
plugs on the other)
to the
TAPE
jack on the back
of the
Computer. Be sure
you get the plug
to mate
correctly.
2. The three
plugs on the
other end
of this cable are for connecting
to the
recorder.
3
.
A
.
Connect
the
black plug into
the ear
j
ack on the side
of the recorder
. This
connection
provides
the output
signal from the recorder
to TRS-80
(for
loading
Tape
programs into
TRS-80).
B
.
Connect
the
larger gray
plug into the AUX
jack
on
the recorder.
This
connection
provides
the recording
signal to
record programs
from the
TRS-80 onto
the tape.
Leave
the AUX
plug in whether
you are recording or
playing back
cassette
data.
C. Connect
the
smaller gray plug
into the smaller
MIC jack on the
recorder.
This
allows the
TRS-80 to
automatically control the
recorder
motor (turn
tape
motion on
and off
for recording and playing
tapes
.
)
Note: Do not plug
a remote microphone
or
a dummy plug into the
larger
MIC jack.
Connection
to an AC Power
Source
Make sure the
Computer
and all peripherals
are off.
The AC Power
Cord exits
from the rear
of the Computer. Connect
it
and all
peripherals
to an appropriate
power
source. Power requirements
for
Radio Shack
products
are specified
on the units and
in the Owner's Manual
Specifications.
For convenience
,
you
may connect
all components to
a
single
"power
strip"
such
as
Radio
Shack's 26-1451
Line Filter.
This will allow you to
turn on the
entire
system
with
a
single
switch.
Take care not
to exceed the current
capacity of the
power
strip.
