Service
Manual

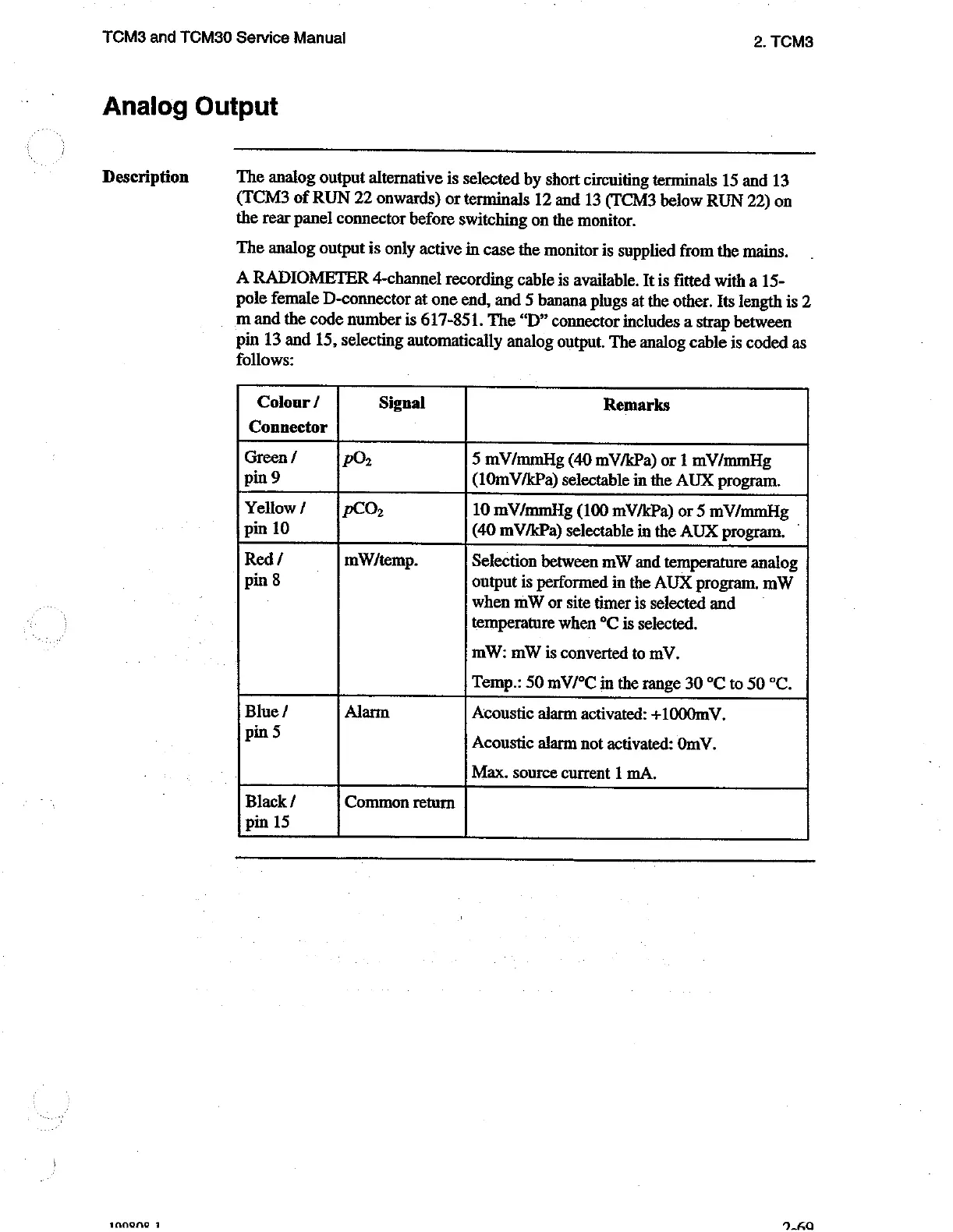

2.
TCM3
Analog
Output
Description
The
analog
output
alternative
is
selected
by
short
circuiting
terminals
15
and
13
(TCM3
of
RUN
22
onwards)
or
terminals
12
and
13
(TCM3
below
RUN
22)
on
the
rear
panel
connector
before
switching
on
the
monitor.
The
analog
output
is
only
active
in
case
the
monitor
is
supplied
from
the
mains.
A
RADIOMETER
4-channel
recording
cable
is
available.
It is
fitted
with
a
15-
pole
female
D-connector
at
one
end,
and
5
banana
plugs
at
the
other.
Its
length
is
2
m
and
the
code
number
is
617-851.
The
“D”
connector
includes
a
strap
between
pin
13
and
15,
selecting
automatically
analog
output.
The
analog
cable
is
coded
as
follows:
Colour
/
Signal
Remarks
Connector
Green
/
pO,
5
mV/mmHg
(40
mV/kPa)
or
1
mV/mmHg
pin
9
(10mV/kPa)
selectable
in
the
AUX
program.
Yellow
/
pco,
10
mV/mmHg
(100
mV/kPa)
or
5
mV/mmHg
pin
10
(40
mV/kPa)
selectable
in
the
AUX
program.
©
Red/
mW/temp.
Selection
between
mW
and
temperature
analog
pin8
output
is
performed
in
the
AUX
program.
mW
when
mW
or
site
timer
is
selected
and
`
temperature
when
°C
is
selected.
mW:
mW
is
converted
to
mV.
Temp.:
50
mV/°C
in
the
range
30
°C
to
50
°C.
Blue
/
Alarm
Acoustic
alarm
activated:
+1000mV,
pin
5
Acoustic
alarm
not
activated:
OmV.
Max.
source
current
1
mA.
Black
/
Common
return
pin
15
annene
1
9.60
