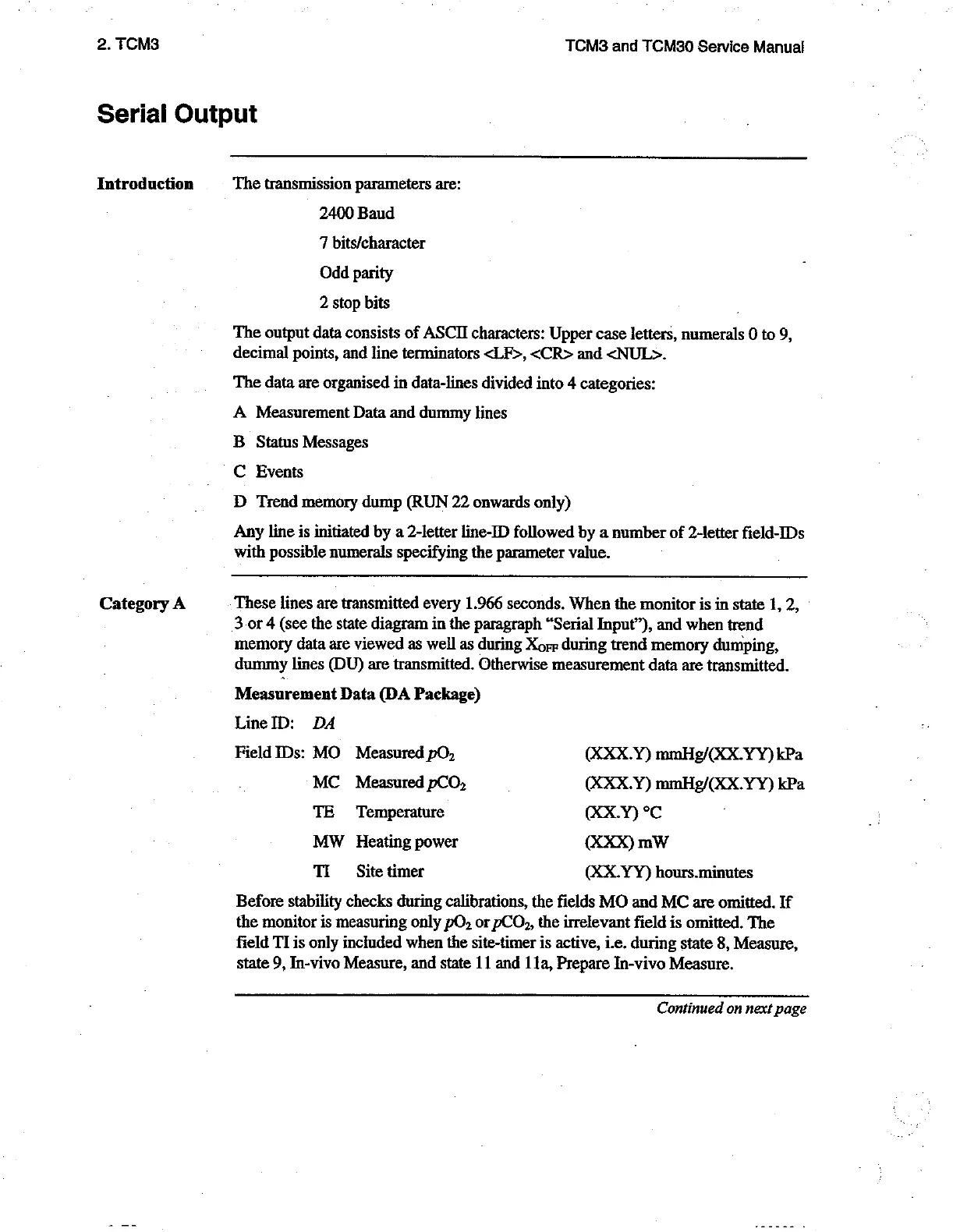

2.
TCM3
TCM3
and
TCM30
Service
Manual
Serial
Output
Introduction
Category
A
The
transmission
parameters
are:
2400
Baud
7
bits/character
Odd
parity
2
stop
bits
The
output
data
consists
of
ASCII
characters:
Upper
case
letters,
numerals
0 to
9,
decimal
points,
and
line
terminators
<LF>,
<CR>
and
<NUL>.
The
data
are
organised
in
data-lines
divided
into
4
categories:
A
Measurement
Data
and
dummy
lines
B
Status
Messages
C
Events
D
Trend
memory
dump
(RUN
22
onwards
only)
Any
line
is
initiated
by
a
2-letter
line-ID
followed
by
a
number
of
2-letter
field-IDs
with
possible
numerals
specifying
the
parameter
value.
These
lines
are
transmitted
every
1.966
seconds.
When
the
monitor
is
in
state
1,
2,
*
3
or
4
(see
the
state
diagram
in
the
paragraph
“Serial
Input”),
and
when
trend
memory
data
are
viewed
as
well
as
during
Xorp
during
trend
memory
dumping,
dummy
lines
(DU)
are
transmitted.
Otherwise
measurement
data
are
transmitted.
Measurement
Data
(DA
Package)
Line
ID:
DA
Field
IDs:
MO
Measured
pO,
(XXX.Y)
mmHg/(XX.YY)
kPa
MC
Measured
pCO,
(KXX.Y)
mmHg/(XX.YY)
kPa
TE
Temperature
(KX.Y)
°C
MW
Heating
power
(XXX)
MW
TI
Site
timer
(XX.
Y
Y)
hours.minutes
Before
stability
checks
during
calibrations,
the
fields
MO
and
MC
are
omitted.
If
the
monitor
is
measuring
only
pO,
or
pCO,,
the
irrelevant
field
is
omitted.
The
field
TI
is
only
included
when
the
site-timer
is
active,
i.e.
during
state
8,
Measure,
State
9,
In-vivo
Measure,
and
state
11
and
11a,
Prepare
In-vivo
Measure.
Continued
on
next
page
