3.5mm/2.5mm Output Modes PDF Link
※

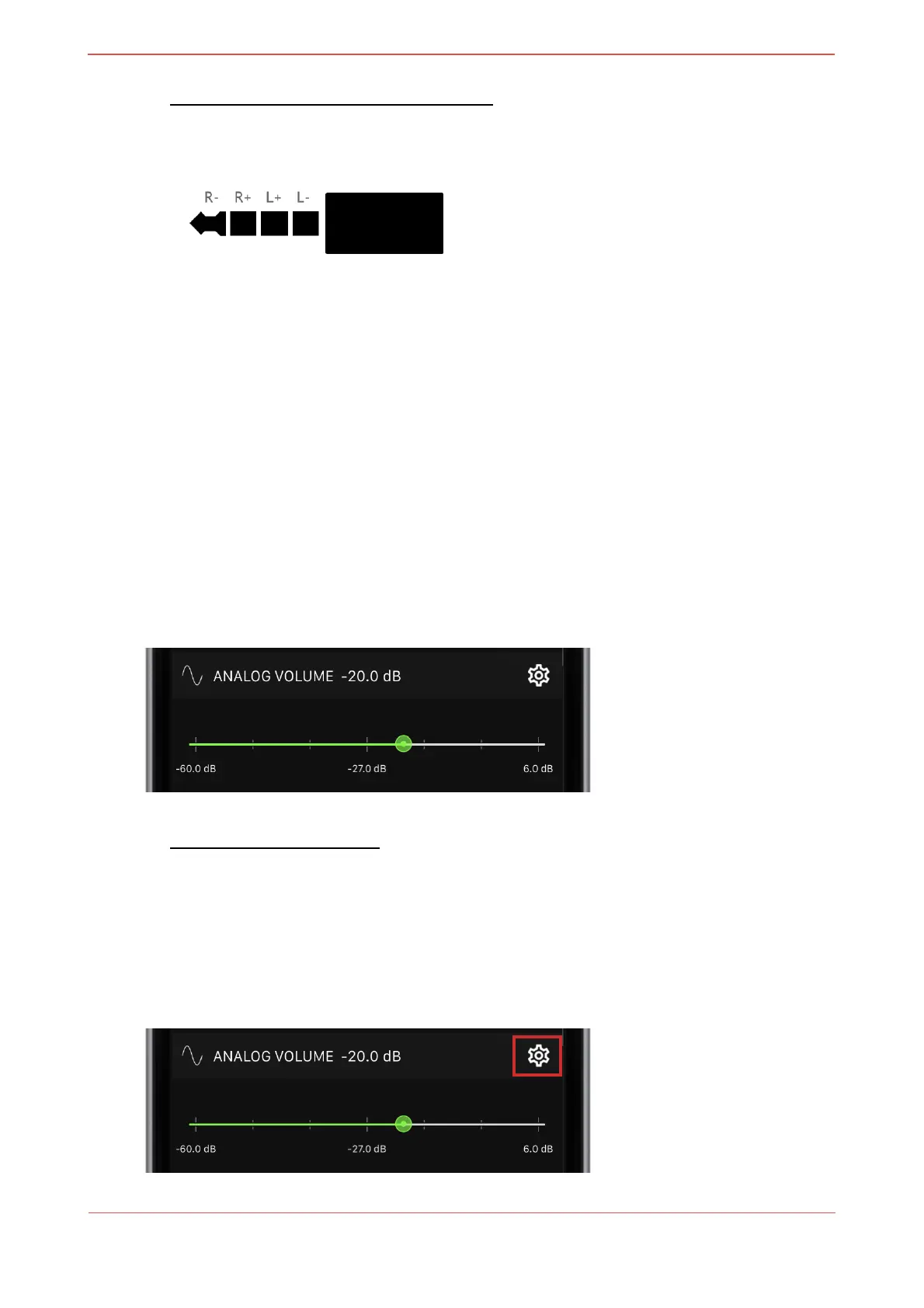

2.5mm Pin-out Configuration
Pin-out Configuration for the 2.5mm Full-differential Port: R- / R+ / L+ / L-,
starting from the tip of the jack as shown above.
※
WARNING
ES100 2.5mm Balanced Output can be interfaced only with the balanced input.
- Do NOT connect ES100 2.5mm Balanced Output to any aux-in port or RCA input,
which is unbalanced.
- Do NOT connect your 3.5mm single-ended cable to ES100 2.5mm Balanced
Output.
Both of connections above would short L- and R- amplifier output of ES100 and
eventually, damage the amplifier.
•
Analog Volume
-
Volume Control PDF Link
-
EarStudio’s Hardware Volume
-
Able to set the volume during a call and during music play separately.
Audio volume during a call can be controlled only during a call.
•
Device Volume Control
