3.2. Gasoline must be mixed with two stroke oil in a clean container in the ratio 25:1. (25
parts petrol to 1 part two-stroke oil). Stir mixture before merge in the tank of the brush cutter.
3.3. Check the air lter. Polluted air lter will restrict the entry of air into the carburettor.
To prevent failures in the carburettor, do not forget to clean the air lter periodically. Check
the lter to see if it is not too polluted and clean it if necessary. Do not run engine without air
lter as this can lead to rapid wear of the engine if dirt or dust is sucked into the carburettor.
3.4. Connect the engine to the pipe with the help of four screws.

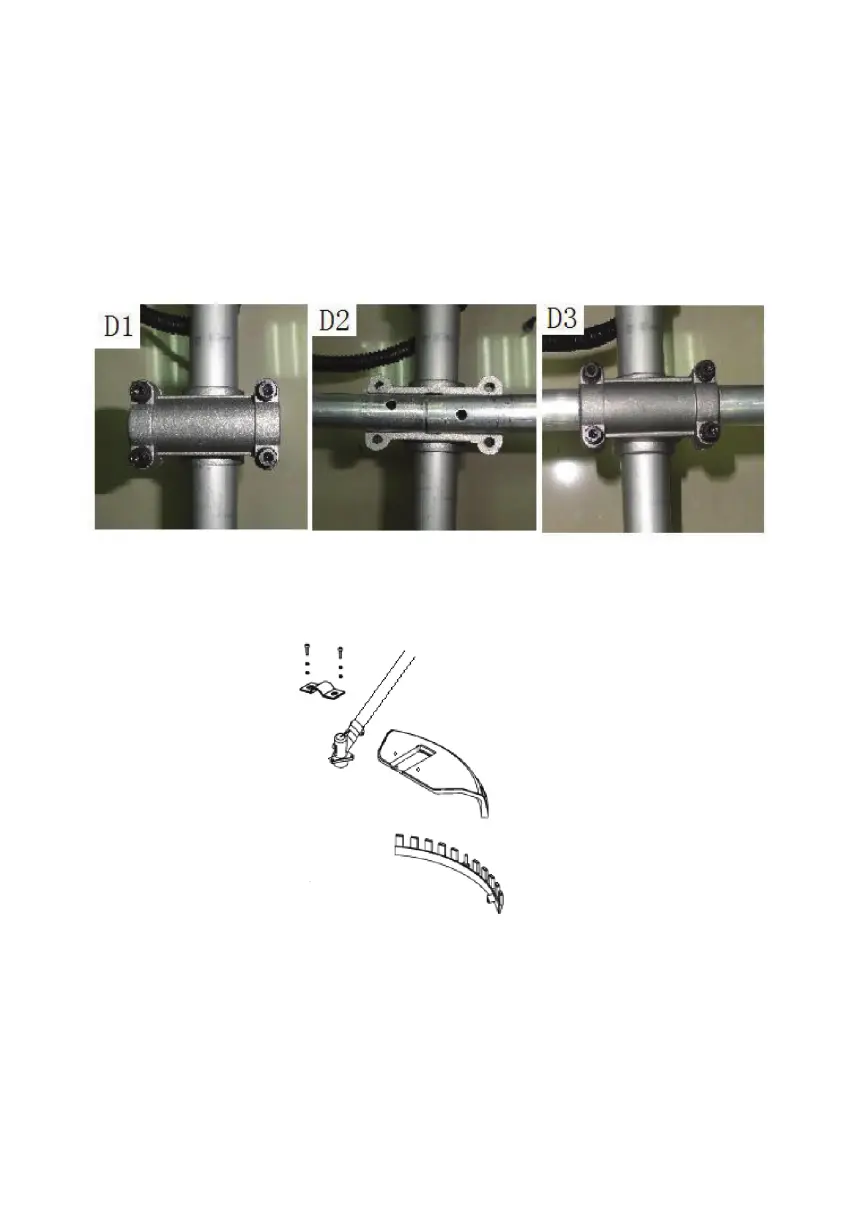

3.5. Connect handles to the pipe. Assemble handle. Adjust the height and tighten the
screws.
3.6. Install the cutting attachment guard.
3.7. Fitting a grass blade and trimmer head.
When you installation of the cutting equipment, is crucial to supporting ange fall right into
the central hole of the cutting equipment. Cutting equipment installed incorrectly can cause
serious and / or dangerous injuries.
3.8. Fitting a grass blade.
Fit the drive disc on the output shaft. Turn the blade shaft until one of the holes in the drive
disc aligns with the corresponding hole in the gear housing. Insert the locking pin in the hole
to lock the shaft. Place the blade, support cup and support ange on the output shaft. Fit the
nut. The nut must be tightened to a torque of 35-50 Nm. Use the socket spanner in the tool kit.
Hold the shaft of the spanner as close to the blade guard as possible. To tighten the nut, turn
